Shure BLX14/CVL Wireless Cardioid Lavalier Microphone System H11: 572-596MHz

SKU: SHLX14CVLH11 MFR: BLX14/CVL-H11
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: The cardioid lavalier microphone minimizes background noise for pristine sound.
  • Wireless freedom: Enjoy up to 300 feet of range with this reliable wireless microphone system.
  • Long-lasting battery: Get up to 14 hours of continuous use with the included AA batteries.
  • Easy setup: This wireless lavalier microphone system is ready to use right out of the box, simple setup.
  • Perfect for presentations: Ideal wireless microphone for public speaking, lectures, and interviews.
  • Durable and discreet: The robust bodypack transmitter and lavalier mic are built for daily use.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency range of the Shure BLX14/CVL Wireless Presenter System?

The Shure BLX14/CVL Wireless Presenter System operates within the H11 frequency range of 572-596 MHz.

What is included in the Shure BLX14/CVL Wireless Presenter System package?

The package includes the BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.

What is the purpose of the two-color audio status indicator LED on the BLX4 wireless receiver?

The two-color audio status indicator LED provides visual feedback on the audio levels. Green indicates normal audio levels, while red signals excessive levels that may cause overload or clipping.

What features does the CVL Centraverse Lavalier Condenser Microphone offer?

The CVL microphone is designed for low visibility and superior sound quality. It features a permanently charged electret condenser element for clear vocal reproduction, a unidirectional pickup pattern to reject unwanted noise, and a tailored frequency response optimized for spoken presentations.

What is the function of the PS24US Power Supply?

The PS24US Power Supply is designed to provide power to the BLX4, BLX88, and BLX4R receivers. It adheres to energy-efficient standards and features built-in mounting tabs for easy installation.

Reviews about this item

Review Summary

Shure BLX14/CVL Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    123

  • Included Transmitters

    1x Bodypack

  • Diversity

    Yes

  • Available RF Frequency Bands

    H10: 542 - 572MHz
    H9: 512 - 542MHz
    H11: 572 - 596MHz
    J11: 596 - 616MHz

  • RF Bandwidth

    24 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Transmitters per Band

    12

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Dynamic Range

    100 dBA

  • Encryption

    No

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Tabletop (with Included Hardware)

  • Antenna

    2x Fixed Internal

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    XLR Output:
    -27 dBV (Mic Level)

    1/4" Output:
    -13 dBV (Instrument Level)

  • Frequency Response

    50 Hz to 15 kHz (Dependent on Mic)

  • USB Class-Compliant

    No USB Connectivity

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 to 15 VDC at 160 mA, Center-Positive (Included)

  • DC Input Power

    12 to 15 VDC at 160mA

  • Display & Indicators

    1x Multi-Segment LED (Channel, Group)
    2x LED (AF Level, Sync)

  • Housing

    ABS

  • Dimensions

    7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm

  • Weight

    8.5 oz / 241 g

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW

  • Audio I/O

    1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Muting

    Off/On Switch

  • Auto-Level/Gain

    No

  • Gain Range

    -16 to +10 dB

  • Sync Method

    Manual

  • Antenna

    1x Fixed Flexible Whip (Beltpack)

  • Power Requirements

    Battery

  • Battery

    2x AA (Included)

  • Transmitter Battery Life

    14 Hours (Alkaline)

  • Display & Indicators

    1x Multi-Segment LED (Channel, Group)
    1x LED (Battery Status, Power)

  • Housing

    ABS

  • Dimensions

    2.5 x 4.3 x 0.8" (64 x 110 x 21mm)

  • Weight

    Without Batteries: 2.6 oz (75g)

Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 20 kHz

  • SNR

    72 dB

  • Maximum SPL

    139 dB SPL

  • Dynamic Range

    117 dB

  • Output Connector

    1x TA4F/Mini-XLR 4-Pin Female (Locking)

  • Cable Length

    4.27' (1.3m)

  • Operating Voltage

    5 V

  • Weight

    0.88 oz (25g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • UPC Code

    042406470414

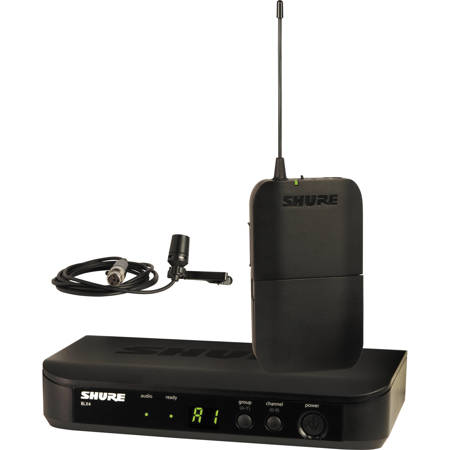

About Shure BLX14/CVL

- BLX4 Single-Channel Wireless Tabletop Receiver -
Analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.

The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.


- BLX1 Wireless Bodypack Transmitter -
Analog wireless bodypack BLX1 for use as part of BLX and BLX-R Analog Wireless Systems. The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.


- CVL Centraverse Cardioid Lavalier Microphone -
Lavalier cardioid microphone provides superior source quality and vocal reproduction. It features construction for low visibility and a tailored frequency response for speaking and presentations.

What is the CVL Condenser Lavalier Microphone best suited to?
Precision-engineered for years of use in any Shure wireless systems, its compact size is ideal for presenting situations where visibility is a major concern. The unidirectional (cardioid) pickup pattern rejects unwanted sound for superior source quality and vocal reproduction.

The Centraverse Lavalier (CVL) offers convenience and performance in an easy-to-use clip-on cardioid condenser microphone that features simple, no-nonsense setup made for presenting professionals.


- PS24 Power Supply -
12V DC in-line power supply adheres to energy-efficient standards and features 2 built-in mounting tabs for easy installation.

Shure BLX14/CVL Features

  • High-quality Shure BLX14/CVL Wireless Presenter System with analog transmission for clear audio
  • Includes BLX4 wireless receiver with QuickScan frequency selection for optimal performance
  • Lightweight BLX1 bodypack transmitter with adjustable gain control for user comfort
  • CVL Centraverse Lavalier Condenser Microphone designed for superior sound quality & low visibility
  • System components feature Shure's legendary precision engineering for durability and performance
  • Energy-efficient PS24US Power Supply included for the BLX4, BLX88, and BLX4R receivers

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The cardioid lavalier microphone minimizes background noise for pristine sound.
  • Wireless freedom: Enjoy up to 300 feet of range with this reliable wireless microphone system.
  • Long-lasting battery: Get up to 14 hours of continuous use with the included AA batteries.
  • Easy setup: This wireless lavalier microphone system is ready to use right out of the box, simple setup.
  • Perfect for presentations: Ideal wireless microphone for public speaking, lectures, and interviews.
  • Durable and discreet: The robust bodypack transmitter and lavalier mic are built for daily use.

What's in the box:

  • BLX4 Tabletop Wireless Receiver
  • BLX1 Wireless Bodypack Transmitter
  • CVL Centraverse Cardioid Lavalier Microphone
  • PS24US Power Supply
  • Tie Clip and Windscreen
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
