Shure ULXS124/85-G3 Wireless Combo Microphone System - G3/470-505 MHz

SKU: SHLXS12485G3

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure ULXS124/85-G3 Specifications

  • RF Carrier Frequency Range

    G3/470-505 MHz

  • Approx. Working Range

    300 Feet (100m)

  • Overall Frequency Response

    25Hz - 15kHz, (+/-2dB)

  • Signal-to-Noise Ratio

    Greater Than 90dB

  • No of Channels

    Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)

  • No of Simultaneous Systems

    Up to 20

  • Receiver: Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
    Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    14 - 18VDC (negative ground), 550mA
    External Power Supply - PS40, Included, Now with Locking DC Connector!

  • Receiver: Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.

  • Receiver: Mounting Options

    Rack / Table Top Mount 1/2 Rack Space

  • Receiver: Antenna Type

    Internal

  • Bodypack Transmitter: Input Connector

    TAF4 4-Pin Mini Connector

  • Bodypack Transmitter: Type of Microphone

    WL-185 Condenser Lavalier

  • Bodypack Transmitter: Polar Pattern

    Cardioid

  • Bodypack Transmitter: Mic Heads

    Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector

  • Bodypack Transmitter: Battery Type/Life

    Non-Rechargeable Type
    9V Lithium Battery / 21 Hours (Recommended)
    9V Alkaline Battery / 8 - 9 Hours (Recommended)
    9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
    Rechargeable Type
    9V Ni-Cad Battery / 2 Hours (NOT Recommended)
    9V Ni-MH Battery / 2.5 Hours (NOT Recommended)

  • Bodypack Transmitter: Mute Switch

    Yes

  • Bodypack Transmitter: Level Control

    Yes, 25dB Gain Adjustment Range

  • Bodypack Transmitter: Antenna Type

    Remotable 1/2 Wave, Rear Mounted

  • Bodypack Transmitter: Display

    Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)

  • Handheld Transmitter: Input Connector

    Microphone Element is Attached (Screwed On) to Transmitter

  • Handheld Transmitter: Microphone

    SM58 Dynamic Microphone Head

  • Handheld Transmitter: Polar Pattern

    Cardioid

  • Handheld Transmitter: Mic Heads

    No

  • Handheld Transmitter: Battery Type/Life

    Non-Rechargeable Type
    9V Lithium Battery / 21 Hours (Recommended)
    9V Alkaline Battery / 8 - 9 Hours (Recommended)
    9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
    Rechargeable Type
    9V Ni-Cad Battery / 2 Hours (NOT Recommended)
    9V Ni-MH Battery / 2.5 Hours (NOT Recommended)

  • Handheld Transmitter: Mute Switch

    Yes

  • Handheld Transmitter: Level Control

    Yes, 25dB Gain Adjustment Range

  • Handheld Transmitter: Antenna Type

    Wire Type

  • Handheld Transmitter: Display

    Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)

  • Dimensions (H x W x D)

    Receiver: 1.72 x 8.56 x 6.62" (43.6 x 217.4 x 168.1mm)

  • Weight

    Receiver: 2.8 oz. (79.3 g) without Battery
    Bodypack Transmitter: 10.4 oz. (294.8 g)
    Handheld Transmitter: 37 oz. (1049 g)

  • UPC Code

    042406147743

About Shure ULXS124/85-G3

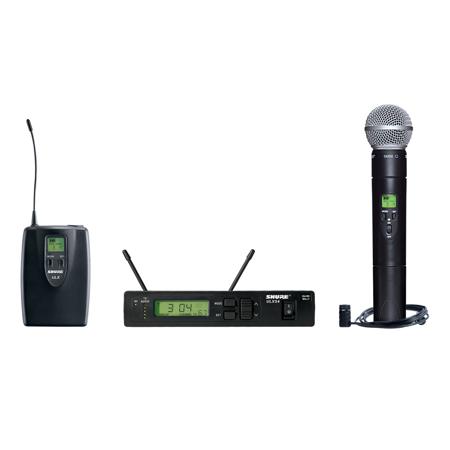

The Shure ULXS124/85-G3 wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This combo-system includes the ULXS4 diversity receiver, ULX1 bodypack transmitter, WL185 Lavalier Microphone and ULX2 handheld transmitter with a Shure SM58 cardioid head.

The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LED's provide audio and RF metering.

The ULX1 bodypack transmitter is lightweight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0dB and 20dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery.

The ULX-2 handheld transmitter features the Shure SM58 cardioid capsule. The ULX-2 provides 1,400 user selectable frequencies. A comprehensive LCD display provides channel and frequency information, battery life and more. The cardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9V alkaline battery (included).

The WL185 lavalier microphone features cardioid pick up pattern which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 features a 50-17000Hz frequency response making it suitable for a wide variety of applications.

Key Features

  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Mic/Line switch
  • Detachable 1/4-wave antenna

What's in the box:

  • Shure ULXS4 Receiver
  • ULX1 Bodypack Transmitter with WL185 Lavalier
  • ULX2 Handheld Transmitter with SM58 Capsule
  • Microphone Stand Adapter (WA371)
  • Grip/Switch Cover (WA555)
  • Zippered Transmitter Carry Bag for ULX2/58 (26A14)
  • Zippered Transmitter Carry Bag for ULX-1 (26A13)
  • Small Adjustment Screwdriver (80A498)
  • (2) PS40 Power Supplies
  • Shure USA Warranty
