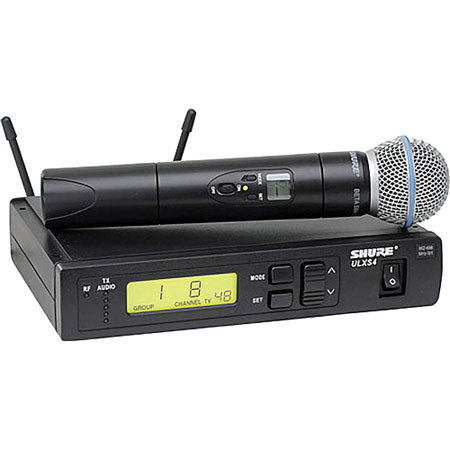

Shure ULXS24/BETA58-J1 Wireless Handheld Microphone System with ULXS4 Diversity Receiver, ULX2 Handheld Transmitter with Beta 58 Capsule - J1 Frequency 554-590MHz

SKU: SHLXS24B58J1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure ULXS24/BETA58-J1 Specifications

  • Type of System

    Rack/Table Top Mountable UHF Diversity Wireless Handheld System

  • RF Carrier Frequency Range

    J1 / 554 - 590 MHz

  • Approx. Working Range

    300' (100 m)

  • Overall Frequency Response

    25Hz - 15kHz, (+/-2dB)

  • Signal-to-Noise Ratio

    Greater Than 90dB

  • No. Of Channels

    Over 1400 User Selectable Frequencies

  • No. Of Simultaneous Systems

    Up to 20

  • Type of Receiver

    ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver

  • Receiver: Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd (Both Outputs Feature: Voltage, Current and Phantom Power Protection)

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    14 - 18VDC (negative ground), 550 mA
    External Power Supply - PS40, Included

  • Receiver: Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning

  • Receiver: Mounting Options

    Rack / Table Top Mount 1/2 Rack Space

  • Receiver: Antenna Type

    Internal

  • ULX2 Transmitter: Input Connector

    Microphone Element is Attached (Screwed On) to Transmitter

  • ULX2 Transmitter: Type of Microphone

    BETA58 Dynamic Microphone Head

  • ULX2 Transmitter: Polar Pattern

    Supercardioid

  • ULX2 Transmitter: Interchangeable Heads

    No

  • ULX2 Transmitter: Battery Life

    9V Lithium Battery / 21 Hours (Recommended)
    9V Alkaline Battery / 8 - 9 Hours (Recommended)

  • ULX2 Transmitter: Mute Switch

    Yes

  • ULX2 Transmitter: Level Control

    Yes, 25dB Gain Adjustment Range

  • ULX2 Transmitter: Antenna Type

    Removable 1/2 Wave, Rear Mounted

  • ULX2 Transmitter: Display

    Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)

  • Dimensions

    Receiver (HxWxD): 1.72 x 8.56 x 6.52" (43 x 217 x 165mm)
    ULX2 Transmitter (L x Dia): 9.49 x 2.01" (241 x 51mm)

  • Weight

    Receiver: 10.4 oz (294g)
    ULX2 Transmitter: 2 lbs 7 oz (1.11kg)

About Shure ULXS24/BETA58-J1

The Shure ULXS24/BETA58-J1 Dual Wireless Handheld Microphone System provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. The system includes the ULXS4 diversity receiver and ULX2 handheld transmitter with Beta 58 microphone head.

The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LED's provide audio and RF metering.

The ULX-2 handheld transmitter features the Shure Beta 58 supercardioid capsule. The Beta series microphones provide higher input gain, resulting in a lower noise floor. The ULX-2 provides 1400 user selectable frequencies; a comprehensive LCD display provides channel and frequency information, battery life and more. The supercardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9V alkaline battery (included).

Shure ULXS24/BETA58-J1 Features

  • Beta 58 supercardioid capsule
  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4-inch output
  • Rugged plastic chassis
  • 1/2 rack design

Key Features

  • Beta 58 supercardioid capsule
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Mic/Line switch

What's in the box:

  • Shure ULXS4 Diversity Receiver
  • ULX2 Handheld Transmitter
  • Beta 58 Microphone Capsule
  • PS40 Power Supply
  • 9V Alkaline Battery
  • Shure Warranty
