Shape Mini Quick Release Monitor Mount For Magic Arm

Make your on-board monitor setup more versatile and secure with our Mini Quick Release Monitor Mount for Magic Arm. This high-quality accessory, meticulously crafted in Canada from CNC machined aluminum, is designed to hold and manipulate your monitor with ease and precision.

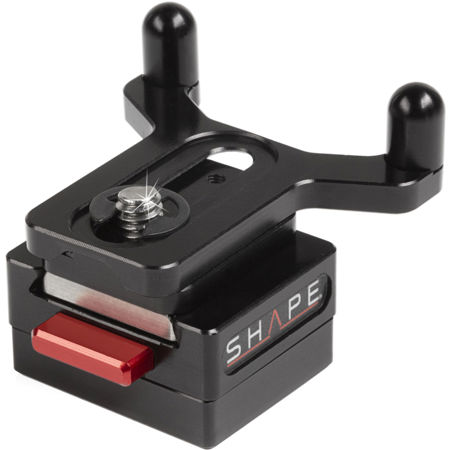

The heart of this mount is the Mini Delta Monitor Plate (MILTA), which is ingeniously designed with a Mini Delta Plate and a sliding bracket. This bracket features two anti-rotating support pins, ensuring your monitor stays firmly in place. The Mini Delta Plate, measuring 28mm x 24mm, can be installed in either direction on the bracket, offering flexibility in positioning the support pins either in the front or back of the monitor.

The two anti-rotating support pins, each 11mm in height and 8mm in diameter, are specifically designed to keep your monitor securely positioned. Attach your monitor to the bracket using the included 1/4-20 captive screw and utilize the sliding feature to rest your monitor onto the anti-rotating stoppers. The sliding plate can be adjusted to accommodate different monitor thicknesses, ensuring a snug fit.

The sliding distance between the center of the captive screw and the two anti-rotating stoppers ranges from 12mm to 35mm, providing a generous 23mm of adjustment freedom to perfectly align your monitor with the stoppers.

The Mini Quick Release Lock Station, compatible with our Mini Delta Monitor Plate (MILTA, MNQR), features a V-mount design. The easily accessible red quick release button is designed to prevent accidental monitor or accessory release. The Lock Station is also equipped with one 1/4-20 and one 3/8-16 threaded holes with two stoppers, compatible with ARRI locking attachment mechanisms, ensuring a robust mount to your rig.

In summary, our Mini Quick Release Monitor Mount for Magic Arm offers a reliable, versatile, and secure solution for your on-board monitor setup needs.
