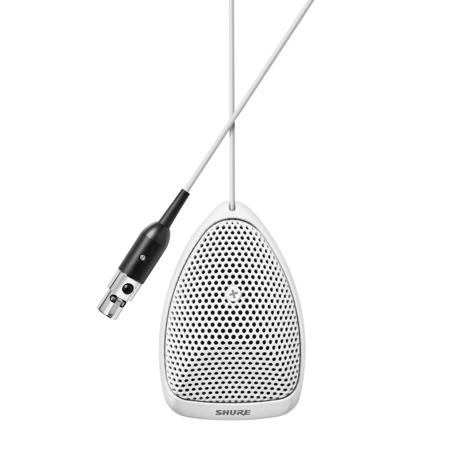

Shure MX391W/S Supercardioid Condenser Boundary Microphone, White
See all Shure items

Shure MX391W/S Supercardioid Condenser Boundary Microphone, 50 to 17,000 Hz Frequency Response, White

SKU: SHMX391WS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DANN L : Because its the very same one we have

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure MX391W/S Specifications

  • Transducer

    Condenser

  • Polar Pattern

    Supercardioid

  • Frequency Response

    50 Hz to 17 kHz

  • Output Impedance (at 1000 Hz)

    180 ohms actual (rated at 150 ohms)

  • Open Circuit Sensitivity

    -28.3 dB (38.5 mV)

  • Maximum Sound Pressure Level

    117.5 dB(1 kHz at 1% Total Harmonic Distortion, 1 k ohm load)

  • Signal to Noise Ratio

    72.7 dB (referenced at 94 dB SPL)

  • Environmental Requirements

    Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
    Relative Humidity: 0 to 95%

  • Equivalent Output Noise

    21.3 dB SPL (A-weighted)

  • Dynamic Range at 1 k ohm Load

    96.2 dB
    100 dB at 0 gain

  • Common Mode Rejection

    45 dB minimum, 10 Hz to 100 kHz

  • Preamplifier Output Clipping Level

    -6 dBV (0.5 V)
    12 dB at 0 gain

  • Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the preamplifier XLR output connector

  • Power Requirements

    11 to 52 Vdc phantom
    2.0 mA current consumption

  • Dimensions( L x W x H)

    3.126 x 2.088 x 0.750" (7.940 x 5.304 x 1.905cm)

  • Weight

    Microphone: 4.16 oz. (117.9 g)
    RK183PK Pre-Amplifier: 3.21 oz. (91 g)

  • UPC Code

    42406051415

About Shure MX391W/S

The Shure MX391W/S is a supercardioid miniature white condenser boundary microphone with an in-line preamp, a 12 ft (4 m) attached cable that terminates to a 4-pin mini connector. It is equipped with features like programmable, silent membrane switches, logic inputs and outputs and LED indicators. It is a high-quality solution for a range of applications such as altars, boardrooms and distance learning centers.

Shure MX391W/S Features

  • Flat frequency response across the vocal range for uncolored sound
  • Sleek, low-profile design for unobtrusive appearance
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Programmable on/off switch and LED on/off indicator (MX392/MX393 models only)
  • LED logic input and switch logic output terminals for remote control or use with automatic mixers (MX392 models only)

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Flat frequency response across the vocal range
  • Sleek, low-profile design for unobtrusive appearance
  • Balanced, transformerless output
  • Programmable on/off switch and LED on/off indicator (MX392/MX393 models only)
  • LED logic input and switch logic output terminals

What's in the box:

  • Shure MX391W/S Supercardioid Condenser Boundary Microphone
  • (RK183PK) Preamplifier (4-Pin Mini to XLR-3M)
  • Shure Warranty
