Shure MX392BE Specifications

  • Cartridge Type

    Electret Condenser

  • Frequency Response

    50-17000 Hz

  • Polar Pattern

    Cardioid

  • Output Impedance

    180Ohms

  • Output Configuration

    Active Balanced

  • Sensitivity

    At 1kHz, open circuit voltage: -30 dBV/Pa

  • Maximum SPL

    119dB at 1kHz, 1% THD (1kOhm load)

  • Equivalent Output Noise

    23dB SPL, A-Weighted

  • Signal-To-Noise Ratio

    71dB (Ref. 94dB SPL at 1kHz)

  • Dynamic Range

    96.2dB (1kOhm load at 1kHz)

  • Common Mode Rejection

    45dB, minimum (10Hz to 100kHz)

  • Preamplifier Output Clipping Level

    -6dBV (0.5 V) at 1% THD

  • Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • Mute Switch

    -50dB minimum (50 - 20000Hz)

  • LED IN

    Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7Vto 50V

  • LOGIC-OUT

    Active low (=0.5V), sinks up to 20mA, TTL compatible. Absolute maximumvoltage: -0.7V to 24V (up to 50V through 3kOhms)

  • Power Requirements

    11 - 52V DC, 2.0mA

  • Operating Temperature

    -18 to 57 deg. C / -0 to 135 deg. F

  • Storage Temperature

    -29 to 74 deg. C / -20 to 165 deg. F

  • Relative Humidity

    0 - 95%

  • Cable Length

    12' / 3.66m attached cable with shielded audio pair and three conductors for logic control, unterminated, bottom exit

  • Weight

    172g / 6.07oz

  • UPC Code

    042406467803

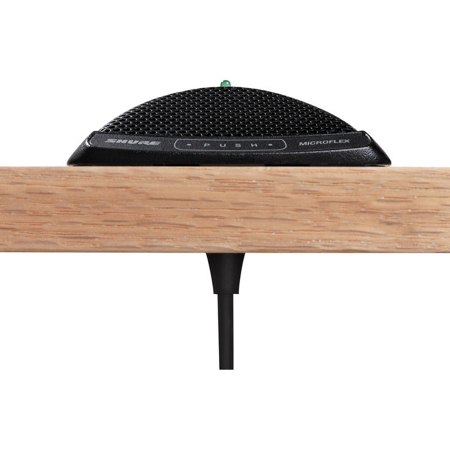

About Shure MX392BE

Shure Microflex MX300 Series microphones are surface-mounted electret condenser microphones designed primarily for mounting on conference tables, stage floors and lecterns. Their high sensitivity and wide frequency range make them especially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises. The MX392 and MX393 models include an internal preamplifier. MX300 Series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles. When placed near a sufficiently large boundary surface, the microphone has 6dB higher sensitivity and approximately 3dB greater direct-to-reverberant sound ratio.

Shure MX392BE Features

  • Flat frequency response across the vocal range for uncolored sound
  • Interchangeable cartridges that provide a choice of polar pattern for each application
  • Sleek, low-profile design for surface mounting
  • Programmable mute button
  • LED indicator
  • Logic input/output for remote control or use with automatic mixers
  • RF filtering

Key Features

  • Flat frequency response across the vocal range for uncolored sound
  • Sleek, low-profile design for surface mounting
  • Programmable mute button
  • Logic input/output for remote control or use
