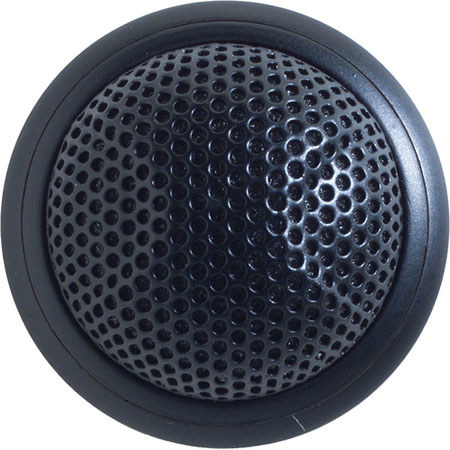

Shure MX395B/BI-LED Low Profile Boundary Microphone, Bi-directional, 3-pin XLR Output Connectors, Black

SKU: SHMX395BBL MFR: MX395B/BI-LED
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Shure boundary microphone's bi-directional polar pattern.
  • Enjoy clear sound in meetings; this low-profile condenser microphone offers a wide frequency response.
  • The MX395B/BI-LED microphone's build quality ensures reliability for crucial conference calls.
  • Minimize distractions with this boundary microphone's low noise, enhancing speech clarity.
  • Integrate easily using the 3-pin XLR output; perfect for professional audio setups and recording.
  • This Shure microphone's compact design fits seamlessly into any conference room or studio setting.
See More Product Details
Special Order Item?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure MX395B/BI-LED Specifications

  • Transducer

    Condenser

  • Polar Pattern

    Bi-directional

  • Frequency Response

    50 to 17000 Hz

  • Output Impedance

    EIA Rated at 150 Ohms (170 Ohms actual)

  • Output Configuration

    Active balanced

  • Sensitivity

    -37 dBV/Pa (14 mV)
    1 Pascal=94 dB SPL(at 1 kHz, open circuit voltage)

  • Maximum SPL

    123 dB (1 kHz at 1% THD, 1 kilohms load)

  • Equivalent output Noise (A-weighted)

    29 dB SPL

  • Signal-to-Noise Ratio

    65 dB (referenced at 94 dB SPL at 1 kHz)

  • Dynamic Range

    94 dB (1 kilohm load at 1 kHz)

  • Common Mode Rejection (10 Hz - 100 kHz)

    45 dB minimum

  • Preamplifier output Clipping level

    -8 dBV (0.4 V) (1% THD)

  • Polarity

    5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector

  • Logic Connections

    LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V

  • Environmental Conditions

    Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
    Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
    Relative Humidity: 0 to 95%

  • Power Requirements

    48 - 52 Vdc phantom, 8.0 mA

  • Dimensions (Diameter)

    1.25-inch (3.17 cm)

  • Weight

    0.136 kg (0.30 lbs)

  • UPC Code

    42406141284

About Shure MX395B/BI-LED

Take your audio recording to the next level with the Shure MX395B/BI-LED Microflex Low Profile Boundary Microphone. This high-quality, bi-directional microphone is expertly designed for discreet and efficient capturing of conversations, speeches, and ambient audio. Perfectly suited for mounting on flat surfaces, it seamlessly integrates into any setting, whether it's a desktop, ceiling, or podium.

The compact design of the MX395B/BI-LED, with a diameter of just 1.25" (3.17 cm), makes it an unobtrusive addition to your audio setup. Despite its small size, this microphone doesn't compromise on performance. It features 3-pin XLR output connectors, ensuring superior sound quality and reliable connectivity.

Finished in a sleek black color, the Shure MX395B/BI-LED Microflex Low Profile Boundary Microphone not only delivers exceptional audio performance but also blends seamlessly into any professional environment. Ideal for video and broadcast operations, this microphone is a valuable tool for anyone seeking to capture clear, high-quality audio in a discreet manner.

Shure MX395B/BI-LED Features

  • Only 1.25 inch (3.17 cm) in diameter
  • Bi-directional polar pattern
  • Wide dynamic range and smooth frequency response
  • Bi-color status indicator
  • Logic input for remote LED control

Warranty Information

This product has a limited warranty of 24 months.
