Shure MX395B/O-LED Low Profile Boundary Microphone with Remote LED Operation, Omnidirectional, 5-pin, XLR, Black

SKU: SHMX395BOL MFR: MX395B/O-LED
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Shure boundary microphone, perfect for meetings.
  • Experience exceptional sound quality with the omnidirectional polar pattern microphone.
  • Ensure seamless connectivity using the 5-pin XLR microphone for professional setups.
  • Benefit from low noise and a wide frequency response (50-17000 Hz) for clear recordings.
  • Trust in Shure's durability; this boundary microphone is built to last in any environment.
  • Easily monitor status with remote LED operation on this low-profile microphone.
See More Product Details
Special Order Item?Estimated to Ship: 08/31/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure MX395B/O-LED Specifications

  • Frequency Response

    50 to 17000 Hz

  • Polar Pattern

    Omnidirectional

  • Output Impedance

    EIA Rated at 150 Ohms (170 Ohms actual)

  • Output Configuration

    Active balanced

  • Sensitivity

    -28 dBV/Pa (42 mV)

  • Maximum SPL

    Omnidirectional: 114 dB (1 kHz at 1% THD, 1 kilohms load)

  • Equivalent output Noise (A-weighted)

    Omnidirectional: 21 dB SPL

  • Signal-to-Noise Ratio

    Omnidirectional: 73 dB (referenced at 94 dB SPL at 1 kHz)

  • Dynamic Range (1 kilohm load at 1 kHz)

    Omnidirectional: 93 dB

  • Common Mode Rejection (10 Hz - 100 kHz)

    45 dB minimum

  • Preamplifier output Clipping level

    -8 dBV (0.4 V)

  • Polarity

    5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector

  • Output Connectors

    5-pin XLR

  • Pad

    No

  • Low Frequency Roll-Off

    No

  • Logic Connections

    LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V

  • Operating Temperature

    -18 to 57 deg. C (0 to 135 deg. F)

  • Storage Temperature

    -29 to 74 deg. C (-20 to 165 deg. F)

  • Relative Humidity

    0 to 95%

  • Power Requirements

    48 - 52 Vdc phantom, 8.0 mA

  • Dimensions (Dia)

    1.25-inch (3.8 cm)

  • Weight

    0.136 kg (0.30 lbs.)

  • UPC Code

    42406141239

About Shure MX395B/O-LED

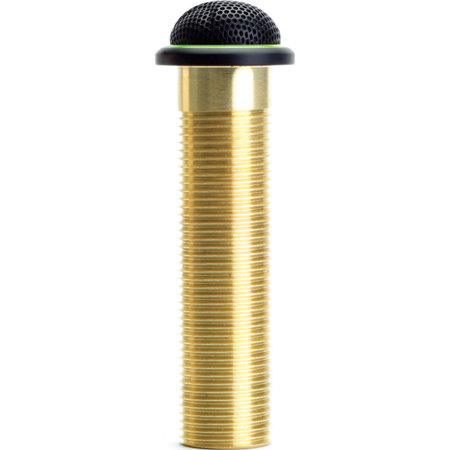

With its sleek design and advanced technology, the Shure MX395B/O-LED Microflex Low Profile Boundary Microphone with Remote LED Operation, Omnidirectional (Black) is a top-tier audio solution. This compact, low-profile boundary microphone is expertly engineered for concealed audio capture, making it perfect for recording conversations, speeches, and ambient sound in various settings.

Designed to be mounted on flat surfaces such as desktops, ceilings, or podiums, the MX395B/O-LED is a mere 1.25" (3.8 cm) in diameter. This small footprint makes it an excellent choice for video production and broadcast operations where discretion and space-saving are key.

The microphone boasts an optimized frequency response, ensuring clear and crisp sound quality. It is available in multiple polar patterns, including bi-directional, cardioid, and omnidirectional, providing versatility to meet your specific audio needs.

One of the standout features of the Shure MX395B/O-LED Microflex Boundary Microphone is its logic-controlled mute function. This feature, coupled with a bi-colored LED ring, provides a visual indication of the microphone's status - open or mute. This makes it easy for users to monitor and control the audio capture process.

Whether you're looking to enhance audio capture in meetings, executive boardrooms, conferences, or news broadcasts, the Shure MX395B/O-LED Microflex Low Profile Boundary Microphone is a reliable and professional choice. Its superior performance and discreet design make it a valuable addition to any audio equipment setup.

Shure MX395B/O-LED Features

  • Miniature Size: The MX395 measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation
  • Omnidirectional: The omnidirectional polar pattern provides a uniform pick up at the entire perimeter of the microphone
  • Bi-color LED Ring: Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status
  • Remote LED: This connector for this MX395 features a 5-pin XLR connector for remote control over the LED

Warranty Information

This product has a limited warranty of 24 months.
