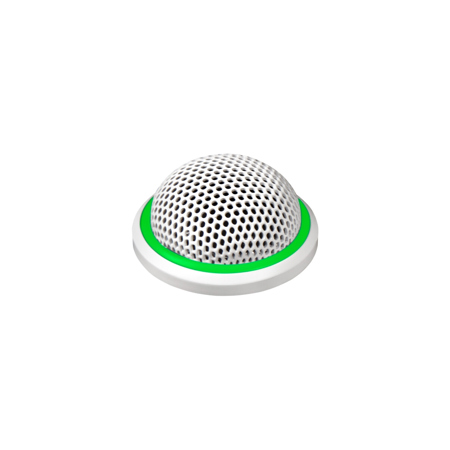

Shure MX395 Microflex Low Profile Boundary Microphone Bi-Color LED Indicator White Omnidirectional
See all Shure items
29% Off

Shure MX395 Microflex Low Profile Boundary Microphone Bi-Color LED Indicator White Omnidirectional

SKU: SHMX395WOLED MFR: MX395W/O-LED
Be the first to review this itemAsk a Question
$245.00
$343.00
Save: $98 (29%)
OR
$41/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this low profile Shure boundary microphone for clear sound.
  • Choose from cardioid, omnidirectional, or bidirectional polar patterns for targeted recording.
  • Ensure crystal-clear conferencing with a condenser microphone designed for voice clarity.
  • Experience wide 50 Hz - 17 kHz frequency response, capturing every nuance of speech.
  • Benefit from its low noise performance, perfect for recording in quiet environments.
  • Rely on Shure's build quality for a durable boundary microphone that lasts for years.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$29.99
2-Year Adorama Protect$49.99
3-Year Adorama Protect$59.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the remote LED control on the MX395 Microflex Low Profile Boundary Microphone?

The remote LED control on the MX395 Microflex Low Profile Boundary Microphone allows for easy monitoring and adjustment of settings, providing convenience and adaptability during recording sessions.

What does the Cardioid, Bidirectional, and Omnidirectional pickup patterns mean?

These terms refer to the different sound pickup patterns offered by the MX395 Microflex Low Profile Boundary Microphone. A Cardioid pattern is focused and directional, Bidirectional captures audio from two opposite directions, and Omnidirectional encompasses sound from all directions.

Why is the MX395 Microflex Low Profile Boundary Microphone ideal for meeting rooms?

The MX395 Microflex Low Profile Boundary Microphone is ideal for meeting rooms due to its exceptional sound pickup, low-profile design, and selection of pickup patterns. It can capture clear audio from various directions, making it perfect for meetings where people are speaking from different locations.

Can the MX395 Microflex Low Profile Boundary Microphone be used for podcasting?

Yes, the MX395 Microflex Low Profile Boundary Microphone is excellent for podcasting. Its high-quality audio capture and selection of pickup patterns make it a versatile tool for recording clear, professional-grade audio content.

Reviews about this item

Review Summary

Shure MX395W/C Specifications

  • Available Colors

    Black, White, Silver

  • Type

    Condenser (electret bias)

  • Frequency Response

    50 HZ - 17 kHz

  • Polar Pattern

    MX395/O: Omnidirectional
    MX395/C: Cardioid
    MX395/BI: Bidirectional

  • Output Impedance

    EIA rated at 150 Ohm (170 Ohm actual)

  • Output Configuration

    Active balanced

  • Sensitivity

    At 1 kHz , open circuit voltage; 1 Pascal = 94 dB SPL:
    Cardioid : -35 dBV/Pa (18 mV)
    Omnidirectional : -28 dBV/Pa (42 mV)
    Bidirectional : -37 dBV/Pa (14 mV)

  • Maximum SPL

    1 kHz at 1% THD, 1 kOhm load:
    Cardioid : 121 dB
    Omnidirectional : 114 dB
    Bidirectional : 123 dB

  • Equivalent Output Noise A-weighted

    Cardioid : 28 dB SPL
    Omnidirectional : 21 dB SPL
    Bidirectional : 29 dB

  • Signal-to-Noise Ratio

    Referenced at 94 dB SPL at 1 kHz:
    Cardioid : 66 dB
    Omnidirectional : 73 dB
    Bidirectional : 65 dB

  • Dynamic Range 1kOhm load @ 1kHz

    Cardioid : 93 dB
    Omnidirectional : 93 dB
    Bidirectional : 94 dB

  • Common Mode Rejection

    45 dB minimum 10 Hz to 100 kHz

  • Preamplifier Output Clipping Level

    1% THD: -8 dBV (0.4 V)

  • Polarity

    3-pin XLR : Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
    5-pin XLR : Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.

  • Logic Connections

    LED IN : Active low (<= 1.0 V), TTL compatible. Absolute maximum voltage: -0.7 V to 50 V.

  • Environmental Conditions

    Operating Temperature: 0-135 Degree F (-18-57 Degree C)
    Storage Temperature: -20-165 Degree F (-29-74 Degree C)
    Relative Humidity: 0-95%

  • Power Requirements

    MX395: 11 - 52 Vdc phantom, 2.0 mA
    MX395-LED: 48 - 52 Vdc phantom, 8.0 mA

  • Weight

    4.79 oz (136g)

  • UPC Code

    042406517973

About Shure MX395W/C

Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room. It features wide dynamic range and smooth frequency response, remote LED control, and 3 color options.

The Microflex Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.

Cartridge polar pattern indicated by model number suffix
(C = Cardioid, BI = Bidirectional, O= Omnidirectional):

Shure MX395W/C Features

  • Only 1.25" (3.8 cm) in diameter
  • Cardioid, omni and bidirectional polar patterns
  • Wide dynamic range and smooth frequency response
  • Available in black, white and Silver
  • Bi-color status indicator available with -LED models
  • Logic input for remote LED control
  • CommShield Technology

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture pristine audio with this low profile Shure boundary microphone for clear sound.
  • Choose from cardioid, omnidirectional, or bidirectional polar patterns for targeted recording.
  • Ensure crystal-clear conferencing with a condenser microphone designed for voice clarity.
  • Experience wide 50 Hz - 17 kHz frequency response, capturing every nuance of speech.
  • Benefit from its low noise performance, perfect for recording in quiet environments.
  • Rely on Shure's build quality for a durable boundary microphone that lasts for years.

What's in the box:

  • Shure MX395 Microflex Low Profile Boundary Microphone
  • Rubber Isolation Rings
  • Fastening Hex Nut
  • Wing Nut
  • 5-Pin XLR Female Connector
  • Shure 2 Year Limited Warranty
