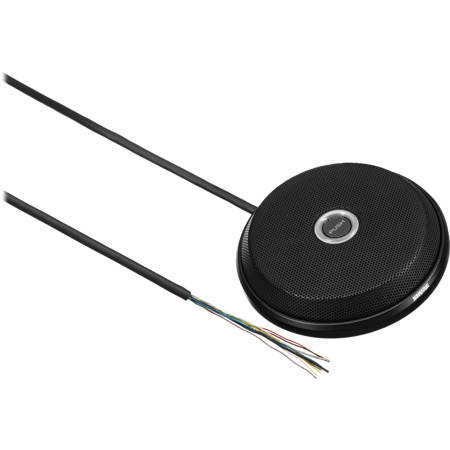

Shure MX396/C-TRI Microflex Tri-Element Boundary Microphone
See all Shure items

Shure MX396/C-TRI Tri-Element Boundary Microphone, Cardioid, 50 to 17,000 Hz Frequency Response

SKU: SHMX396CT

This item is no longer available.

Recommended Alternatives

Shure MX392/C: Picture 1 regular
Shure MX392/C Cardioid Condenser Boundary Microphone
$442.00$316.00
Shure MX393/C: Picture 1 regular
Shure MX393/C Cardioid Condenser Boundary Microphone
$442.00$316.00
Shure MXW6X: Picture 1 regular
Shure MXW6X Wireless Cardioid Boundary Mic Transmitter, Black, Z10: 1920-1930MHz
$922.00$737.00
Shure MXW6X: Picture 1 regular
Shure MXW6X Wireless Cardioid Boundary Mic Transmitter, White, Z10: 1920-1930MHz
$922.00$737.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure MX396/C-TRI Specifications

  • Frequency Response

    50 to 17000 Hz

  • Polar Pattern

    3 x Cardioid

  • Output Impedance

    EIA Rated at 150 Ohms (170 Ohms actual)

  • Output Configuration

    Active balanced

  • Sensitivity

    -35 dBV/Pa (18 mV) (at 1 kHz, open circuit voltage)

  • Maximum SPL

    122 dB (1 kHz at 1% THD, 1 kilohms load)

  • Equivalent Output Noise (A-weighted)

    28 dB SPL

  • Signal-to-Noise Ratio

    66 dB (referenced at 94 dB SPL at 1 kHz)

  • Dynamic Range (1 kilohm load at 1 kHz)

    94 dB

  • Common Mode Rejection (10 Hz to 100 kHz)

    45 dB minimum

  • Preamplifier Output Clipping Level

    -7 dBV (0.5 V)

  • Logic Connections

    LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
    LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible.
    Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)

  • Mute Switch Attenuation

    -50 dB minimum

  • Cable

    6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control

  • Operating Temperature

    -18 to 57 deg. C (0 to 135 deg. F)

  • Storage Temperature

    -29 to 74 deg. C (-20 to 165 deg. F)

  • Relative Humidity

    0 to 95%

  • Power Requirements

    48-52 Vdc phantom, 12.0 mA

  • Dimensions

    4.3 x 4.3 x 1" (109.2 x 109.2 x 2.54mm)

  • Weight

    1.29 lbs (0.585 kg)

  • UPC Code

    42406141420

About Shure MX396/C-TRI

Shure MX396/C-TRI Features

  • Individual audio output for each element
  • Bi-color status indicator
  • Programmable mute switch
  • Logic input/output for remote LED and mute control
  • CommShield Technology
  • Tri Element Boundary: The tri element design allows for 180 or 360 degree of pickup coverage. The cardioid polar patterns eliminate surface noise and reflection issues
  • Bottom or Side Exit Cable: The included hardware allows for the 20 ft (6.1 m) attached, unterminated cable to exit the side, or bottom of the microphone

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Individual audio output for each element
  • Bi-color status indicator
  • Programmable mute switch
  • Logic input/output for remote LED and mute control
  • CommShield Technology
  • Tri Element Boundary

What's in the box:

  • Shure MX396/C-TRI Microflex Tri-Element Boundary Microphone
  • 65A2190 Wing Nut
  • 31A2165 Mounting Tube
  • 2 x 66A405 Rubber O Rings
  • R185B Cardioid Cap
  • Shure Warranty
