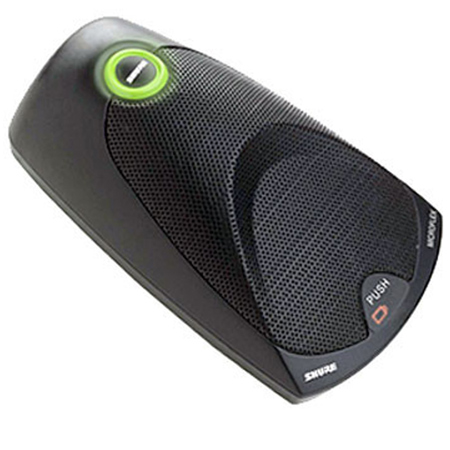

Shure MX690-J3 Wireless Boundary Microphone, 572-596 MHz Frequency Band
See all Shure items

Shure MX690-J3 Wireless Boundary Microphone, 572-596 MHz Frequency Band, Cardioid Polar Pattern

SKU: SHMX690J3

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure MX690=-J3 Specifications

  • Transmitter: Operating Range

    30 m (100 ft.)

  • Transmitter: Frequency Stability

    +/-10 ppm

  • Transmitter: Maximum Frequency Deviation

    45 kHz

  • Transmitter: Oscillator Type

    Phase-locked loop (PLL) controlled synthesizer

  • Transmitter: Power Requirements

    3V (2 AA alkaline or rechargeable batteries)

  • Transmitter: Battery Life

    =8 hours (alkaline)

  • Transmitter: Power Consumption

    130 mA, +/-15 mA

  • Transmitter: Operating Temperature Range

    -18-57 deg.C (0-135 deg.F)

  • Microphone Type

    Condenser (electret bias)

  • Microphone: Frequency Response

    50-17000 Hz

  • Microphone: Polar Pattern (at 1 kHz)

    Cardioid

  • Microphone: Sensitivity

    (at 1 kHz, open circuit voltage)
    -33 dBV/Pa (22 mV)
    1 Pascal=94dB SPL

  • Microphone: Dynamic Range

    96 dB (1 kOhm load at 1 kHz)

  • Microphone: Common Mode Rejection

    45 dB minimum (10 Hz to 100 kHz)

  • Microphone: Preamplifier Output Level

    -6 dBV (0.5 V)(1% THD)

  • Microphone: Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector or tip of 1/4" phone plug.

  • Dimensions (H x W x D)

    43 mm x 87 mm x 148 mm (1.69 x 3.42 x 5.82")

  • Weight

    319 g (11.2 oz)

  • UPC Code

    042406141666

About Shure MX690=-J3

Shure MX690=-J3 Features

  • Sleek, low profile design
  • Frequency agile, microprocessor controlled transmitter
  • Bi-color status indicator
  • IR link to SLX receiver for automatic frequency synchronization
  • Programmable mute function
  • Battery level indicator
  • Operates on two AA batteries
  • Logic output for remote LED and mute control
  • CommShield Technology for improved RF filtering

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sleek, low profile design
  • Bi-color status indicator
  • Programmable mute function
  • Battery level indicator
  • Operates on two AA batteries
  • Logic output for remote LED and mute control
