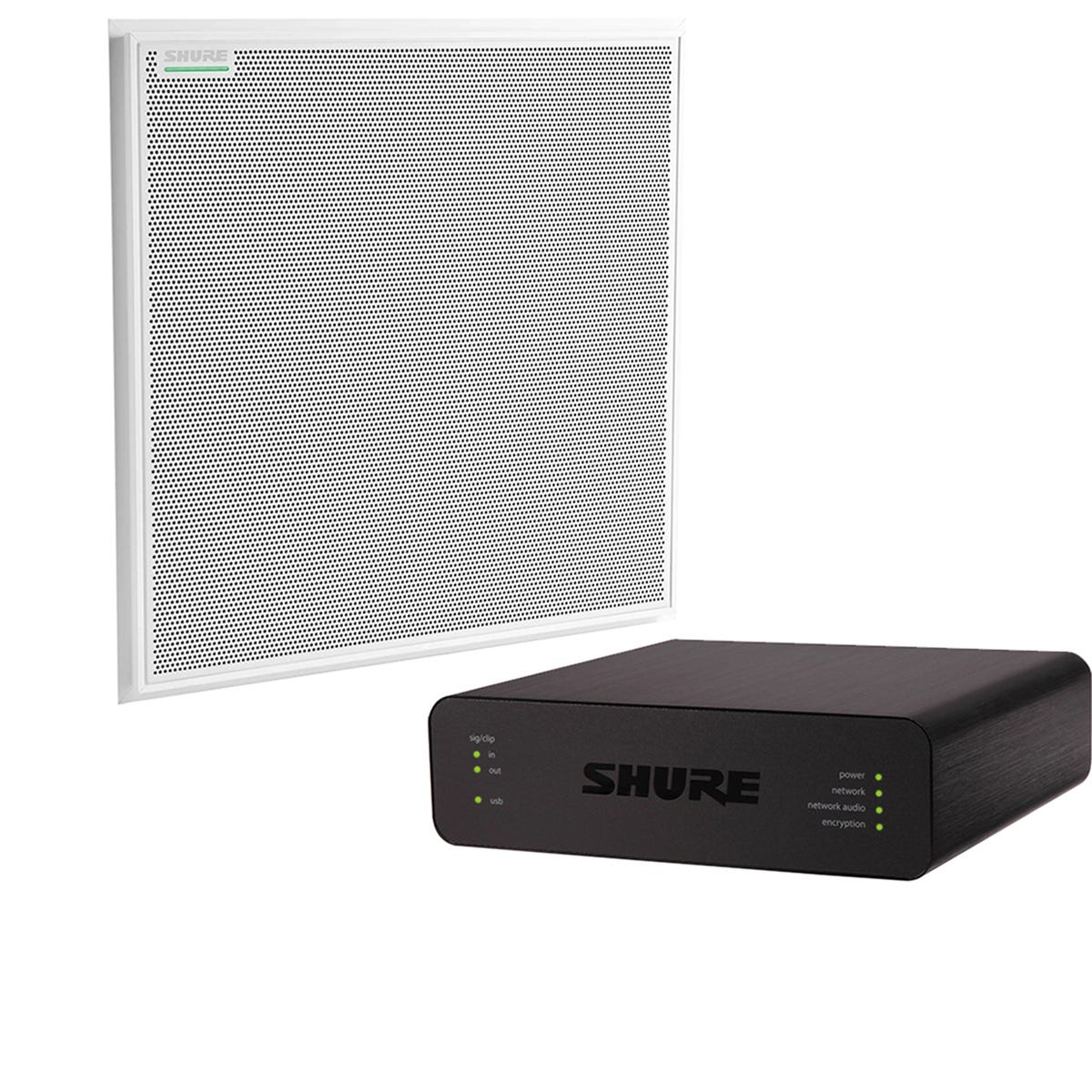

Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

SKU: SHMXA902WUSB MFR: MXA902W-S-USB
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this conferencing system's superior sound quality.
  • Enjoy seamless connectivity with Dante digital audio networking for streamlined setups.
  • Effortlessly manage meetings using the automatic mixing and noise reduction features.
  • Ensure everyone is heard with a wide 20x20' audio coverage area, perfect for large rooms.
  • Simplify installations with the included ANIUSB-MATRIX USB audio network interface.
  • Achieve professional-grade audio in any meeting space with Shure audio solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure MXA902W-S + ANIUSB-MATRIX Specifications

MXA902W-S: General

MXA902W-S: General

Jump to...
  • Coverage Type

    Single-zone automatic

  • Power Requirements

    Power over Ethernet Plus (PoE+), Class 4

  • Power Consumption

    24 W maximum

  • Control Software

    Designer

  • Cable Requirements

    Cat5e or higher (shielded cable recommended)

  • Connector Type

    RJ45

  • Plenum Rating

    UL2043 (Suitable for Air Handling Spaces)

  • Dust Protection

    IEC 60529 IP5X Dust Protected

  • Operating Temperature Range

    20 Degree F to 104 Degree F (-6.7 Degree C to 40 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

  • Coverage Area Size

    20 x 20' (6.1 x 6.1m)

MXA902W-S: Microphone

Jump to...
  • Frequency Response

    125 Hz to 20 kHz

  • AES67 or Dante Digital Output

    Channel Count: 1 output channel
    Sampling Rate: 48 kHz
    Bit Depth: 24

  • Sensitivity at 1 kHz

    -1.74 dBFS/Pa

  • Maximum SPL

    95.74 dB SPL (Relative to 0 dBFS overload)

  • Signal-to-Noise Ratio

    75.76 dB A-weighted (Ref. 94 dB SPL at 1 kHz)

  • Latency

    26.6 ms (Does not include Dante latency)

  • Self Noise

    18.24 dB SPL-A

  • Dynamic Range

    77.5 dB

  • Digital Signal Processing

    Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)

  • Acoustic Echo Cancellation

    Up to 250 ms (Tail Length)

MXA902W-S: Loudspeaker

Jump to...
  • AES67 or Dante Digital Input

    Channel Count: 2 input channels

  • Frequency Range (-10 dB)

    120 Hz to 20 kHz

  • Maximum Output Level At 1 meter

    Pink noise: 86 dB SPL
    1 kHz sine tone: 88 dB SPL

  • Coverage Angle

    80 Degree (Average of 1 octave band centered on 4 kHz)

  • Digital Signal Processing

    Delay, compressor, signal generator, equalizer (4-band parametric)

  • Latency

    6.3 ms (Not including Dante latency)

MXA902W-S: Physical

Jump to...
  • Color

    White

  • Dimensions (L x W x H)

    Flange: 0.41" (1.04cm)
    Edge to edge: 23.77" (60.37cm)
    Height: 2.2" (5.58cm)

  • Weight

    12.7 lbs (5.8kg)

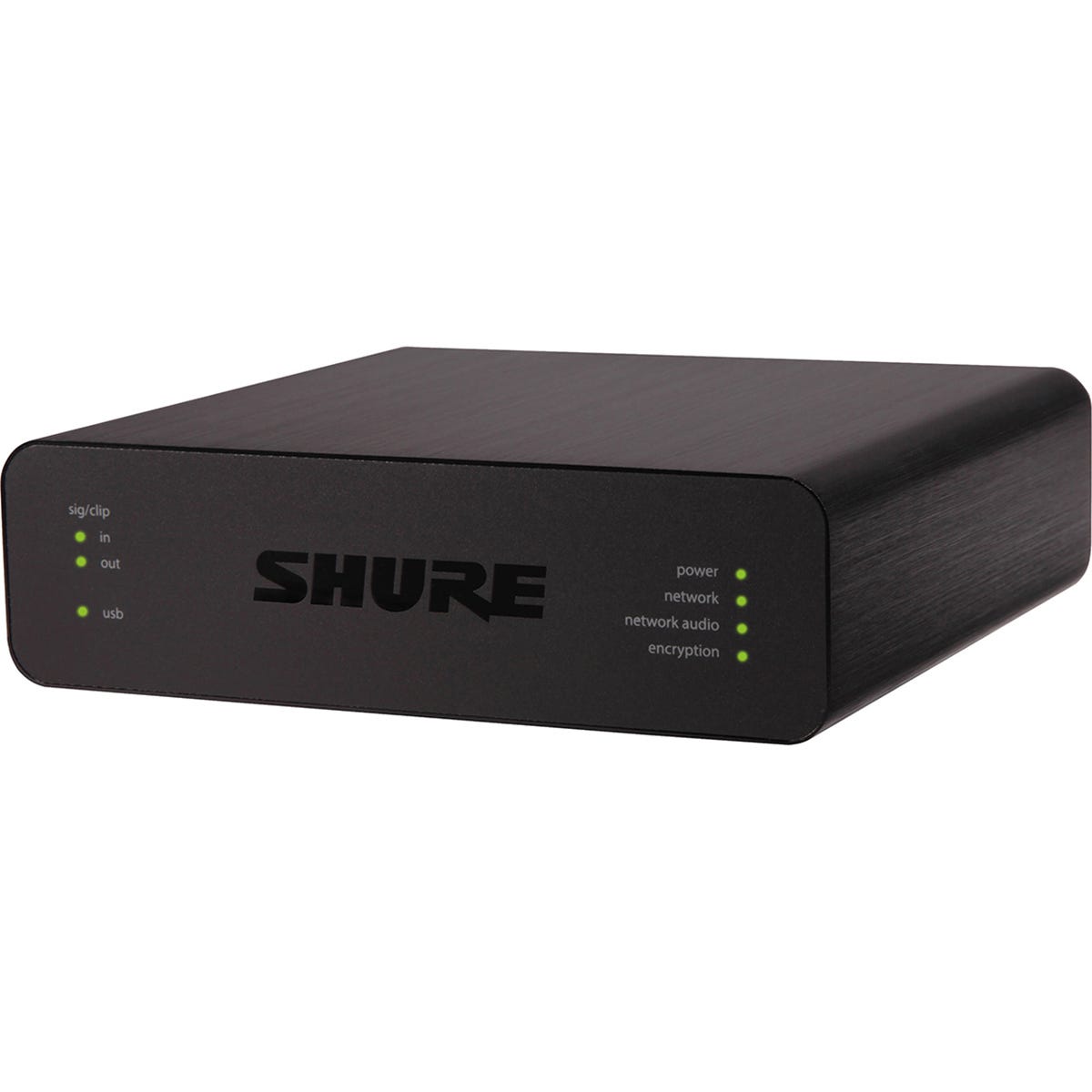

ANIUSB-MATRIX

Jump to...
  • Input

    1x 3-pin block connector (Active Balanced)

  • Output

    1x 3-pin block connector (Impedance Balanced)

  • USB Connections

    USB 2.0, Type B
    Single port carries 1 input and 1 output channel (Summed mono)

  • Network Connections(Dante Digital Audio)

    RJ45
    4 input channels, 2 output channels

  • Polarity

    Non-inverting, any input to any output

  • Power Requirements

    Power over Ethernet (PoE), Class 0. (PoE Plus compatible).

  • Power Consumption

    6.5W, maximum

  • Control Application

    HTML5 Browser-based

  • Operating Temperature Range

    20 to 104 Degree F (-6.7 to 40 Degree C)

  • Storage Temperature Range

    -20 to 165 Degree F (-29 to 74 Degree C)

  • Thermal Power Dissipation

    Maximum: 6.8W (23.0BTU/hr)
    Typical: 6.0W (20.8BTU/hr)

  • Frequency Response

    +1, -1.5 dB
    20 to 20,000 Hz

  • Dante Digital Audio

    Sampling Rate: 48 kHz
    Bit Depth: 24

  • USB Audio

    Sampling Rate: 44.1, 48 kHz
    Bit Depth: 16, 24

  • Latency

    Analog to Analog: 0.98 ms
    Analog to Dante: 0.39 ms
    Dante to Analog: 0.72 m
    Dante to Dante: 0.14 ms (Does not include Dante latency)

  • Dynamic Range

    20 Hz to 20 kHz, A-weighted, typical
    Analog-to-Dante: 113 dB
    Dante-to-Analog: 117 dB

  • Equivalent Input Noise

    20 Hz to 20 kHz, A-weighted, input terminated with 150Ohms
    Line: -86 dBV
    Aux: -98 dBV

  • Total Harmonic Distortion

    At 1 kHz, 0 dBV Input, 0 dB analog gain
    <0.05%

  • Common Mode Rejection Ratio

    150Ohms balanced source at 1 kHz
    >70 dB

  • Impedance

    10.6 k Ohms

  • Input Clipping Level

    Line: +27 dBV
    Aux: +15 dBV

  • Output Clipping Level

    Line: +20 dBV
    Aux: +0 dBV
    Mic: -26 dBV

  • Built-in Digital Signal Processing

    Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)
    System: Matrix mixer

  • Networking

    Cable Requirements: Cat 5e or higher (shielded cable recommended)

  • Dimensions (H x W x D)

    1.57 x 5.51 x 5.04" (4 x 14 x 12.8cm)

  • Weight

    23.56 oz (668g)

  • UPC Code

    042406861526

Related Articles & Videos

Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

When I think of Shure the first thing that comes to mind is rock stars bathed in light and singing in packed halls. We can't all be rock stars, but so many of us present our creations, whether they be spreadsheets or decks, to audiences via video conferencing. Don't we also deserve the quality sound...
Read more

9 Accessories for Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

  • All Accessories (9)
  • XLR Cables (4)
  • Cables & Adapters (5)

About Shure MXA902W-S + ANIUSB-MATRIX

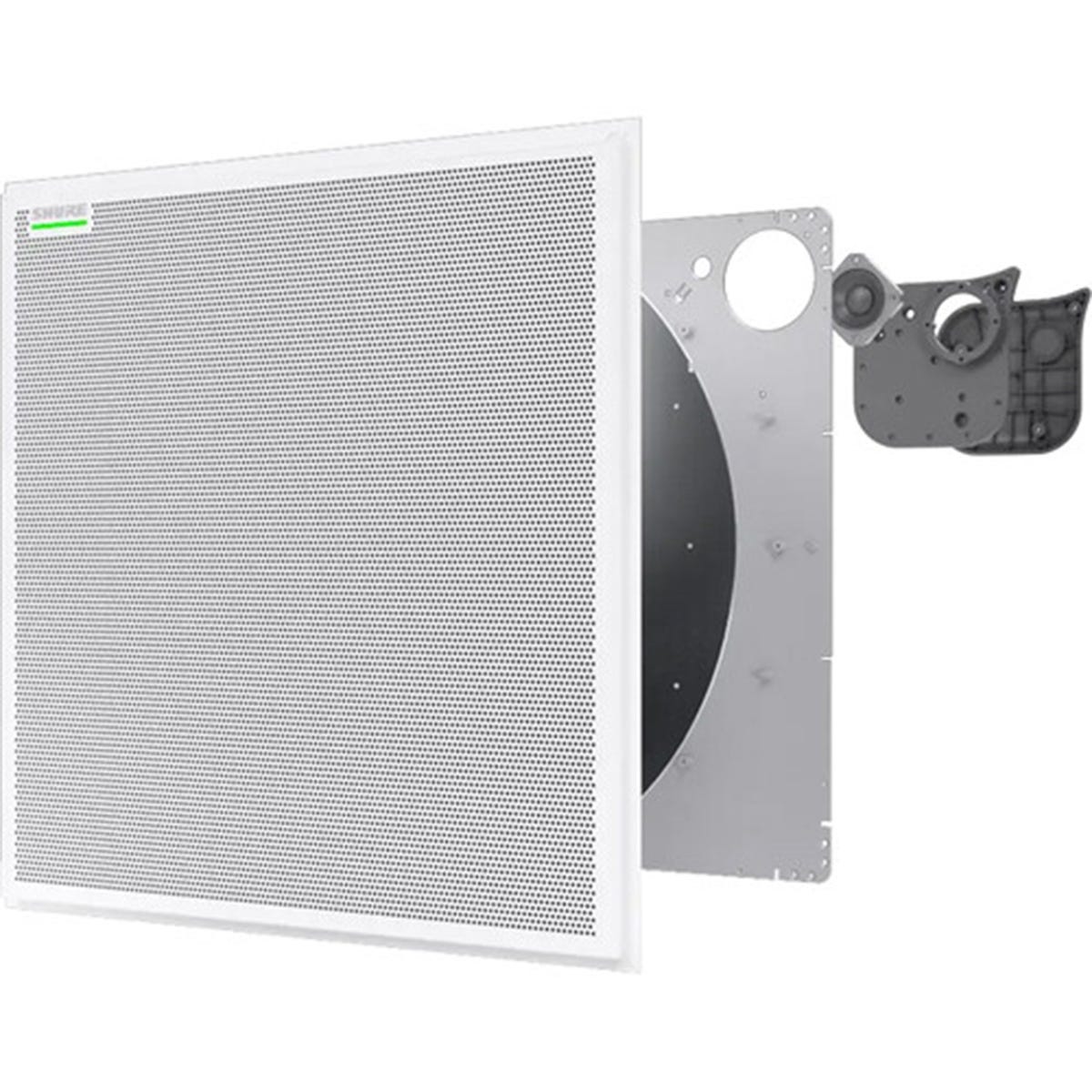

The first combination ceiling array microphone and loudspeaker for AV conferencing in small & medium spaces. With only one device to mount and one cable to connect, you'll have cleaner, clearer sound faster than ever. Single Zone Automatic Coverage technology covers a 20 by 20 foot (6 by 6 meter) area while onboard IntelliMix DSP delivers echo- and noise-free audio.

Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

How It Works

  • An advanced array microphone, wide-dispersion loudspeaker and powerful signal processing combined into one unit for premium sound.
  • Single Zone Automatic Coverage technology captures every talker in a 20 by 20 foot (6 by 6 meter) area while avoiding conversations and noises from other areas.
  • High-output loudspeaker is optimized for voice reproduction to ensure effortless collaboration.
  • Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

Quality that's in the Details

  • Certified for use with Microsoft Teams, Zoom and compatible with popular collaboration tools.
  • Square form factor available in 2 ft or 60 cm sizes with paintable white finish to meet the architectural needs of today's meeting spaces.
  • Audio, PoE+ power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
  • Shure Audio Encryption keeps meeting content secure between the MXA902 and other Microflex Ecosystem devices in the room.
  • LED status bar with configurable colors and brightness.
  • Command strings enable seamless integration with third-party room control systems.
Shure MXA902W-S and ANIUSB-MATRIX Audio Conferencing Kit

Why It's Better

  • A single device requires only one network cable, minimizing installation time compared to separate components.
  • An integrated ceiling device reduces clutter on tables and walls for a cleaner interior design.
  • Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality.
  • Unlike wall-mounted soundbar devices, a ceiling-mounted array mic and loudspeaker provide more consistent sound quality for every participant.

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this conferencing system's superior sound quality.
  • Enjoy seamless connectivity with Dante digital audio networking for streamlined setups.
  • Effortlessly manage meetings using the automatic mixing and noise reduction features.
  • Ensure everyone is heard with a wide 20x20' audio coverage area, perfect for large rooms.
  • Simplify installations with the included ANIUSB-MATRIX USB audio network interface.
  • Achieve professional-grade audio in any meeting space with Shure audio solutions.

What's in the box:

  • MXA902W-S Ceiling Array Microphone + Loudspeaker (White)
  • ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing
  • 8x Cable Ties
  • 3x Strain Relief Tabs
  • Rubber Pad Set
  • Mounting Tray
  • Shure 2 Year Limited Warranty
