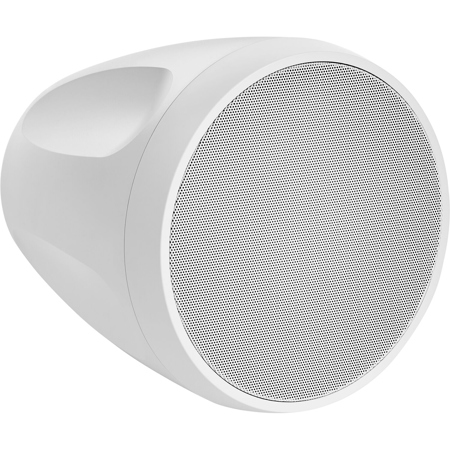

Shure Microflex MXN-6 Networked Pendant Conferencing Loudspeaker with Dante, White

SKU: SHMXN6W MFR: MXN-6W
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Shure Microflex MXN-6, perfect for any conferencing space.
  • Streamline your setup with Dante audio networking, ensuring seamless integration and superior sound quality.
  • Enjoy flexible power options with PoE/PoE+, simplifying installation and reducing cable clutter in your office.
  • Achieve optimal sound distribution with 110-degree coverage, ideal for various room layouts and sizes.
  • Benefit from advanced DSP features like EQ and limiter, fine-tuning your conferencing loudspeaker for clarity.
  • Trust Shure's renowned quality for reliable, high-performance audio in all your professional meetings.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure MXN-6 Specifications

General

General

Jump to...
  • Color

    White

  • Connector Type

    RJ45

  • Power Requirements

    PoE/PoE+

  • Control Software

    Yes (Designer)

  • Operating Temperature Range

    20 to 104 Degree F (-6.7 to 40 Degree C)

  • Frequency Response

    (-3 dB): 75Hz to 20kHz

  • Digital Signal Processing

    Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)

  • Latency

    0.3 ms typical, 2 ms max (Not including Dante)

  • Country of Origin

    China

Power Consumption

Jump to...
  • Power over Ethernet

    12 W Maximum (11 W Typical)

  • PoE Plus

    24 W Maximum (23 W Typical)

Maximum Output Level

Jump to...
  • Power over Ethernet

    92 dB SPL (Pink Noise), 99 dB SPL (1kHz Sine Tone)

  • PoE Plus

    96 dB SPL (Pink Noise), 103 dB SPL (1 kHz Sine Tone)

Coverage Angle

Jump to...
  • -6dB at 4 kHz

    110 degrees

Physical

Jump to...
  • Dimensions

    10.9 x 9.05 x 4.41" (27.68 x 22.99 x 11.20cm)

  • Weight

    4.8 lbs (2.2kg)

  • UPC Code

    042406881630

About Shure MXN-6

The Microflex MXN-6 Networked Pendant Loudspeaker provides high-quality speech reproduction for AV conferencing applications. The PoE-powered MXN-6 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP solutions, the full Shure Microflex Ecosystem delivers premium audio performance with an unmatched ease of deployment.

Shure MXN-6 Features

  • Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
  • 2-way driver system with 5.25" (13.3cm) woofer
  • PoE/PoE+ enabled, eliminates the need for an outboard amplifier
  • 2 networked audio inputs, 1 networked audio output
  • Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
  • Dante / AES67 compatible
  • Design and deploy every device in the Shure audio chain with Designer 6 System Configuration Software
  • Streamlined management with real-time monitoring and updates from anywhere via ShureCloud
  • Sleek, attractive industrial design compliments a wide variety of open ceiling installation types
  • Supports standards-based security protocols to manage access and protect data, including 802.1X, secure boot/storage, and AES encryption for control and audio data

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with the Shure Microflex MXN-6, perfect for any conferencing space.
  • Streamline your setup with Dante audio networking, ensuring seamless integration and superior sound quality.
  • Enjoy flexible power options with PoE/PoE+, simplifying installation and reducing cable clutter in your office.
  • Achieve optimal sound distribution with 110-degree coverage, ideal for various room layouts and sizes.
  • Benefit from advanced DSP features like EQ and limiter, fine-tuning your conferencing loudspeaker for clarity.
  • Trust Shure's renowned quality for reliable, high-performance audio in all your professional meetings.

What's in the box:

  • Shure Microflex MXN-6 Networked Pendant Conferencing Loudspeaker with Dante (White)
  • Back Cover
  • Loudspeaker Grille
  • Shure 2 Year Limited Warranty
