Shure Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker, Black

SKU: SHMXP5B MFR: MXP-5B
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure conferencing loudspeaker for meetings.
  • Achieve optimal sound quality with a wide 90Hz-20kHz frequency response in your conference room.
  • Enjoy seamless connectivity using the convenient 4-pin connector for easy setup.
  • Rely on durable performance with a robust design, perfect for daily conferencing needs.
  • Ensure compatibility with various systems; this speaker integrates smoothly into setups.
  • Optimize your presentation with a ceiling-mounted speaker for clear, distributed sound.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure MXP-5 Specifications

  • Color

    Black

  • Frequency Response (-3 dB)

    90Hz - 20kHz

  • Nominal Impedance

    4 Ohm

  • Coverage Angle

    95 Degree

  • Maximum SPL

    AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA

  • Sensitivity

    92 db SPL 1W/m

  • Connector Type

    4-pin connector, 0.2" (5.08mm) pitch

  • Maximum Input Power

    28W

  • Plenum Rating

    UL2043

  • Operating Temperature Range

    19.4 to 104 Degree F (-7 to 40 Degree C)

  • Dimensions

    13.5 x 13.5 x 4.3" (343 x 343 x 110mm)

  • Weight

    6.88 lbs (3.12kg)

  • UPC Code

    042406808309

About Shure MXP-5

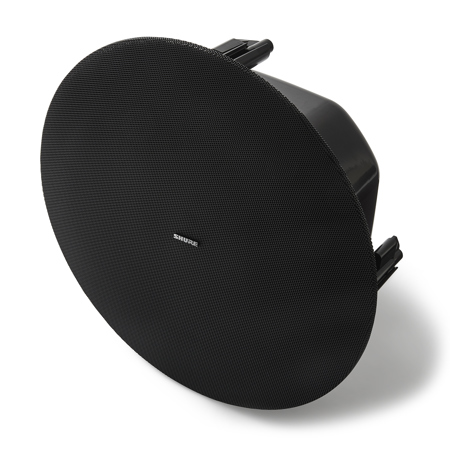

From Shure, the Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker in sleek black is engineered to deliver exceptional audio clarity for professional conferencing environments. This shallow-depth passive loudspeaker is expertly designed for seamless integration into existing meeting rooms, making it an ideal choice for retrofit installations. The Microflex MXP-5 ensures clear, intelligible audio, enhancing communication and collaboration during conferences. Its discreet ceiling-mount design not only saves space but also provides a sophisticated aesthetic that complements any modern meeting room. Experience superior sound quality with the Shure Microflex MXP-5, a trusted solution for effective and efficient conferencing.

Shure MXP-5 Features

  • Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility
  • 4" main driver features large, well-vented motor for increased power handling; 1" tweeter features neodymium magnet and heatsink fins for high efficiency
  • Identical voicing to MXP-6 Pendant Loudspeaker for consistent tonality in blended installations
  • Up to 8 MXP-5 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode
  • Compact design with only 2.5" depth can be wall mounted horizontally or vertically, or on-ceiling with included mounting hardware. (Note: Shure recommends the use of an additional safety tether for overhead components)
  • Shallow depth is ideal for retrofit applications or ceilings with limited mounting space
  • Switch on front faceplate allows for quick adjustment between 70/100v or 8 ohm operation
  • Available A-MXP-5-TB Tile Bridge and A-MXP-5-NCB New Construction Bracket allow for easy installation
  • Available in black or white finish, paintable to match room decor
  • Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure conferencing loudspeaker for meetings.
  • Achieve optimal sound quality with a wide 90Hz-20kHz frequency response in your conference room.
  • Enjoy seamless connectivity using the convenient 4-pin connector for easy setup.
  • Rely on durable performance with a robust design, perfect for daily conferencing needs.
  • Ensure compatibility with various systems; this speaker integrates smoothly into setups.
  • Optimize your presentation with a ceiling-mounted speaker for clear, distributed sound.

What's in the box:

  • Shure Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker (Black)
  • Jiekle JK2EDGK 508 Connector
  • Shure 2 Year Limited Warranty
