20% Off

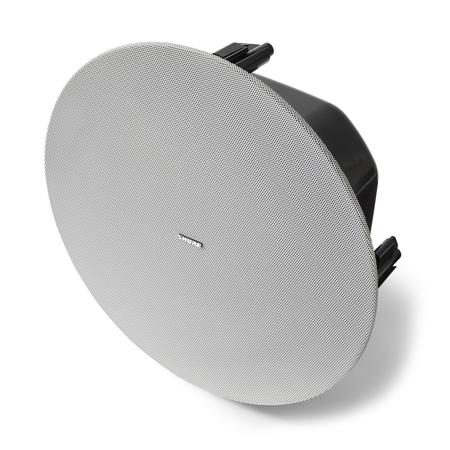

Shure Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker, White

SKU: SHMXP5W MFR: MXP-5W
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure conferencing loudspeaker for your meetings.
  • Achieve optimal sound coverage with a wide 95-degree angle, perfect for conference rooms.
  • Enjoy a sleek, ceiling-mounted design that blends seamlessly into any professional space.
  • Benefit from exceptional voice clarity with a frequency response of 90Hz - 20kHz.
  • Rely on its UL2043 plenum rating, ensuring safe use in various ceiling environments.
  • Easily integrate this 4-Ohm impedance speaker with your existing audio conferencing system.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure MXP-5 Specifications

  • Color

    White

  • Frequency Response (-3 dB)

    90Hz - 20kHz

  • Nominal Impedance

    4 Ohm

  • Coverage Angle

    95 Degree

  • Maximum SPL

    AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA

  • Sensitivity

    92 db SPL 1W/m

  • Connector Type

    4-pin connector, 0.2" (5.08mm) pitch

  • Maximum Input Power

    28W

  • Plenum Rating

    UL2043

  • Operating Temperature Range

    19.4 to 104 Degree F (-7 to 40 Degree C)

  • Dimensions

    13.5 x 13.5 x 4.3" (343 x 343 x 110mm)

  • Weight

    6.88 lbs (3.12kg)

  • UPC Code

    042406808422

About Shure MXP-5

Take your conferencing experience to the next level with the Shure Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker in White. This shallow-depth, passive ceiling-mount loudspeaker is expertly engineered for seamless integration into existing meeting rooms, making it an ideal choice for retrofit installations. Designed specifically for conferencing applications, the Microflex MXP-5 delivers crystal-clear, intelligible audio, ensuring every word is heard with precision. Its sleek, unobtrusive design blends effortlessly with any ceiling, maintaining the aesthetic integrity of your space while providing superior sound quality. Enhance your communication capabilities with the Shure Microflex MXP-5, where exceptional audio performance meets elegant design.

Shure MXP-5 Features

  • Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility
  • 4" main driver features large, well-vented motor for increased power handling; 1" tweeter features neodymium magnet and heatsink fins for high efficiency
  • Identical voicing to MXP-6 Pendant Loudspeaker for consistent tonality in blended installations
  • Up to 8 MXP-5 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode
  • Compact design with only 2.5" depth can be wall mounted horizontally or vertically, or on-ceiling with included mounting hardware. (Note: Shure recommends the use of an additional safety tether for overhead components)
  • Shallow depth is ideal for retrofit applications or ceilings with limited mounting space
  • Switch on front faceplate allows for quick adjustment between 70/100v or 8 ohm operation
  • Available A-MXP-5-TB Tile Bridge and A-MXP-5-NCB New Construction Bracket allow for easy installation
  • Available in black or white finish, paintable to match room decor
  • Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure conferencing loudspeaker for your meetings.
  • Achieve optimal sound coverage with a wide 95-degree angle, perfect for conference rooms.
  • Enjoy a sleek, ceiling-mounted design that blends seamlessly into any professional space.
  • Benefit from exceptional voice clarity with a frequency response of 90Hz - 20kHz.
  • Rely on its UL2043 plenum rating, ensuring safe use in various ceiling environments.
  • Easily integrate this 4-Ohm impedance speaker with your existing audio conferencing system.

What's in the box:

  • Shure Microflex MXP-5 Ceiling Mount Conferencing Loudspeaker (White)
  • Jiekle JK2EDGK 508 Connector
  • Shure 2 Year Limited Warranty
