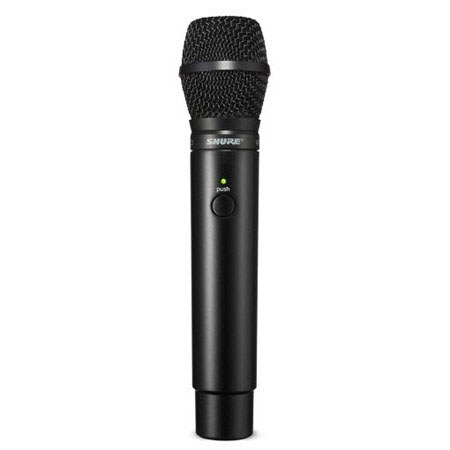

Shure MXW2 Wireless Handheld Transmitter with SM86 Microphone

SKU: SHMXW2SM86

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure MXW2 Specifications

  • Transmitter Type

    Handheld Transmitter

  • Gain Adjustment Range

    -25 to +15 dB (in 1 dB steps)

  • Maximum Input Level (Mic gain at -16 dB)

    -9 dBV

  • Headphone Output

    3.5 mm (1/8"), dual mono (will drive stereo phones)

  • Maximum Headphone Output Power

    17.5 mW (1kHz at 1% distortion, peak power, at 16ohm)

  • Antenna Type

    Internal, Spacial Diversity, Linear Polarization

  • Battery Type

    Rechargeable Li-Ion

  • Battery Life

    Up to 15 hours

  • Charge Connector

    USB 3.0 Type A

  • Housing

    Molded Plastic

  • Recommended Storage Temperature Range

    0deg.C (32deg.F) to 25deg.C (77deg.F)

  • Microphone Capsule

    SM86

  • Configuration

    Unbalanced

  • Input Impedance

    >20 kohm ( at 1 kHz)

  • Dimensions (L x Dia)

    226 x 51 mm (8.89 x 2.00")

  • Weight

    0.712 lbs (0.32 kg )

2 Accessories for Shure MXW2 Wireless Handheld Transmitter with SM86 Microphone

  • All Accessories (2)
  • Transmitters & Receivers (2)Required Item

About Shure MXW2

The Shure MXW2 is a handheld transmitter with SM86 Microphone compatible with Microflex Wireless Systems. With lightweight but durable construction and integrated diversity antennas, the MXW2 delivers vivid lifelike sound, intelligent wireless performance, encrypted transmission and advanced rechargeability for presentation and conferencing applications.

Shure MXW2 Features

  • Dual transmit antennas: Maximizes transmission strength depending on hand placement
  • Bi-directional wireless: Enables real time remote control of all wireless microphone settings
  • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute and external control
  • Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
  • Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
  • Range warning alert: Emits beeping sound when range limit is exceeded
  • Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing "link"
  • Encrypted wireless: AES 256-bit encryption for secure transmission
  • Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
  • USB charging: Connects to any standard USB power source for "always on" usage

Key Features

  • Interchangeable microphone cartridges
  • Dual transmit antennas
  • Bi-directional wireless
  • Programmable mute button
  • Standby mode enabled remotely to extend battery life
  • Wide working range

What's in the box:

  • Shure MXW2 MicroFlex Wireless Handheld Transmitter
  • SM86 Microphone
  • SB902 Battery
  • Shure Warranty
