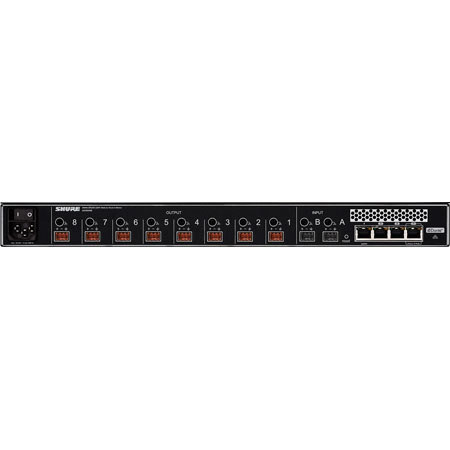

Shure Microflex Wireless 8-Channel Audio Network Interface
See all Shure items

Shure Microflex Wireless 8-Channel Audio Network Interface, 20 Hz to 20 kHz Frequency Response

SKU: SHMXWANI8

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure Microflex Wireless 8-Channel Audio Network Interface Specifications

  • Audio Frequency Response

    20 Hz to 20 kHz (+1, -1.5 dB)

  • No of Channel

    8

  • Dynamic Range

    Analog-to-Dante: 113 dB
    Dante-to-Analog: 110 dB

  • Output Noise

    Line: -84.5 dBV
    Aux: -95.2 dBV
    Mic: -106.5 dBV

  • THD+N

    <0.05%

  • Polarity

    Non-inverting, any input to any output

  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60 Hz, 1 A

  • Operating Temperature Range

    -18deg.C (0deg.F) to 63deg.C (145deg.F)

  • Storage Temperature Range

    -29deg.C (-20deg.F) to 74deg.C (165deg.F)

  • Outputs: Configuration

    Active Balanced

  • Outputs: Impedance

    310 ohm

  • Outputs: Clipping Level

    Line: +26.2 dBV
    Aux: +16.2 dBV
    Mic: -3.8 dBV

  • Inputs: Configuration

    Active Balanced

  • Impedance

    10.6 kohm

  • Clipping Level

    Line: +23.8 dBV
    Aux: +10.8 dBV

  • Headphone Output

    6.35 mm (1/4") TRS, 100 mW, 350 ohm, dual mono (will drive stereo phones)

  • Digital Signal Processing

    0 dBV=1 V RMS
    0 dBu=0.775 V RMS
    0 dBV=2.2 dBu

  • AD/DA Converter

    24-bit, 48 kHz

  • Latency

    Analog-to-Dante: 0.21 ms
    Dante-to-Analog: 0.24 ms + TN

  • Network Interface

    Four-Port Gigabit Ethernet Switch, Dante digital audio

  • Uplink Port (Port 4)

    Selectable, blocks multicast traffic

  • Power over Ethernet (PoE)

    Provided on Port 1 to power MXWAPT

  • Cable Requirements

    Cat 5e or higher, shielded, 100 m maximum between network devices

  • Network Addressing Capability

    DHCP, link-local, static

  • Dimensions (H x W x D)

    44 x 483 x 366 mm / 1.73 x 19.01 x 14.40"

  • Weight

    3.2 kg / 7.05 lbs

  • UPC Code

    042406250115

About Shure Microflex Wireless 8-Channel Audio Network Interface

Shure Microflex Wireless 8-Channel Audio Network Interface Features

  • Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and NetworkedCharging Stations, third party control systems and corporate networks
  • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
  • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
  • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
  • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
  • PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
  • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
  • Headphone output: Solo audio signal on any channel

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Front panel controls
  • Headphone output: Solo audio signal on any channel
