Shimbol ZO500 500' Line-of-Sight Dual HDMI Wireless Video Transmission System

SKU: SHMZO500 MFR: ZO500
Earn VIP Reward Points

Key Features

  • Achieve reliable wireless video transmission up to 500' with the Shimbol ZO500 system.
  • Enjoy low latency (80ms) HDMI wireless video for real-time monitoring on set or in studio.
  • This affordable wireless system offers HDMI input/output for versatile camera setups.
  • Power your transmitter via USB-C or NP-F battery for on-the-go, long-range shooting.
  • High resolution: Supports up to 1080p60 for crystal-clear wireless broadcast quality.
  • Compact & lightweight design ensures ease of use; perfect for gimbals and mobile setups.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shimbol ZO500 Specifications

Transmitter

Transmitter

Jump to...
  • Interface

    HDMI Input/ HDMI Output

  • Powered by

    5V Type-C/NP-F Battery

  • Power Consumption

    <3W

  • HDMI Input

    720P@50/60Hz
    1080I@50/60Hz
    1080P@24/25/30/50/60Hz

  • HDMI Output

    720P@50/60Hz
    1080I@50/60Hz
    1080P@24/25/30/50/60Hz

  • Dimensions

    4.05 x 2.5 x 0.63" (103 x 63.5 x 16mm)

  • Weight

    4.23 oz (120g)

Receiver

Jump to...
  • Interface

    2x HDMI Output

  • Powered by

    5V DC/NP-F Battery

  • Power Consumption

    <2.5W

  • HDMI Output

    720P@50/60Hz
    1080I@50/60Hz
    1080P@24/25/30/50/60Hz

  • Dimensions

    4.05 x 2.5 x 0.63" (103 x 63.5 x 16mm)

  • Weight

    4.23 oz (160g)

General

Jump to...
  • Transmission Frequency Band

    5GHz

  • Transmit power

    17dBm

  • Transmission Delay

    80ms, Noisy RF environment 120ms typical

  • Receiving sensitivity

    -80dBm

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    2

  • UPC Code

    6974223640029

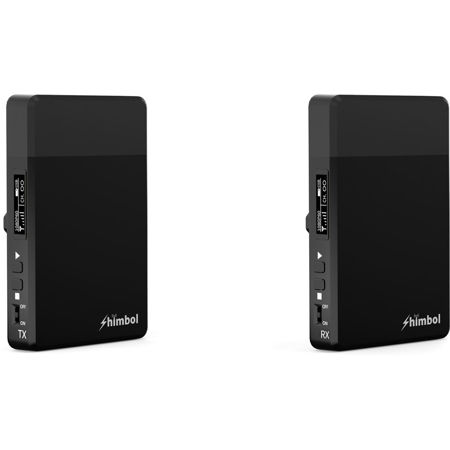

About Shimbol ZO500

The ZO500 HDMI Wireless Video Transmission System from Shimbol provides wireless monitoring to your vlogging, web series, and indy content creation. Powered via USB Type-C input or Sony L-Series batteries, this compact transmitter and receiver set transmits up to 1080p60 video with less than 1 ms latency in a line-of-sight range up to 500'. The ZO500 transmitter features one HDMI input and one HDMI loop output while the receiver has two HDMI ports for outputting to monitors.

Shimbol ZO500 Features

  • 500' Transmission distance
  • Built-In-antenna
  • Lightweight and portable
  • Transfer picture quality 1080P60HD
  • 0.08S Low Latency
  • Dual HDMI interfaces
  • Low Power consumption
  • Working in silent mode

Product Documents

User Manual

Key Features

  • Achieve reliable wireless video transmission up to 500' with the Shimbol ZO500 system.
  • Enjoy low latency (80ms) HDMI wireless video for real-time monitoring on set or in studio.
  • This affordable wireless system offers HDMI input/output for versatile camera setups.
  • Power your transmitter via USB-C or NP-F battery for on-the-go, long-range shooting.
  • High resolution: Supports up to 1080p60 for crystal-clear wireless broadcast quality.
  • Compact & lightweight design ensures ease of use; perfect for gimbals and mobile setups.

What's in the box:

  • Transmitter
  • Receiver
  • USB Type-C Power Cable
  • User Manual
  • (Battery and HDMI Cable Not Included)
  • Shimbol 1 Year Limited Warranty
