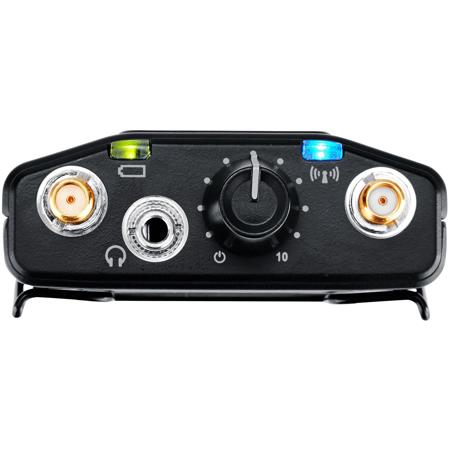

Shure P10R+ Low Profile Twin Antenna Diversity Bodypack Receiver
See all Shure items

Shure P10R+ Low Profile Twin Antenna Diversity Bodypack Receiver for PSM 1000 Personal Monitor System

SKU: SHP10RPLUS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shure AD4D: Picture 1 regular
Shure AD4D 2-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$4,676.00$3,741.00
Shure AD4Q-DC: Picture 1 regular
Shure AD4Q Quad-Channel Wireless Receiver with Redundant DC Power, A: 470-636MHz
$10,277.00$8,221.00
Shure AD4Q with Power: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver with Power & RF Accessories, A: 470 to 636MHz
$9,841.00$7,873.00
Shure ADX5D: Picture 1 regular
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver,A: 470-636MHz
$3,438.00$2,750.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure P10R+ Specifications

  • Compatibility

    PSM 1000 Personal Monitor System

  • Tri-band RF Filtering

    -3 dB at 30.5 MHz from the center frequency of each band

  • Active RF Gain Control

    31 dB (adjusts RF sensitivity to provide more RF dynamic range)

  • RF Sensitivity

    2.2 MuV (20 dB SINAD) dBm, for 12dV SINAD, typical

  • Squelch Threshold

    22 dB SINAD (+/-3 dB), default setting

  • Adjacent Channel Rejection

    >70 dB

  • Intermodulation Attenuation

    >70 dB

  • Blocking

    >80 dB

  • Image Rejection

    >90 dB

  • Audio Output Power

    100 mW per output (1kHz at <1% distortion, peak power, at 16Ohms)

  • Minimum load impedance

    4Ohms

  • Output Impedance

    <1Ohms

  • Bodypack Diversity

    Yes

  • Detachable Antennas

    Yes

  • 4-Band Parametric EQ

    Low Shelf: Selectable Gain: +/-2 dB, +/-4 dB, +/-6 dB at 100Hz
    Low Mid: Selectable Gain: +/-2 dB, +/-4 dB, +/-6 dB at 160Hz, 250Hz, 400Hz, 500Hz, 630Hz, Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    High Mid: Selectable Gain: +/-2 dB, +/-4 dB, +/-6 dB at 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    High Shelf: Selectable Gain: +/-2 dB, +/-4 dB, +/-6 dB at 10 kHz

  • Volume Limiter

    Selectable: 0 dB to -48 dB in 3 dB steps

  • Volume Lock

    Selectable: 0 dB to -70 dB

  • Batteries

    AA, Shure Lithium-Ion battery

  • Battery life alkaline

    4-6 hours (continuous use)

  • Receiver Displays

    LCD

  • Battery Status

    Multi-Color LED

  • Receiver Housings

    Metal

  • Charger Options

    Docking Charger, USB Charger

  • Dimensions (HxWxD)

    99 x 66 x 23mm (3.90 x 2.60 x 0.91")

  • Weight

    158g (5.57 oz)

About Shure P10R+

Shure's P10R+ is a low-profile, diversity bodypack receiver for use with the PSM 1000 Personal Monitor System. With a hybrid analog/digital architecture, the P10R+ twin-antenna diversity Bodypack Receiver offers the highest level of sound personalization yet, putting category-leading audio quality, robust RF performance and touring-grade features right at your fingertips.

Its advanced digital signal processing technology delivers unparalleled audio quality with more headroom, better stereo separation and higher fidelity. With premium features like full bandwidth RF scan, Precision Front-End RF Filtering and Automatic RF Gain Control, P10R+ meets the needs of professional audio applications of all sizes, including IEM and IFB applications.

Touring-Grade Design and Performance
• Twin-antenna diversity bodypack receivers with advanced digital signal processing technology dramatically improve signal reception and increase range
• Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
• CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
• MixMode technology combines two separate audio channels for simultaneous listening in both ears or transmit two independent IFB program feeds
• Compatibility with PSM 900 receivers (in the same frequency range) facilitates streamlined inventory management for rental and touring needs

Robust RF Performance and Networked Control
• Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts and fewer audible artifacts
• Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
• Networked frequency coordination simplifies setup for high channel counts.• Full bandwidth scan from the P10R+ bodypack receivers finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
• IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly

Exceptional Audio Quality
• Advanced digital signal processing technology in the P10R+ receivers deliver more headroom, improved stereo separation and higher audio fidelity
• Patented Audio Reference Companding offers natural and transparent sound

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure P10R+ Low Profile Twin Antenna Diversity Bodypack Receiver
  • Shure 2 Year Warranty
