The full bandwidth RF scan is an advanced feature of the P10R that ensures optimal signal stability and channel availability. This allows for seamless audio transmission, making it an essential tool for performers on stage or in live settings.
The Automatic RF Gain Control is a feature that enhances signal stability by automatically adjusting the receiver's gain. This ensures your performance is never interrupted by signal loss or interference.
CueMode is a patent-pending feature of the P10R that allows for the monitoring of different stage mixes, storing up to 20 separate channels from one bodypack. This means quick and easy mix reference, giving performers the flexibility to adjust their audio experience on the fly.
The P10R Wireless Diversity Bodypack Receiver is specifically designed for use with the PSM 1000 Personal Monitor System. It may not be compatible with other personal monitor systems.
The P10R Wireless Diversity Bodypack Receiver is a wireless device, providing greater flexibility and ease of use in live performance settings.
Review Summary
PSM 1000 Personal Monitor System
H22: 518-584MHz, X55: 941-960MHz
Tri-Band, Dual Stage 3-Pole Chebyshev
Adjusts Receiver RF Sensitivity to provide 31 dB more RF Dynamic Range
22 dB SINAD (+/-3 dB) default setting
2.2 MuV at 20 dB SINAD
>90 dB typical
>70 dB
>50 dB (referenced to 30 dB SINAD with -80 dBm on channel signal at 45 kHz deviation of a 1 kHz tone) >70 dB for 12 dB SINAD
>80 dB
100 mW (per output) 1 kHz at <1% distortion, peak power, at 32Ohms
9.5Ohms
Selectable: +2 dB, +4 dB at 10 kHz
Selectable: 3-9 Limits volume adjustment knob.
Selected value analogous to volume knob increment
6 hours typical using AA batteries
Required, Included
Alkaline
AA
2
3.90 x 2.60 x 0.91" (99 x 66 x 23mm)
6.91 oz (196g) (with 2 AA batteries)

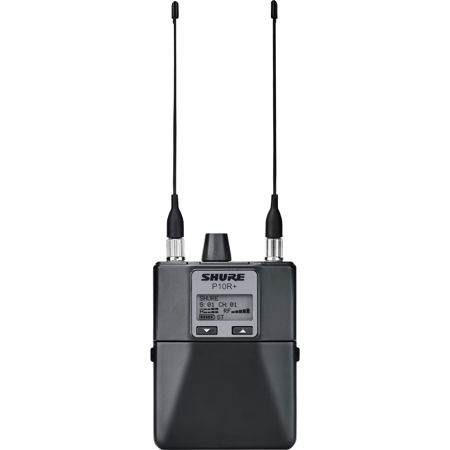

The P10R is a low-profile, diversity bodypack receiver for use with the PSM1000 Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference.
