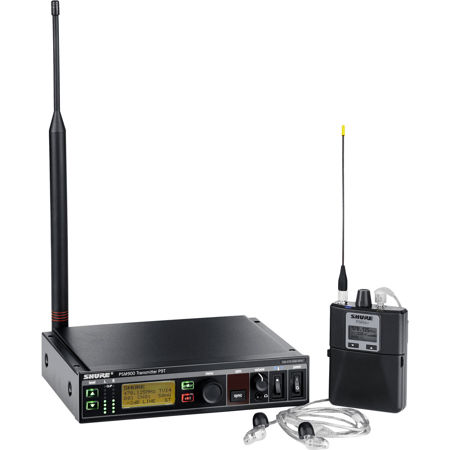

Shure PSM 900 Wireless Personal Monitor System with SE425 PRO Sound Earphone H21: 542-578MHz

SKU: SHP9TRACLH21 MFR: P9TRA425CL-H21
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with Shure PSM 900 in-ear monitors for crystal-clear audio.
  • Enjoy a comfortable fit with SE425 PRO earphones, perfect for long performances or studio sessions.
  • Achieve excellent noise isolation, blocking distractions so you can focus on your music or performance.
  • Durable Shure wireless personal monitor system designed for the rigors of live stage & touring use.
  • Low latency ensures real-time audio monitoring, keeping you perfectly in sync with your band.
  • Get great value with this complete wireless in-ear system, including transmitter, receiver & earphones.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure PSM 900 Wireless Personal Monitor System with SE425 PRO Sound Earphone Specifications

System
  • Available RF Carrier Ranges

    G6: 470-506MHz, G7: 506-542MHz, H21: 542 to 578MHz

  • Compatible Frequencies

    Per band: 20

  • Tuning Bandwidth

    36-40MHz

  • Operating Range

    300' (90m) environment dependent

  • Audio Frequency Response

    35Hz-15kHz +/- 1dB

  • Signal-To-Noise Ratio

    90 dB (typical) (A-Weighted)

  • Total Harmonic Distortion

    <0.5% (typical) (ref. +/-34 kHz deviation @1 kHz)

  • Companding

    Patented Shure Audio Reference Companding

  • Spurious Rejection

    >80 dB (typical) (ref. 12dB SINAD)

  • Frequency Stability

    +/-2.5 ppm

  • MPX Pilot Tone

    19 kHz ( +/-0.3 kHz)

  • Modulation

    FM, MPX Stereo

  • Operating Temperature

    -0.4 Degree F to 134.6 Degree F (-18 Degree C to 57 Degree C)

P9RA Bodypack Receiver

Jump to...
  • Tri-Band RF Filtering

    -3 dB at 30.5MHz from the center frequency of each band

  • Active RF Gain Control

    31 dB
    Adjusts RF sensitivity to provide more RF dynamic range

  • Active RF Sensitivity

    Image Rejection >90 dB (at 20 dB SINAD 2.2 microV)

  • Adjacent Channel Rejection

    >70 dB

  • Squelch Threshold

    22 dB SINAD ( +/-3 dB) default setting

  • Intermodulation Attenuation

    >50 dB

  • Blocking

    >80 dB

  • Audio Output Power

    100 mW (per output) (1kHz @ <1% distortion, peak power, @32 Ohm)

  • Minimum Load Impedance

    9.5 Ohm

  • High Boost

    Selectable: +2 dB, +4 dB @ 10 kHz

  • Volume Limiter

    Selectable: 3-9
    Limits volume adjustment knob. Selected value analogous to volume knob increment.

  • Battery Life

    4-6 hours (continuous use) AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.9 x 2.6 x 0.9" (99 x 66 x 23mm)

  • Weight

    With Batteries: 7.05 oz (200g)

P9T Transmitter

Jump to...
  • RF Output Power

    Selectable: 10, 50, 100 mW (+20 dBm)

  • RF Output Impedance

    50 Ohm (typical)

  • Power Requirement

    100-15V AC, 415 mA, typical

  • Connector Type

    Combination XLR and 1/4" (6.35mm) TRS

  • Connector Type

    Combination XLR and 1/4" (6.35mm) TRS

  • Polarity

    XLR: Non-inverting (pin 2 positive with respect to pin 3)
    1/4" (6.35mm) TRS: Tip positive with respect to ring

  • Configuration

    Electronically balanced

  • Configuration

    Electronically balanced

  • Impedance

    70.2 k Ohm (actual)

  • Impedance

    70.2 k Ohm (actual)

  • Nominal Input Level

    Switchable: +4 dBu, -10 dBV

  • Maximum Input Level

    +4 dBu: +29.2 dBu
    -10 dBV: +12.2 dBu

  • Pin Assignments

    XLR: 1=ground, 2=hot, 3=cold
    1/4" (6.35mm) TRS: Tip=hot, Ring=cold, Sleeve=ground

  • Phantom Power Protection

    Up to 60 V DC

  • Dimensions (H x W x D)

    1.65 x 7.75 x 6.53" (42 x 197 x 166mm)

  • Weight

    29.98 oz (850g)

About Shure PSM 900 Wireless Personal Monitor System with SE425 PRO Sound Earphone

PSM 900 Personal Monitor Systems offer superb audio quality, robust RF performance, and category-leading features, including CueMode, which allows the monitoring of different mixes with the touch of a button. Precision front-end RF filtering significantly reduces dropouts, and the enhanced digital stereo encoder provides excellent stereo separation and audio clarity.

Includes P9T transmitter, P9RA rechargeable bodypack receiver, SE425-CL Sound Isolating Earphones, power supply, protective bumpers with 8 screws, rackmount kit, 2 AA batteries, 2' BNC cable, BNC bulkhead adapter, zipper bag, and user guide.


- P9T Half-Rack Wireless Transmitter -
The P9T is a half-rack wireless Transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM900 Wireless Personal Monitor System.

It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.

Connections include balanced 1/4" and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation


- P9RA Wireless Bodypack Receiver -
The Shure P9RA is a compact, stereo bodypack receiver for use with the PSM 900 In-Ear Personal Monitoring System. It offers premium features like RF Scan and Automatic Gain Control for unparalleled RF stability and channel availability, all packed in the thinnest form factor available.

Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy reference.


- SE425 PRO Professional Sound Isolating Earphones -
SE425 Professional Sound Isolating Earphones provide accurate, natural sound through dual high-definition drivers. The discrete, secure design includes a detachable cable with wireform fit to keep earphones in place and cables out of the way. Sound Isolating technology blocks up to 37 dB of outside noise. Includes a premium carrying case, 1/4" adapter, and fit kit with a wide selection of sleeves for a custom fit.

Shure PSM 900 Wireless Personal Monitor System with SE425 PRO Sound Earphone Features

  • P9T Half-Rack Wireless Transmitter
  • RF Mute Switch allows system setup without causing RF interference
  • Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
  • Front panel audio input gain adjustment and LED level meter with clipping indicator
  • Front or back mountable antennas
  • Compatible with PA421B and PA821B antenna combiners
  • Loop out connectors for multiple mix setups and easy installation
  • Switchable +4 dBu and -10 dBV input level
  • Balanced, 1/4" and XLR connectors
  • Bit-mapped, backlit LCD
  • Includes rack-mounting hardware
  • 1/8" headphone out on the front panel for easy monitoring
  • P9RA Wireless Bodypack Receiver
  • Features an additional adjustable gain for longer battery life. It can also be used with the Shure SB900 Li-Ion rechargeable battery. Also features an improved Mixmode channel separation
  • Ultra-thin, low profile bodypack allows discreet placement on the performer
  • Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
  • RF Scan: stand where the artist will be on stage and instantly check RF level
  • Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
  • Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
  • Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
  • Separate, easily visible audio and RF status indicator LED's
  • Audio level and battery life metering
  • Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
  • Volume and balance controls
  • Extruded aluminum construction for rugged dependability
  • SE425 PRO Professional Sound Isolating Earphones
  • Dual high-definition drivers deliver accurate, natural sound in a discrete, durable design
  • Sound Isolating design featuring fit kit with a variety of sleeves blocks up to 37 dB of outside noise so you can hear the details of your music
  • Secure, over-the-ear design ensures earphones stay in place and cables out of the way for unmatched, long-wearing comfort
  • Gold-plated MMCX connector has a lock-snap mechanism allowing 360-degree rotation for a comfortable fit
  • Detachable cable is durable enough to withstand everyday wear, yet allows for easy replacement in case of damage
  • Includes a zippered carrying case and fit kit with selection of sleeves

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior sound quality with Shure PSM 900 in-ear monitors for crystal-clear audio.
  • Enjoy a comfortable fit with SE425 PRO earphones, perfect for long performances or studio sessions.
  • Achieve excellent noise isolation, blocking distractions so you can focus on your music or performance.
  • Durable Shure wireless personal monitor system designed for the rigors of live stage & touring use.
  • Low latency ensures real-time audio monitoring, keeping you perfectly in sync with your band.
  • Get great value with this complete wireless in-ear system, including transmitter, receiver & earphones.

What's in the box:

  • P9T Half-Rack Wireless Transmitter
  • P9RA Wireless Bodypack Receiver
  • SE425 PRO Professional Sound Isolating Earphones
  • Rackmount Hardware
  • Protective Bumpers with 8x Screws
  • PS41 Power supply
  • 2x AA Alkaline Batteries
  • 2' BNC Cable
  • BNC Bulkhead Adapter
  • Zipper Bag
  • User Manual
  • Shure 2 Year Limited Warranty
