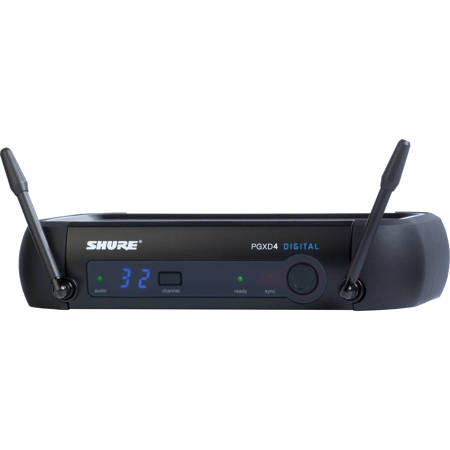

Shure PGXD4=-X8 Digital Wireless Receiver
See all Shure items

Shure PGXD4=-X8 Digital Wireless Receiver, X8 (902-928 MHz) Band, 1/4" and XLR Audio Outputs

SKU: SHPGXD4X8
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Shure AD4D: Picture 1 regular
Shure AD4D 2-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$4,676.00$3,741.00
Shure AD4Q-DC: Picture 1 regular
Shure AD4Q Quad-Channel Wireless Receiver with Redundant DC Power, A: 470-636MHz
$10,277.00$8,221.00
Shure AD4Q with Power: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver with Power & RF Accessories, A: 470 to 636MHz
$9,841.00$7,873.00
Shure ADX5D: Picture 1 regular
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver,A: 470-636MHz
$3,438.00$2,750.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure PGXD4=-X8 Specifications

  • Housing

    ABS

  • Audio Output Level

    (ref. +/- 38 kHz deviation, 1 kHz tone) XLR connector (into 3000 Ohm load): -2.5 dBV
    1/4 inch connector (into 10000 Ohm load): +10 dBV

  • Impedance

    XLR: 50 ohms
    1/4 inch: 50 ohms

  • Sensitivity

    -102 dBm @ 10-5 BER

  • Audio Output Level (1 kHz tone)

    XLR connector: -2.5 dBV (into 3 kOhm load)
    6.35 mm (1/4") connector: +10 dBV (into 10 kOhm load)

  • Audio LED

    Red: 2 dB below clip
    Amber: 12 dB below clip
    Green: 50 dB below clip

  • Power Requirements

    12-18 Vdc at 150 mA, supplied by external power supply (tip positive)

  • Pin Assignments

    XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
    TRS: Tip=audio, Ring=no audio, Sleeve=ground

  • RF Carrier Range

    X8: 902-928 MHz

  • Audio Frequency Response

    20-20000 Hz

  • Dynamic Range

    >108 dB, A-weighted

  • Operating Temperature Range

    -18deg.C (0deg.F)- +50deg.C (122deg.F)

  • Dimensions (H x W x D)

    40mm x 181mm x 104mm(1.6" x 7.125" x 4.1")

  • Weight

    289 g (10.2 oz)

  • UPC Code

    042406190657

0 Accessories for Shure PGXD4=-X8 Digital Wireless Receiver, X8 (902-928 MHz) Band, 1/4" and XLR Audio Outputs

About Shure PGXD4=-X8

The Shure PGXD4=-x8 features 24-bit/48 kHz digital technology for incredibly accurate sound. It quickly and easily provides a clear channel using scan and sync feature. It offers true digital diversity for a rock-solid wireless signal, 900 MHz operation free from TV signal interference and up to 5 compatible systems per frequency band.

Shure PGXD4=-X8 Features

  • 24-bit/48 kHz digital technology for incredibly accurate sound
  • Automatic frequency selection locates a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • True digital diversity for rock-solid wireless signal reliability
  • Up to 5 compatible channels per frequency band

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 24-bit/48 kHz digital technology
  • Automatic frequency selection locates a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • True digital diversity for rock-solid wireless signal reliability
  • Up to 5 compatible channels per frequency band

What's in the box:

  • Shure PGXD4 Digital Wireless Receiver
  • 2 AA Batteries
  • User Guide
  • Shure Warranty
