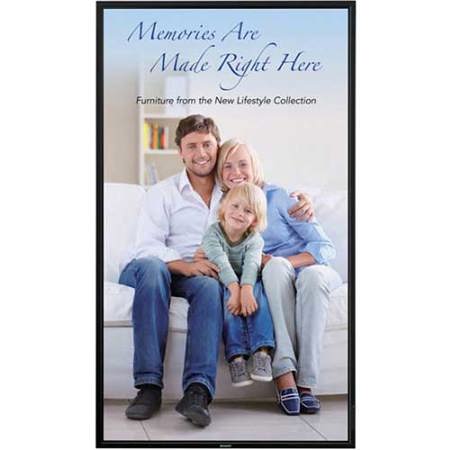

Sharp PN-E803 80" Class Full HD Commercial LED Monitor, 1920x1080

Whether in 80-inch form, Sharp's sleek PN-E803 monitors offer a sophisticated way to convey your message. They combine full-HD image quality and improved energy eff-iciency with professional-use durability and round-the-clock dependability. The versatile operation and stunning images of these monitors make them ideal for a variety of applications. Wherever you need high-impact professional monitors to get your meaning across-in retail spaces, hotel lobbies, conference rooms and elsewhere-the PN-E803 will grab and keep the attention of your target audience.

• 80" Class (80" diagonal) Screen Size
• Optional Media Player PC
• Built-in 10W per Channel Stereo Audio System
• Landscape and Portrait Mode Compatible
• Engineered for 24/7 Commercial Use
• 3-Year Limited Warranty
• Brilliant High Definition (1920 x 1080) UV2A LED Display
• Thin and Lightweight Design using full-array LED Backlighting

Superb Image Quality
PN-E803 LCD panels incorporate Sharp's UV2A technology, which prevents light leakage and ensures highly efficient use of light from the backlight. Thanks to this technology, the monitors achieve truly bright whites and extremely deep blacks. All three models support full-HD (1920 x 1080 pixel) resolution, for beautifully clear rendering of detailed text and graphics.

Thin, Lightweight Design
Streamlined for a pleasing appearance and minimal protruding parts, these professional LCD monitors boast exceptionally thin profiles. At their thickest point, PN-E803 measures only 96 mm (3 3/4"). The thin and lightweight design of PN-E803 monitors gives them a stylish profile and facilitates easy installation in a variety of settings.

Choice of Screen Size and Installation Mode
The choice of screen sizes-80 inches means you can select the high-quality professional LCD monitor that's right for the type of content you plan to show and for your specific installation purposes. These monitors can be installed in either a landscape or a portrait orientation. Portrait mode offers the look and impact of a poster, while landscape mode puts wide images on vivid display. Optimize your choice and maximize your audience impact.

24/7 Operation
Built solid, the PN-E803 monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.

Sharp Digital Signage Software
Sharp Digital Signage Software is versatile management software that provides total support for the creation, scheduling, distribution and display of a wide range of content for the PN-E803. To meet the various needs of its customers, Sharp offers different versions of the software: PN-SS01 for stand-alone systems; PN-SS02 Network, PN-SS05 Pro and PN-SW05 Pro Web Server versions for networked systems; and PN-SV01 Viewer Version.

Image Quality and Functions

Dual-Screen Display
PiP (Picture-in-Picture) mode allows an AV-sourced image to be displayed within a PC-sourced one (or vice versa), whereas PbyP (Picture-by-Picture) mode puts images from AV and PC sources side by side for split-screen viewing.

Enlarge (Zoom) Display Mode
Multiple monitors can be grouped together to display one enlarged image, thanks to Enlarge (Zoom) Display mode, which corrects the framing of that image to eliminate misalignment between monitors.

Mirror Display Mode (Daisy Chain)
With Mirror Display mode, the same image can be displayed on a daisy chain of PN-E803 monitors for the powerful impact of image repetition. A maximum of 25 monitors can be daisychained via DisplayPort and up to five monitors via DVI-D cable.

User-Friendly Design

Energy Efficient
Compared to conventional CCFL backlighting, LED backlighting on the PN-E803 monitors helps ensure reliable performance with low power consumption-roughly 55% less energy use for the PN-E603 and 44% less for the PN-E703.

vironmentally Friendly Design
These LCD monitors conform to the RoHS Directive restricting the use of hazardous substances.

Built-In Speakers
Built-in speakers eliminate the need for external speakers and keep the PN-E803 monitors stylishly streamlined. The speakers emit sound from both sides of the monitors, making them ideal for conveying audio information and playing location-appropriate background music.

VESA-Compliant Mounts
VESA-compliant mounts provide right/left pivot and swivel, ensuring a high level of safety when LCD monitors are mounted on a wall or suspended from a ceiling.

Reliability/Durability

Power on Delay
The Power on Delay function allows a time delay between the startup of each monitor in video walls or multi-monitor installations. This reduces the load placed on the power supply when a number of monitors are turned on at the same time.

Fanless Architecture
Fanless architecture maintains airflow and dissipates heat without the use of mechanical air-ventilation fans, which can attract dust and create noise. This fanless design also facilitates monitor maintenance.

Built-In Temperature Sensor
Should the temperature inside a monitor rise, a built-in sensor will detect it and the backlight system will automatically adjust to keep the temperature within operational level.

Display Management

ID Setting
Thanks to an RS-232C interface, PN-E803 monitors can be easily controlled and monitored from a central location via a PC. Each monitor can be assigned an individual ID code that specifies it when remotely turning it on or off, switching its input or making various screen adjustments and settings to it.

Scheduling
For total ease of operation, the Schedule function allows up to eight settings to be pre-programmed for automatic monitor turn on/off at precise times on a daily, weekly or one-time basis.

Log Saving/Output
To boost the troubleshooting efficiency of service technicians, operating logs, signal changes, information on operating irregularities and other such data can be saved and tracked.

Hardware Diagnostics
The Hardware Diagnostics function detects any irregularities in power supply voltage and indicates it on the monitor.

E-Mail Notification
With the E-Mail Notification function, display status updates will be sent periodically to a specified e-mail address. A notice will also be sent if a malfunction occurs.

Web Browser Setting
Sharp LCD monitors can be easily operated through a Web browser and monitor control software.

SNMP Support
Display status, continuous operating time and other parameters can be monitored over a local area network using Simple Network Management Protocol (SNMP).

Self Adjust Function
With an analogue PC connection, when a change occurs to the input signal timing, the clock phase will automatically adjust accordingly.
