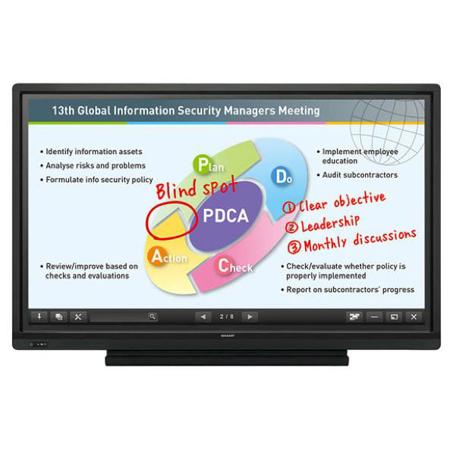

Sharp AQUOS BOARD PN-L603A 60" Edge Lit LED Backlight Landscape Touchscreen Full HD Interactive Display System with Touch Pen Software,1920x1080

The Sharp AQUOS BOARD PN-L703A/703B/603A/603B are designed for smooth and effortless communication in a wide range of contexts. Their highly responsive touch pens allow several people to write on the same screen at the same time. And Sharp's Touch Display Link software enables multifaceted wireless communication. Whether in the boardroom or the classroom, Sharp changes the way you communicate.

Simple, Intuitive Operation Lets You Focus on Interacting
Simultaneous Writing
Recognizing up to 10 points of contact, the PN-L703A/703B and PN-L603A/603B multi-touch LCD monitors allow up to four people to write on the screen at the same time using touch pens or fingers. Participants can take an active part in meetings, brainstorming sessions, classroom interactions and more. Discussions and presentations become platforms for effective and lively exchanges of opinions.

User-Friendly Pen Software Interface
Using a touch pen, you can easily launch and display the Pen Software user interface-a menu comprising smartly arranged icons that provide easy access to pen settings and functions. Each touch pen has its own dedicated menu, which can be displayed even when up to four people are writing on the screen at the same time. Pen settings such as color and line thickness can be set for each touch pen (with function buttons).

Smooth, Highly Responsive Touch Pen
The dedicated touch pen with function buttons is so smooth and light that using it is like writing on paper. A pressure sensor at the tip of this slim and lightweight pen lets you write with high precision and with an effortless and uninterrupted flow.

Handwriting Recognition
These LCD monitors feature a handwriting recognition function for converting selected onscreen handwriting into standard text. This convenient function allows you to utilize onscreen content to make neat and legible minutes of your meetings.

Work Smarter with Touch Display Link
Touch Display Link 2.0 software supports effective and multifaceted communication. Onscreen content-including handwritten notes and drawings made in real time-can be viewed simultaneously on the AQUOS BOARD display and mobile devices such as PCs, tablets and smartphones. Touch Display Link facilitates interactive presentations, lively discussions and paperless meetings in both business and educational settings.

Designed with True User-Friendliness in Mind
Quick Startup (PN-L703A/603A)
The whiteboard function on the PN-L703A/603A can start up quickly at a press of the power button, so that meetings get underway without delay.

Touch-Operated Onscreen Display
Pressing the Touch Menu button displays an onscreen menu that lets you easily switch input sources, change volume level or turn the touchscreen function on and off without using a remote controller.

Minimize Glare and Fingerprints
Protecting the screen is an anti-glare film that helps work to reduce glare and re sections and minimize -ngerprint soiling on the glass.

MFP Connectivity
Documents and images scanned from a color-scan-capable Sharp MFP can be imported directly to the Sharp Pen Software for display on the AQUOS BOARD system. For added convenience, image data shown onscreen-including notations-can be saved to a PC or sent directly to an MFP for printout.

• Touch Display Link enables the following interactive functions on the AQUOS BOARD display and mobile devices connected via wireless LAN: Sharing of onscreen content, Transfer of files, Interactive onscreen writing and drawing, Remote control of the AQUOS BOARD display from mobile devices
• Up to 50 mobile devices can be connected simultaneously
• Files can be exchanged between mobile devices even if they are not connected to the AQUOS BOARD display
• Users can capture onscreen images and save them on their mobile devices to make personally annotated memos (personal memo)
• Touch Display Link also connects two AQUOS BOARD interactive display systems on the same network (intranet, VPN, etc.) to enable larger-scale interactive communications

Front-Mounted Speakers
Two speakers (10W + 10W) are mounted low on the front of the LCD monitor to deliver clearer sound.

A Wealth of Input/Output Terminals
The PN-L703A/703B and PN-L603A/603B come standard-equipped with a wealth of input/output terminals-on the side and the bottom of the monitor-to enable easy connection with a wide variety of equipment. This array of terminals includes three HDMI ports, two D-sub ports, two DisplayPort terminals (one input, one output) and two touchscreen-supporting USB ports. One of the USB ports can be assigned to a regularly connected PC, such as a host PC used to operate the LCD monitor. The other USB port facilitates temporary connection to another PC, such as one used by a meeting participant. This allows easy PC connection without the need to switch the USB cable.
