Sharp PN-LE801 80" Class Brilliant HD Commercial LED TV with 300 Cd/m2 Bright

SKU: SHPNLE801

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sharp PN-LE801 Specifications

  • Installation

    Landscape

  • LCD Panel

    80" Class (80" diagonal) UV2A LCD

  • Max. Resolution

    1920 x 1080 pixels

  • Max.Display Colors

    1.07 billion colors

  • Pixel Pitch (H x V)

    0.9225 x 0.9225 mm

  • Max. Brightness

    350 cd/m2

  • Contrast Ratio

    5000:1

  • Dynamic Contrast Ratio

    4000000:1

  • Viewing Angle (H/V)

    176 deg./176 deg. (CR = 10)

  • Active Screen Area (W x H)

    69.73" x 39.23"

  • Response Time

    4 ms (Gray to Gray, avg.)

  • Backlight

    LED, full array

  • Video

    HDMI, Analog RGB

  • Synchronization

    Horizontal/vertical separation (TTL: positive/negative)

  • Plug & Play

    VESA DDC2B

  • Video Color System

    NTSC-M/PAL-N/PAL-M

  • Analog/Digital Tuner

    NTSC/ATSC

  • Input Terminals

    HDMI x 3, Mini D-sub 15-pin x 1, Component Video RCA (Y, Cb/Pb, Cr/Pr) x 1, Composite Video RCA pin x 2, RCA pin (L/R) x 2, 3.5 mm-diameter mini stereo jack x 1, RS-232C X 1, ANT/Cable x 1, USB X 1

  • Output Terminals

    Audio: 1x RCA pin (L/R), 1x Digital audio output (optical)

  • Input/Output Terminals

    Ethernet RJ-45 x 1

  • Speaker Output

    10 W + 10 W

  • Power Supply

    110 - 240V AC 50/60Hz

  • Power Consumption

    300W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions (WxDxH)

    71.5 x 4.5 x 41.54" (181.61 x 11.43 x 105.51cm) (approx.) (display only)

  • Weight

    110.2 lbs (49.99kg) (approx.) (display only)

  • UPC Code

    192223062023

About Sharp PN-LE801

Affordable, Commercial LCD TV to Engage Audience in a Variety of Environment

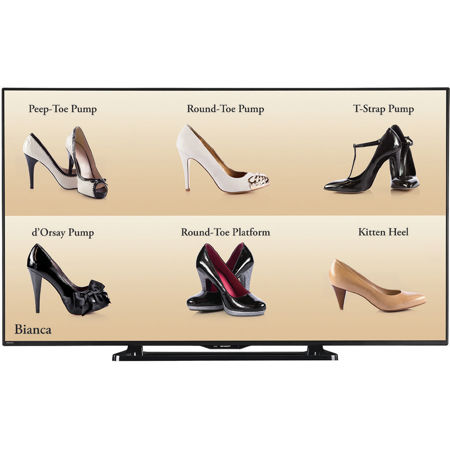

Sharp's 80" class (80" diagonal) PN-LE801 commercial LCD TV combines full-HD image quality and a stylishly thin profile with a built-in digital tuner for the ultimate display experience. The PN-LE801 has cutting-edge picture technology that delivers amazing detail and consistent color. This value priced commercial LCD TV is perfect for sports bars, retail stores and other businesses that need to grab the attention of consumers for a new level of engagement.

• 80" Class (80" diagonal) Screen Size
• Brilliant High Definition (1920 x 1080) LCD Display
• Streamlined Design using full array LED Backlighting
• RS-232C control capability
• Built-in 10W per Channel Stereo Audio System
• Built-in Digital Tuner
• 3-Year Limited Warranty
• 4000000:1 Dynamic contrast ratio

B2B Features for Ultimate Control
Business owners can easily manage the functionality of the PN-LE801 commercial LCD TV due to their many user friendly features. They include a powerful RS-232C command set, which permits flexible remote control capabilities from connected devices. In addition, displaying still images or videos couldn't be easier with the USB port. Business owners will also appreciate optimal content control with added lockout features including IR Remote, Power, Channel, Volume, Input, OSD disable and LED disable. All this with 16/7 reliability and a three-year limited commercial warranty.

Superb Image Quality
The PN-LE801 commercial LCD TV have cutting-edge picture technology that deliver amazing detail, gorgeous color depth and consistent image quality. The advanced pixel structure of the panel enables stunning 4 million : 1 dynamic contrast for deeper blacks and whiter whites.

Bigger Screen, Slimmer Bezel
Fit more screen in less space with the PN-LE801 commercial LCD TV. Streamlined for a pleasing appearance and minimal protruding parts, the PN-LE801 weighs only 110.2 lbs. A bezel thickness of only 5/8" makes for easy placement in offices, public places, stores and other Commercial establishments. Compared to a 75" Class (diagonal) screen, the PN-LE901 commercial LCD TV also has a 44 percent greater viewing area and the PN-LE801 has a 14 percent greater viewing area.

Enhanced Connectivity
Three (3) HDMI inputs let you connect multiple HD sources including digital signage and cable boxes. A powerful RS-232C command set permits flexible remote control capabilities from connected devices. A built-in USB port lets you present a variety of digital content. Simply insert a USB memory device into the monitor and the built-in media player starts playing your photos, music and videos, right away

Superb Support
A limited commercial three-year warranty, plus Sharp's best-in-class customer support service is included.

Built-in Speakers for Powerful Audio
Powerful 20W audio features high fidelity so all of your scenes sound as breathtaking as they look.

Unique Wallpaper Mode
When the unit is turned off, Wallpaper Mode lets you display virtually any image you choose on the screen at a reduced light level that mirrors museum conditions, so your screen blends beautifully into your installed environment-all at extremely low power.

What's in the box:

  • Sharp PN-LE801 80 " Class Brilliant HD Commercial LED TV with 300 Cd/m2 Bright
  • Sharp 3 Year Limited Warranty
