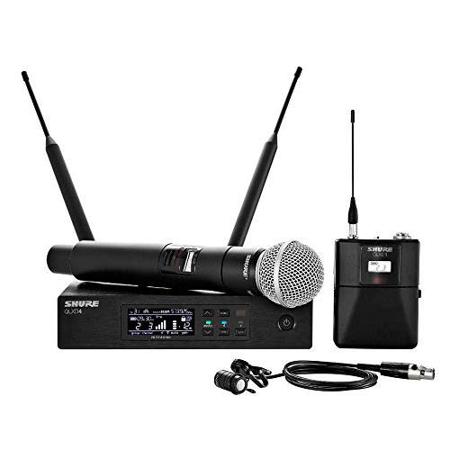

Shure QLXD124/85 Handheld and Lavalier Combo Wireless Microphone System, Includes QLXD4 Receiver, QLXD1 Transmitter, QLXD2/SM58 Microphone Transmitter and WL185 Microphone, J50A: 572 - 616MHz

SKU: SHQ12485J50A

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure QLXD124 Specifications

Receiver

Receiver

Jump to...
  • RF Carrier Frequency Range

    J50A: 572 - 616MHz

  • Working Range

    328' (99.98m)

  • RF

    Tuning Step Size: 25 kHz, varies by region

  • Image Rejection

    Greater than 70 dB, typical

  • RF Sensitivity

    -97 dBm at 10-5 BER

  • Latency

    Less than 2.9 ms

  • Audio Frequency Response

    QLXD1: 20 Hz - 20 kHz (+/-1 dB)
    QLXD2: Dependent on microphone type

  • Audio Dynamic Range

    System Gain at +10: Greater than 120 dB, A-weighted, typical

  • Total Harmonic Distortion (THD)

    -12 dBFS Input, System Gain at +10: Less than 0.1%

  • Polarity

    System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output

  • Operating Temperature Range

    0 to 122 deg. F (-18 to 50 deg. C)

  • Storage Temperature Range

    -20 to 165 deg. F (-29 to 74 deg. C)

  • Housing

    Steel

  • RF Input: Spurious Rejection

    Greater than 80 dB, typical

  • RF Input: Connector Type

    BNC

  • RF Input: Impedance

    50 ohms

  • Audio Output: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Audio Output: Configuration

    1/4" (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Audio Output: Impedance

    1/4" (6.35 mm), 100 ohms (50 ohms Unbalanced)
    XLR: 100 ohms

  • Audio Output: Full Scale Output

    1/4" (6.35 mm), +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV Mic/Line Switch: 30 dB pad

  • Audio Output: Phantom Power Protection

    1/4" (6.35 mm), Yes
    XLR: Yes

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Ethernet Cable Length

    328' (99.98m)

  • Power Requirement

    12 VDC at 0.4 A, supplied by external power supply (tip positive)

Bodypack Transmitter

Jump to...
  • Applications

    Live Vocals
    Presentation
    Theater
    Instrument

  • Frequency Range

    20 Hz to 20 kHz

  • Band

    J50A: 572 - 616MHz

  • Housing

    Cast aluminum

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime

    At 10 mW:
    Shure SB900A: up to 10 hours
    Alkaline: up to 9 hours

  • Audio Input: Connector

    4-pin male mini connector (TA4M)

  • Audio Input: Configuration

    Unbalanced

  • Audio Input: Impedance

    1 MOhms

  • Audio Input: Maximum Input Level

    8.5 dBV (7.5 Vpp) (1 kHz at 1% THD)

  • Audio Input: Preamplifier (EIN)

    -120 dBV, A-weighted, typical
    System Gain Setting >= +20

  • RF Output: Connector

    SMA

  • RF Output: Antenna Type

    1/4 wave

  • RF Output: Impedance

    50Ohms

  • RF Output: Occupied Bandwidth

    Less than 200 kHz

  • RF Output: Modulation Type

    Shure proprietary digital

  • RF Output: Power

    1 mW or 10 mW

  • Working Range

    328' (99.98m)

Microphone

Jump to...
  • Transducer

    Electret Bias

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 Hz to 17 kHz

  • Dynamic Range (Typical)

    102 dB

  • Signal-to-Noise Ratio

    18 dB SPL (A-weighted)

  • Maximum Input Sound Level

    130 dB

  • Power Requirements

    Regulated Nominal +5 VDC (2 to 10 VDC)

  • Output Impedance

    28 ohms

  • Output Connector

    TA4-Female

  • Cable Length

    4' (1.22m)

Microphone Transmitter

Jump to...
  • Applications

    Live Vocals

  • RF Carrier Frequency Range

    J50A: 572 - 616MHz

  • Working Range

    328' (99.98m)

  • RF

    Tuning Step Size: 25 kHz, varies by region

  • Image Rejection

    Better than 70 dB, typical

  • RF Sensitivity

    -97 dBm at 10-5 BER

  • Latency

    Less than 2.9 ms

  • Frequency Response

    20 Hz to 20 kHz

  • Audio Dynamic Range

    System Gain at +10: Better than 120 dB, A-weighted, typical

  • Total Harmonic Distortion (THD)

    -12 dBFS input, System Gain at +10: Less than 0.1%

  • Polarity

    System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

  • Operating Temperature Range

    0 to 122 deg. F (-18 to 50 deg. C)

  • Storage Temperature Range

    -20 to 165 deg. F (-29 to 74 deg. C)

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime

    At 10 mW:
    Shure SB900: up to 10 hours
    Alkaline: up to 9 hours

  • Audio Input: Configuration

    Unbalanced

  • Audio Input: Maximum Input Level

    145 dB SPL (SM58), typical (1 kHz at 1% THD)

  • RF Output: Antenna Type

    Integrated Single Band Helical

  • RF Output: Occupied Bandwidth

    Less than 200 kHz

  • RF Output:X52/X53/X54 Occupied Bandwidth

    600 kHz

  • RF Output: Modulation Type

    Shure proprietary digital

  • RF Output: Power

    1 mW or 10 mW

  • Capsule

    SM58

  • Housing

    Machined aluminum

General

Jump to...
  • Dimensions

    Bodypack Transmitter (H x W x D): 86 x 66 x 23mm (3.39 x 2.60 x 0.91")
    Receiver (H x W x D): 41 x 197 x 151mm (1.61 x 7.76 x 5.94")
    Microphone Transmitter ( L x Dia.): 256 x 51mm (10.08 x 2.01")

  • Weight

    Bodypack Transmitter: 4.9 oz (138.91g), without batteries
    Receiver: 1.71 lbs (0.78kg)
    Microphone Transmitter: 347g (12.24 oz), without batteries

  • UPC Code

    042406540032

About Shure QLXD124

Featuring the WL185 lavalier microphone, QLXD14/85 combines professional features with simplified setup and operation.

-- QLXD4 Digital Wireless Receiver --
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

-- QLXD1 Wireless Bodypack Transmitter --
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues and houses of worship.

-- WL185 Lavalier Condenser Microphone --
Wireless premium cardioid condenser lavalier mic for speech applications. Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise, the WL185 is an cardioid lavalier microphone with a 130 degree pickup angle. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility.

Use of windscreen highly recommended. Feature CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitters. With an interchangeable SM58 microphone cartridge, the QLXD2/SM58 Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. The QLXD2/SM58 Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.

-- QLXD2/SM58 Handheld Wireless Microphone Transmitter --
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Shure QLXD124 Features

  • -- QLXD4 Digital Wireless Receiver --
  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4" Instrument output
  • Durable aluminum construction with brushed finish
  • -- QLXD1 Wireless Bodypack Transmitter --
  • Over 120 dB of dynamic range: no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 4-Pin male mini connector (TA4M)
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  • -- QLXD2/SM58 Handheld Wireless Microphone Transmitter --
  • 24-Bit digital audio quality
  • Incredibly efficient RF spectrum usage
  • Quick syncing with a wireless receiver over IR at the push of a button
  • Clear, uninterrupted signal over the entire operating range
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range: no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • Rugged metal construction
  • Frequency and power lockout

What's in the box:

  • Shure QLXD4 Digital Wireless Receiver
  • QLXD1 Wireless Bodypack Transmitter
  • WL185 Lavalier Condenser Microphone
  • QLXD2/SM58 Handheld Wireless Transmitter
  • 4x AA Batteries
  • Battery Contact Cover
  • Microphone Clip
  • Black Zippered Pouch
  • PS23US Power Supply
  • 2x 1/2 Wave Antennas
  • 2x BNC Cables
  • 2x BNC Bulkhead Adapters
  • 5' Ethernet Cable
  • Rackmount Kit
  • Windscreen
  • Tie Clip
  • Shure 2 Year Limited Warranty
