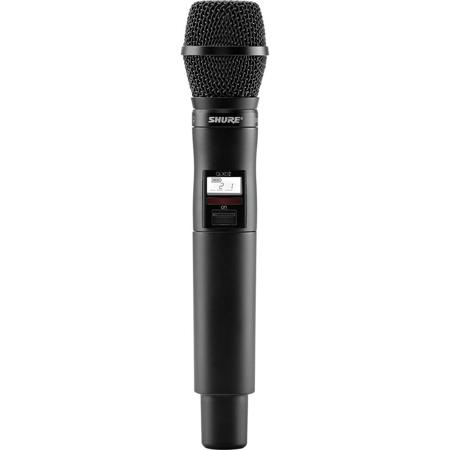

Shure QLXD2 Wireless Handheld Microphone Transmitter with SM87A Capsule G50: 470-534MHz

SKU: SHQ2SM87AG50 MFR: QLXD2/SM87=-G50
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone, perfect for live vocals.
  • Enjoy reliable Shure wireless performance for presentations, ensuring your voice is always heard.
  • The SM87A capsule delivers a supercardioid pattern, ideal for minimizing background noise.
  • This wireless handheld microphone offers up to 9 hours of continuous use with AA batteries.
  • Utilize the Shure QLXD2 for speech or performance; enjoy its durable, aluminum build quality.
  • Achieve professional sound quality with low latency; great for broadcast or live streaming setups.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure QLXD2 with SM87 Specifications

General

General

Jump to...
  • Available Frequency

    G50: 470-534MHz
    H50: 534-598MHz
    J50A: 572-616MHz
    V50: 174-216MHz
    X52: 902-928MHz

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL (SM58), typical (1 kHz at 1% THD)

RF Output

Jump to...
  • Antenna Type

    Integrated Single Band Helical

  • Occupied Bandwidth

    < 200 kHz

  • Modulation Type

    Shure proprietary digital

  • Power

    1 mW or 10 mW

Battery

Jump to...
  • Battery

    Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime @ 10 mW

    Shure SB900A: Up to 10 hours
    Alkaline: Up to 9 hours

  • Battery Info

    Required, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Housing

    Machined Aluminum

  • Dimensions (L x Dia.)

    10.1 x 2" (256 x 51mm)

  • Weight

    Without Batteries: 12.2 oz (347g)

SM87A Capsule

Jump to...
  • Case

    Aluminum construction with steel grille and satin black finish

  • Type

    Condenser

  • Frequency Response

    50 to 20,000 Hz

  • Polar Pattern

    Supercardioid

  • Sensitivity (at 1,000 Hz)

    Open circuit voltage: -52.5 dBV/Pa (2.4 mV) (1 Pa = 94 dB SPL)

  • Impedance

    Rated at 150 Ohm (100 Ohm actual +/-20%)
    Recommended minimum load impedance: 800 Ohm

  • Output Clipping Level

    1000 Ohm Load at 1,000 Hz: -6 dBV (0.5 V)

  • Maximum SPL (at 1,000 Hz)

    140.5 dB (0.25% THD, 1000 Ohm load)

  • Self-Noise

    24 dB typical, A-weighted
    26 dB typical, weighted per DIN 45 405

  • Dynamic Range (1000 Ohm)

    116.5 dB (maximum SPL to A-weighted noise level)

  • Signal-to-Noise Ratio

    70 dB at 94 dB SPL (IEC 651)
    S/N ratio is difference between 94 dB SPL and equivalent SPL of self- noise A-weighted

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • Power Requirements

    11 to 52 vdc, 1.2 mA

  • Connector

    Three-pin professional audio connector (male XLR type)

  • Dimensions (L x W)

    7.55 x 1.96" (192 x 50mm)

  • Weight

    7.05 oz (200g)

  • UPC Code

    042406344272

About Shure QLXD2 with SM87

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

SM87A Vocal Microphone
The SM87A is a rugged, lightweight supercardioid condenser microphone with superior rejection for clear reproduction of warm and accurate lead vocals. Designed with a three-stage shock mount for low self-noise, and a tight polar pattern that excludes unwanted sound sources, the SM87A is an excellent choice for sound reinforcement in noisy or reverberant environments.

Features
• Highly directional supercardioid pickup pattern
• Controlled low-frequency roll-off
• Very low RF and magnetic hum susceptibility
• Minimally affected by varying load impedance
• Built-in wind and pop filter
• Transducer element shock mounted
• Rugged construction for outstanding reliability
• Field-usable over a wide range of temperature and humidity conditions
• Accepts a wide variety of phantom power sources, including DIN 45 596 voltages of 11 and 52 Vdc

Shure QLXD2 with SM87 Features

  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsules
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range - no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (330 ft.) line-of-sight operating range
  • Rugged metal construction
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone, perfect for live vocals.
  • Enjoy reliable Shure wireless performance for presentations, ensuring your voice is always heard.
  • The SM87A capsule delivers a supercardioid pattern, ideal for minimizing background noise.
  • This wireless handheld microphone offers up to 9 hours of continuous use with AA batteries.
  • Utilize the Shure QLXD2 for speech or performance; enjoy its durable, aluminum build quality.
  • Achieve professional sound quality with low latency; great for broadcast or live streaming setups.

What's in the box:

  • Shure QLXD2 Wireless Handheld Microphone Transmitter with SM87A Capsule
  • Mic Clip
  • Battery Contact Cover
  • 2x AA Batteries
  • Zipper Bag
  • Shure 2 Year Limited Warranty
