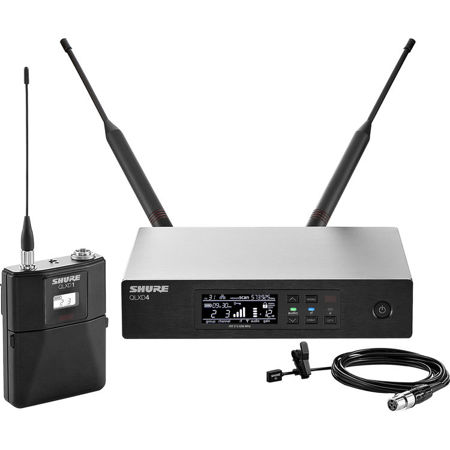

Shure QLXD14/93 Lavalier Wireless Microphone System, Includes QLXD1 Wireless Bodypack Transmitter, QLXD4 Digital Wireless Receiver and WL93 Series Subminiature Lavalier Microphone, V50: 174.120 to 215.820 MHz Frequency Band

The QLXD14/93 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family. QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels and government offices with conferencing spaces; schools, houses of worship and live performance spaces. Featuring the WL93 lavalier microphone, QLXD14/93 combines professional features with simplified setup and operation.

QLXD1 Wireless Bodypack Transmitter
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues and houses of worship. QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.

• Works with QLX-D Digital Wireless Systems
• Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
• Over 120 dB of dynamic range: no transmitter gain adjustments needed
• AES 256-bit encryption for secure transmission
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency or battery runtime
• 4-Pin male mini connector (TA4M)
• Rugged metal construction
• Detachable 1/4 wave antenna
• Frequency and power lockout

QLXD4 Digital Wireless Receiver
With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

• Works with QLX-D Digital Wireless Systems
• Features Ethernet networking and mobile monitoring and control capabilities
• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable 1/2 wave antennas
• Mic / line switchable XLR output
• 1/4" Instrument output
• Durable aluminum construction with brushed finish

WL93 Series Subminiature Lavalier Microphones
Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency roll off reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern
• Preamplifier assembly (SM93) can be pocketed, strapped to the body or clipped to belt or waistband
• Wide-range phantom powering (SM93) accepts all commonly used voltage
