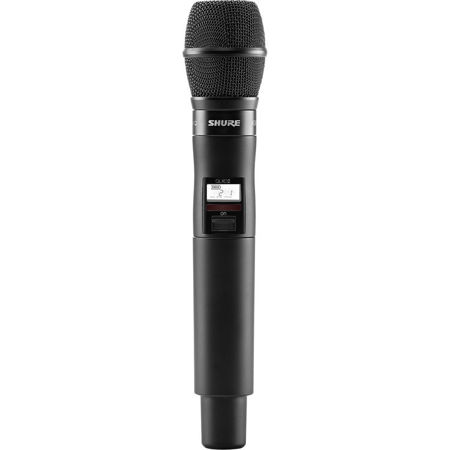

The QLXD2/KSM9 VHF Handheld Wireless Transmitter operates within the frequency band of 174.120 to 215.820 MHz.
The interchangeable KSM9 Supercardioid and Cardioid Microphone Cartridge enhances the audio quality and provides versatility, making the transmitter suitable for a variety of audio applications.
The QLXD2/KSM9 VHF Handheld Wireless Transmitter is designed to work seamlessly with QLX-D Digital Wireless Systems.
The QLXD2/KSM9 VHF Handheld Wireless Transmitter is ideal for a variety of audio applications, including presentations in corporate settings, live performances at music venues, and services in houses of worship.
When purchasing separate wireless components, it's crucial to match their frequency bands to ensure optimal system operation.
Review Summary
G50: 470-534MHz
H50: 534-598MHz
J50A: 572-616MHz
V50: 174-216MHz
X52: 902-928MHz
0 to 21 dB (in 3 dB steps)
Unbalanced
145 dB SPL (SM58), typical (1 kHz at 1% THD)
Integrated Single Band Helical
< 200 kHz
Shure proprietary digital
1 mW or 10 mW
Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
Shure SB900A: Up to 10 hours
Alkaline: Up to 9 hours
Required, Not Included
Alkaline
AA
2
Machined Aluminum
10.1 x 2" (256 x 51mm)
Without Batteries: 12.2 oz (347g)
Condenser (Electret Biased)
50 to 20,000 Hz
Cardioid, Supercardioid
150 ohms (actual)
48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
5.2 mA typical at 48 Vdc
>60 dB, 50 Hz to 20 kHz
Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3
-51 dBV/Pa (typical; at 1000 Hz; 1 Pa = 94 dB SPL)
22 dB(typical, equivalent SPL; A-weighted, IEC 651)
2500 ohms load: 152 dB
1000 ohms load: 152 dB
2500 ohms load: 6.7 dBV
1000 ohms load: 6.0 dBV
48 Vdc phantom, 5.6 mA
2500 ohms load: 130 dB
1000 ohms load: 130 dB
72 dB
7.5 x 1.93" (191 x 49mm)
10.6 oz (300g)
042406540452
The QLXD2/KSM9 Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
- KSM9 Condenser Vocal Microphone -
KSM9 microphones offer exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect. As the premier choice in handheld wireless microphone options for Axient, UHF-R, and ULX-D, KSM9 microphones are built to exacting Shure endurance standards, renowned worldwide and proven night after night, center stage.
The KSM9 is a premium vocal condenser microphone that captures vocal subtlety with extraordinary detail to deliver clear articulation, functional flexibility, and precise vocal reproduction for live performance.
Engineered to exacting standards, the KSM9 reveals nuance and subtlety in a microphone optimized for the most demanding live environments. With its dual diaphragm design and switchable polar patterns (supercardioid/cardioid), the KSM9 is the choice for the world's most accomplished vocal performances.
Features
Exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect
Dual gold layered, low-mass Mylar diaphragm design
Switchable polar patterns (supercardioid and cardioid)
Advanced suspension shock mount
Premium electronic components including Class A transformerless preamplifier circuitry
Gold-plated internal and external connectors, including XLR Output Durable aluminum housing
Available as wireless handheld transmitter SKUs
Zippered carrying case
