H50/534-598MHz
0 to 21 dB (in 3 dB steps)
Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
at 10 mW
Alkaline: up to 9 hours
Cast aluminum
4-pin male mini connector (TA4M)
Unbalanced
1 mOhms
1 kHz at 1% THD
Preamplifier Equivalent Input Noise (EIN)
-120 dBV, A-weighted, typical
SMA
1/4 wave
50 Ohms
<200 kHz
Shure proprietary digital
1 mW or 10 mW
>80 dB, typical
BNC
50 Ohms
-18 to +42 dB in 1 dB steps
1/4" (6.35mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio /+, 3=audio-)
1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms
1/4" (6.35 mm): +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
30 dB pad
1/4" (6.35 mm): Yes
XLR: Yes
Single Port Ethernet 10/100 Mbps
DHCP or Manual IP address
100 m (328 ft)
Steel
12 V DC at 0.4 A, supplied by external power supply (tip positive)
Condenser (electret bias)
50 to 17,000 Hz
Cardioid
1800 Ohms
(1 Pa = 94 dB SPL): -45.5 dBV/Pa
130.5 dB SPL
28.0 dB SPL
102.5 dB
Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
0-21 dB (in 3 dB steps)
Shure SB900 Rechargeable Li-Ion/AA batteries 1.5 V
Shure SB900: up to 10 hours
Alkaline: up to 9 hours
Machined aluminum
Unbalanced
145 dB SPL (SM58), Dependent on microphone type
Integrated Single Band Helical
<200 kHz
Shure proprietary digital
1 mW or 10 mW
50-15,000 Hz
Cardioid
-54.5 dBV/Pa (1.85 mV)
Rated impedance: 150 Ohms (300 Ohms actual) for connection to microphone inputs rated low impedance
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Dark gray, enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille
Three-pin professional audio connector (male XLR type)
QLXD1 (H x W x D): 86 x 65 x 23mm (3.38 x 2.57 x 0.92")
QLXD4 (H x W x D): 41 x 197 x 151mm (1.63 x 7.75 x 5.94")
QLXD2 (L x Dia): 256 x 51mm (10.07 x 2.00")
SM58 (L x W): 162 x 51mm (6.37 x 2.00")
QLXD1: without Batteries: 138g (4.9oz)
QLXD4: Without Antennas: 777g (27.40oz)
QLXD2 (Without Batteries): 347g (12.24oz)
SM58: 298g (10.51oz)

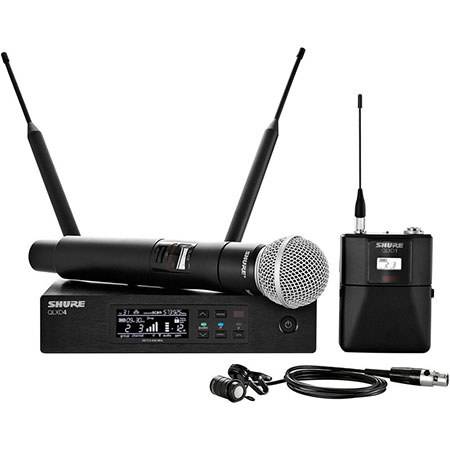

Featuring an SM58 handheld wireless microphone transmitter and WL185 lavalier microphone, QLXD124/85 (H50/534-598MHz) combines professional features with simplified setup and operation. The Shure QLXD4 is a half-rack digital wireless receiver. Ideal for presentation spaces, music venues and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac.
The Shure QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the Shure QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. Easy to use, the Shure QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330') range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
The legendary SM58 is an industry-standard, highly versatile cardioid dynamic vocal microphone that is consistently the first choice of vocal performers around the globe. Even in extreme conditions, the SM58 is tailored to target the main sound source while minimizing background noise, delivering warm and clear vocal reproduction.
The Shure WL185 is a Cardioid lavalier electret condenser microphones for use with a wireless bodypack transmitter. Each micro-phone has a 1.2m (4') cable terminated with a miniature 4-pin con-nector (TA4F). The furnished tie clip can be rotated in 90deg. intervals for placement flexibility. General purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle is 130deg..
