Review Summary
G50: 470-534MHz
H50: 534-598MHz
J50A: 572-616MHz
V50: 174-216MHz
X52: 902-928MHz
0 to 21 dB (in 3 dB steps)
Unbalanced
145 dB SPL (SM58), typical (1 kHz at 1% THD)
Integrated Single Band Helical
< 200 kHz
Shure proprietary digital
1 mW or 10 mW
Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
Shure SB900A: Up to 10 hours
Alkaline: Up to 9 hours
Required, Not Included
Alkaline
AA
2
Machined Aluminum
10.1 x 2" (256 x 51mm)
Without Batteries: 12.2 oz (347g)
Aluminum construction with steel grille and satin black finish
Condenser
50 to 18,000 Hz
Cardioid
Open circuit voltage: -50 dBV/Pa (2.4 mV) (1 Pa = 94 dB SPL)
150 Ohm (100 Ohm actual +/-20%)
Recommended minimum load impedance: 600 Ohm
1000 Ohm load at 1,000 Hz: +3 dBV (1.41 V)
1000 Ohm load (1% THD): 147 dB
23 dB typical, A-weighted
124 dB (maximum SPL to A-weighted noise level)
71 dB at 94 dB SPL (IEC 651)
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
11 to 52 Vdc, 5.2 mA
Three-pin professional audio connector (male XLR type)
7.20 x 1.93" (183 x 49mm)
10.01 oz (284g)
042406540483

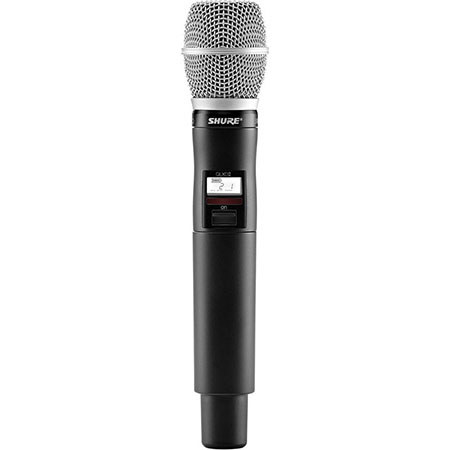

The QLXD2/SM86 Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
- SM86 Vocal Microphone -
Cardioid vocal microphone offers an extended high frequency response and rugged construction to withstand the rigors of touring. Features include a built-in 3-point shock mount to minimize handling noise and a 2-stage pop filter to reduce wind noise.
The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering a clear, studio-quality sound.
A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise.
Features
Condenser cartridge for studio quality sound
Tailored frequency response for a clear reproduction of vocals
Rugged construction withstands the rigors of touring sound
Cardioid polar pattern minimizes unwanted background noise
Excellent choice for stage monitors and personal monitors
Built-in three-point shock mount minimizes handling noise
Two-stage "pop" filter reduces wind and breath noise
