Shure QLXD14 Specifications

  • Frequency Range

    H50/534-598MHz

  • QLXD1: Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • QLXD1: Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V

  • QLXD1: Battery Runtime

    at 10 mW

  • QLXD1: Shure SB900: up to 10 hours

    Alkaline: up to 9 hours

  • QLXD1: Housing

    Cast aluminum

  • QLXD1: Audio Input Connector

    4-pin male mini connector (TA4M)

  • QLXD1: Configuration

    Unbalanced

  • QLXD1: Audio Input Impedance

    1 mOhms

  • QLXD1: Maximum Input Level

    1 kHz at 1% THD

  • QLXD1: 8.5 dBV (7.5 Vpp)

    Preamplifier Equivalent Input Noise (EIN)

  • QLXD1: System Gain Setting = +20

    -120 dBV, A-weighted, typical

  • QLXD1: RF Input Connector

    SMA

  • QLXD1: Antenna Type

    1/4 wave

  • QLXD1: RF Input Impedance

    50 Ohms

  • QLXD1: Occupied Bandwidth

    <200 kHz

  • QLXD1: Modulation Type

    Shure proprietary digital

  • QLXD1: Power

    1 mW or 10 mW

  • QLXD4: Spurious Rejection

    >80 dB, typical

  • QLXD4: Connector Type

    BNC

  • QLXD4: RF Input Impedance

    50 Ohms

  • QLXD4: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • QLXD4: Configuration

    1/4" (6.35mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio /+, 3=audio-)

  • QLXD4: Audio Input Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • QLXD4: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • QLXD4: Mic/Line Switch

    30 dB pad

  • QLXD4: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • QLXD4: Network Interface

    Single Port Ethernet 10/100 Mbps

  • QLXD4: Network Addressing Capability

    DHCP or Manual IP address

  • QLXD4: Maximum Ethernet Cable Length

    100 m (328 ft)

  • QLXD4: Housing

    Steel

  • QLXD4: Power requirements

    12 V DC at 0.4 A, supplied by external power supply (tip positive)

  • WL183: Type

    Condenser (electret bias)

  • WL183: Frequency Response

    50 to 17,000 Hz

  • WL183: Polar Patterns (at 1 kHz)

    Omnidirectional

  • WL183: Output Impedance

    1800 Ohms

  • WL183: Sensitivity

    (1 Pa = 94 dB SPL): -40.0 dBV/Pa

  • WL183: Maximum SPL

    125.0 dB SPL

  • WL183: Output Noise

    22.5 dB SPL

  • WL183: Dynamic Range

    102.5 dB

  • WL183: Polarity

    Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1

  • WL183: Power Requirements

    Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter

  • Dimensions (H x W x D)

    QLXD1: 86 x 65 x 23mm (3.38 x 2.57 x 0.92")
    QLXD4: 41 x 197 x 151mm (1.63 x 7.75 x 5.94")

  • Weight

    QLXD1: without Batteries: 138g (4.9oz)
    QLXD4: Without Antennas: 777g (27.40oz)

  • UPC Code

    042406350389

About Shure QLXD14

Over the years, Shure has established itself as a leader in audio technology, and the QLXD14/83 Lavalier Wireless Microphone System is no exception. This sophisticated system, operating within the H50 frequency band of 534-598MHz, is engineered for clarity, reliability, and performance. The package includes the QLXD1 Bodypack Transmitter, QLXD4 Digital Wireless Receiver, and the WL183 Lavalier Condenser Microphone, making it a comprehensive solution for professionals in various settings.

The QLXD4 Digital Wireless Receiver is a half-rack unit that boasts a streamlined design, ensuring a seamless integration into any setup. It is particularly well-suited for environments such as presentation spaces, music venues, and houses of worship. The receiver's automatic frequency scanning simplifies the search for an open frequency, while the one-touch IR sync function allows for quick and easy pairing with transmitters. The inclusion of Ethernet networking provides the capability for networked channel scanning and facilitates the integration with Shure's Wireless Workbench software, enabling remote adjustments of receiver settings from a PC or Mac for enhanced control and coordination.

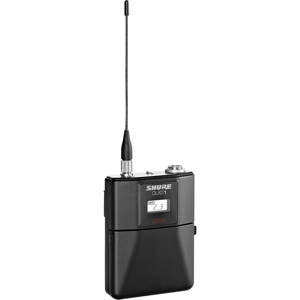

Complementing the receiver is the QLXD1 Bodypack Transmitter, a robust and user-friendly device designed for hands-free operation. Its quick IR sync capability with the receiver ensures a secure connection, while the all-metal construction provides a sturdy and reliable form factor. The transmitter's impressive range of up to 100 meters (330 feet) allows for freedom of movement without compromising signal integrity, ensuring clear audio transmission even in expansive spaces.

The system's audio capture is entrusted to the WL183 Lavalier Condenser Microphone, a discreet and versatile mic that delivers Shure's renowned sound quality. The omnidirectional pickup pattern of the WL183 ensures consistent audio capture from all directions, making it ideal for a wide array of applications, including general sound reinforcement, recording, and remote monitoring. The microphone features a 1.2-meter (4-foot) cable with a TA4F connector for secure attachment to the bodypack transmitter. Additionally, the included tie clip can be rotated at 90-degree intervals, providing flexibility in placement and ensuring a polished, professional appearance.

Overall, the QLXD14/83 Lavalier Wireless Microphone System is a testament to Shure's commitment to audio excellence. It offers users a blend of professional-grade features, ease of use, and the flexibility required for high-quality audio capture in a variety of professional settings. Whether it's for a keynote speech, live performance, or a service at a house of worship, this system delivers reliable, crystal-clear sound that Shure users have come to expect.

Shure QLXD14 Features

  • QLXD1: 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • QLXD1: Over 120 dB of dynamic range - no transmitter gain adjustments needed
  • QLXD1: AES 256-bit encryption for secure transmission
  • QLXD1: Up to 9 hours continuous use with 2 x AA alkaline batteries
  • QLXD1: Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of
  • QLXD1: Backlit LCD with easy to navigate menu and controls
  • QLXD1: 100 meter (300 feet) line-of-sight operating range
  • QLXD1: 4-Pin male mini connector (TA4M)
  • QLXD1: Rugged metal construction
  • QLXD1: Frequency and power lockout
  • QLXD4: 64 MHz tuning bandwidth (region dependent)
  • QLXD4: More than 60 preset compatible channels per frequency band (region dependent)
  • QLXD4: Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • QLXD4: Digital predictive switching diversity ensures solid RF connection
  • QLXD4: IR sync deploys selected frequency to transmitter
  • QLXD4: Ethernet networking provides streamlined setup across multiple receivers
  • QLXD4: Networked channel scan configures open frequencies for all connected receivers
  • QLXD4: AES 256-bit encryption for secure wireless transmission
  • QLXD4: Up to 60 dB of adjustable audio gain
  • QLXD4: Audio and RF LED meters with peak indicator
  • QLXD4: Detachable 1/2 wave antennas
  • QLXD4: Mic / line switchable XLR output
  • QLXD4: 1/4" instrument output
  • QLXD4: Durable aluminum construction with brushed finish
  • QLXD4: Compatible with Shure Wireless Workbench 6 control software

Key Features

  • QLXD4 receiver with automatic frequency scanning and one-touch IR sync for easy setup
  • Ethernet networking for networked channel scanning and Wireless Workbench software integration
  • QLXD1 Bodypack Transmitter with robust all-metal construction and impressive 100-meter range
  • Ideal for professional settings such as presentation spaces, music venues, and houses of worship

What's in the box:

  • Shure QLXD1 Bodypack Transmitter (H50/534-598MHz)
  • QLXD4 Digital Wireless Receiver (H50/534-598MHz)
  • WL183 Lavalier Microphone
  • Instrument Cable
  • Power Supply
  • 2 x AA Batteries
  • Two 1/2 Wave Antennas
  • 2 x BNC Cables
  • Zipper Bag
  • 2 x BNC Bulkhead Adapters
  • Rackmount Kit
  • User Guide
  • Shure Warranty
