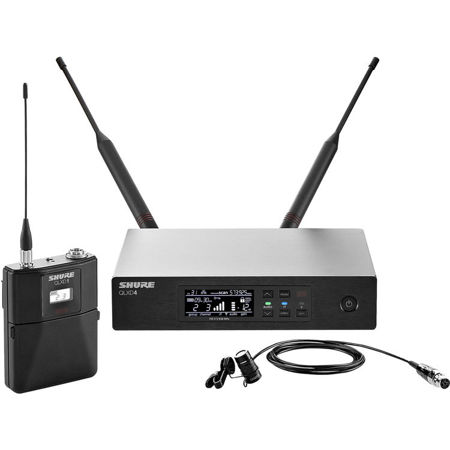

Shure QLXD14/83 Lavalier Wireless Microphone System, Includes QLXD1 Wireless Bodypack Transmitter, QLXD4 Digital Wireless Receiver, WL183 Omnidirectional Lavalier Microphone, Frequency Range X52: 902-928MHz

The QLXD14/83 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family. QLX-D Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified setup and operation, QLX-D offers outstanding wireless functionality for demanding live sound events and installations.

• 24-bit Digital Audio
• 100m (330') Range
• Ethernet Networking
• Rechargeable Power Options

Transparent 24-bit digital audio captures every performance detail
• Extended 20 Hz to 20 kHz frequency range with flat response
• Over 120 dB of dynamic range eliminates transmitter gain adjustment

Incredibly Efficient Wireless
• Wide 64 MHz tuning bandwidth
• Up to 17 compatible systems per 6 MHz TV channel

Powerful Networking Features
• Advanced frequency coordination with Wireless Workbench 6
• Remote control from an iOS device via ShurePlus Channels mobile app

Rugged & secure systems built to match demanding environments
• AES-256 encryption for secure wireless transmission
• Professional-grade all metal construction

Applications
• Musicians
• Presenters
• Houses of Worship
• Education
• Hotels and Conference Centers

QLXD1 Wireless Bodypack Transmitter
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues and houses of worship.

• Works with QLX-D Digital Wireless Systems
• Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
• Includes QLXD1, 2 AA batteries, black zippered pouch and user guide
• Over 120 dB of dynamic range: no transmitter gain adjustments needed
• AES 256-bit encryption for secure transmission
• Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency or battery runtime
• 4-Pin male mini connector (TA4M)
• Rugged metal construction
• Detachable 1/4 wave antenna
• Frequency and power lockout

QLXD4 Digital Wireless Receiver
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

• Features Ethernet networking and mobile monitoring and control capabilities
• Includes QLXD4, hardware for rack-mounting, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead Adapters and user guide
• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable 1/2 wave antennas
• Mic / line switchable XLR output
• 1/4" Instrument output
• Durable aluminum construction with brushed finish

Lavalier Condenser Microphone
Wireless premium omnidirectional condenser lavalier mic for speech applications. Recommended for general purpose sound reinforcement, recording or remote monitoring applications, the WL183 is an omnidirectional lavalier microphone with a 360 degree pickup angle and low handling noise. It has a 1.2 meter cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Feature CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitters.
