Shure QLXD14/84 WL184 Wireless Lavalier Microphone System, J50A: 572-616MHz

SKU: SHQLXD1484J5 MFR: QLXD14/84-J50A
Earn VIP Reward Points

PACKAGE INCLUDES:

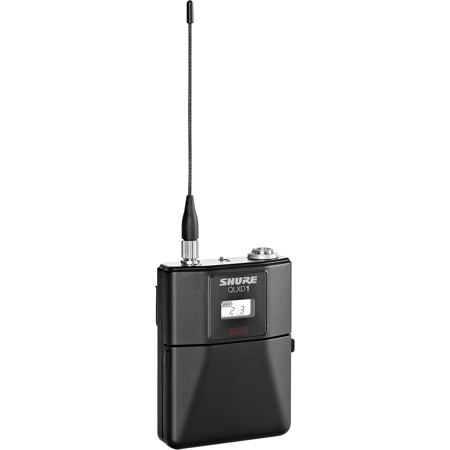

  • Shure QLXD1 Digital Wireless Bodypack Transmitter J50A: 572-616MHz
    Shure QLXD1 Digital Wireless Bodypack Transmitter J50A: 572-616MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver J50A: 572-616MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver J50A: 572-616MHz
  • +
  • Shure WL184M Supercardioid Condenser Lavalier Microphone with TA4F Connector Black
    Shure WL184M Supercardioid Condenser Lavalier Microphone with TA4F Connector Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Crystal-clear audio: The WL184 lavalier mic ensures top-notch sound for presentations.
  • Enjoy freedom with this wireless microphone system, perfect for dynamic speakers.
  • Reliable Shure wireless: Count on consistent performance for crucial live events.
  • Extended battery life: Get up to 9 hours with AA batteries, keeping you powered.
  • Secure AES 256 encryption: Confidently transmit audio with enhanced privacy features.
  • Mobile app control: Adjust settings remotely using the ShurePlus Channels application.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD14/84 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    1760

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    J50A:572 to 608 MHz
    614 to 616 MHz

  • RF Bandwidth

    44 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ShurePlus Channels
    Functionality: Remote Control

  • OS Compatibility

    Windows 10
    macOS 10.14

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Frequency Response

    20 Hz to 20 kHz

  • Network I/O

    1 xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Word Clock I/O

    No

  • USB/Lightning Connectivity

    No

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • DC Input Power

    12 VDC at 0.4A

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Auto-Level Control

    No

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Battery Type

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Housing

    Aluminum

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Supercardioid

  • Pad

    No

  • High-Pass Filter

    No

Microphone: Performance

Jump to...
  • Frequency Range

    50 Hz to 17 kHz

  • Maximum SPL

    129.5 dB SPL

  • Sensitivity

    -44.5 dBV/Pa

  • Dynamic Range

    102.5 dB

Microphone: Connectivity

Jump to...
  • Output Connector

    1xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' (1.22m)

Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    1.5 to 10 V

Microphone: Physical

Jump to...
  • Color

    Black

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • UPC Codes

    042406540063, 042406540407, 042406540537, 042406806534

About Shure QLXD14/84

- QLXD1 Wireless Bodypack Transmitter -
Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.


- QLXD4 Half-Rack Single Channel Digital Wireless Receiver -
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.


- WL184 Supercardioid Lavalier Microphone -
The Shure WL184 is a supercardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The super-cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4ft (1.2m) cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies.

Shure QLXD14/84 Features

  • QLXD1 Wireless Bodypack Transmitter
  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Over 120 dB of dynamic range - no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure SB900A lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (300 feet) line-of-sight operating range
  • 4-Pin male mini connector (TA4M)
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  • QLXD4 Half-Rack Single Channel Digital Wireless Receiver
  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4" Instrument output
  • Durable aluminum construction with brushed finish
  • WL184 Supercardioid Lavalier Microphone
  • Subminiature Profile: The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications
  • Super-Cardioid Polar Pattern: The super-cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback
  • Full Signal Reproduction: A wide frequency response and high SPL rating results in full, clear audio reproduction for speech
  • TA4-Female Connection: The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The WL184 lavalier mic ensures top-notch sound for presentations.
  • Enjoy freedom with this wireless microphone system, perfect for dynamic speakers.
  • Reliable Shure wireless: Count on consistent performance for crucial live events.
  • Extended battery life: Get up to 9 hours with AA batteries, keeping you powered.
  • Secure AES 256 encryption: Confidently transmit audio with enhanced privacy features.
  • Mobile app control: Adjust settings remotely using the ShurePlus Channels application.

What's in the box:

  • QLXD1 Wireless Bodypack Transmitter
  • QLXD4 Half-Rack Single Channel Digital Wireless Receiver
  • WL184 Supercardioid Lavalier Microphone
  • Shure 2 Year Limited Warranty
