The QLXD1 Wireless Bodypack Transmitter operates using two AA batteries, providing long-lasting power for extended use.
The QLXD1 is designed to be compatible with Shure wireless systems. For best performance, it should be used with a receiver that operates within the same frequency range and is designed to work with the QLXD1.
Yes, the QLXD1 is built to be durable and compact, making it an excellent choice for outdoor events as long as it is used within the range of the receiver and under conditions that do not expose it to moisture or extreme temperatures.
To sync the QLXD1 transmitter with a receiver, simply power on both devices, press the sync button on the receiver, and then align the IR ports of the transmitter and receiver until the sync is confirmed by the receiver's display.
The QLXD1 transmitter offers a generous range, but the exact maximum distance will depend on various factors such as environment, line of sight, and potential RF interference. For optimal performance, always maintain a clear path between the transmitter and receiver.
Review Summary
G50: 470-534MHz
H50: 534-598MHz
J50A: 572-616MHz
V50: 174-216MHz
X52: 902-928MHz
0 to 21 dB (in 3 dB steps)
4-Pin male mini connector (TA4M)
Unbalanced
1 M Ohm
8.5 dBV (7.5 Vpp) (1 kHz at 1% THD)
-120 dBV, A-weighted, typical (System Gain Setting >= +20)
SMA
1/4 wave
50 Ohm
< 200 kHz
Shure proprietary digital
1 mW or 10 mW
Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
Shure SB900A: Up to 10 hours
Alkaline: Up to 9 hours
Required, Not Included
Alkaline
AA
2
Cast Aluminum
3.38 x 2.55 x 0.90" (86 x 65 x 23mm)
Without Batteries: 4.86 oz (138g)
042406346719

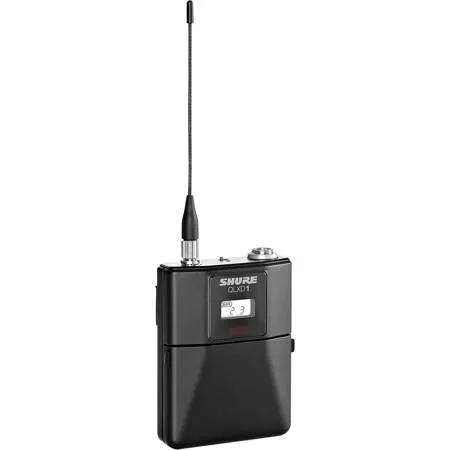

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
