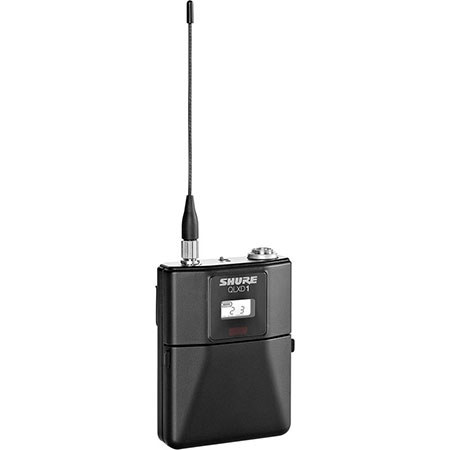

Shure QLXD1 Wireless Bodypack Transmitter, J50/572-636MHz
See all Shure items

Shure QLXD1 Wireless Bodypack Transmitter, J50/572-636MHz, 120dB of Dynamic Range, 50 ohms Impedance

SKU: SHQLXD1J50
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure QLXD1 Specifications

  • Frequency Range

    J50/572-636MHz

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime

    at 10 mW

  • Shure SB900: up to 10 hours

    Alkaline: up to 9 hours

  • Housing

    Cast aluminum

  • Audio Input Connector

    4-pin male mini connector (TA4M)

  • Audio Input Configuration

    Unbalanced

  • Audio Input Impedance

    1 mOhms

  • Audio Input Maximum Input Level

    8.5 dBV (7.5 Vpp) at 1 kHz at 1% THD

  • Preamplifier Equivalent Input Noise

    -120 dBV, A-weighted, typical

  • Audio Input System Gain Setting

    = +20

  • RF Output Connector

    SMA

  • RF Output Antenna Type

    1/4 wave

  • RF Output Impedance

    50 Ohms

  • RF Output Occupied Bandwidth

    <200 kHz

  • RF Output Modulation Type

    Shure proprietary digital

  • Power

    1 mW or 10 mW

  • Dimensions (H x W x D)

    86 x 65 x 23mm (3.38 x 2.55 x 0.90")

  • Weight

    Without Batteries: 138g (4.86oz)

About Shure QLXD1

Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the Shure QLXD1 Wireless Bodypack Transmitter (J50/572-636MHz) is ideal for wireless vocals and instruments in presentation spaces, music venues and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100m (330ft.) range. All metal construction ensures durability and a wide selection of compatible microphone.

Shure QLXD1 Features

  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Over 120 dB of dynamic range - no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of
  • continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (300 feet) line-of-sight operating range
  • 4-Pin male mini connector (TA4M)
  • Rugged metal construction
  • Detachable ¼ wave antenna
  • Frequency and power lockout

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 20 Hz to 20 kHz frequency range
  • Up to 9 hours continuous use
  • 4-Pin male mini connector (TA4M)
  • Rugged metal construction
  • Detachable e ¼ wave antenna
  • Frequency and power lockout

What's in the box:

  • Shure QLXD1 Wireless Bodypack Transmitter (J50/572-636MHz)
  • Bodypack Antenna
  • Bodypack Zipper Bag (Bodypack Systems)
  • Shure Warranty
