19% Off

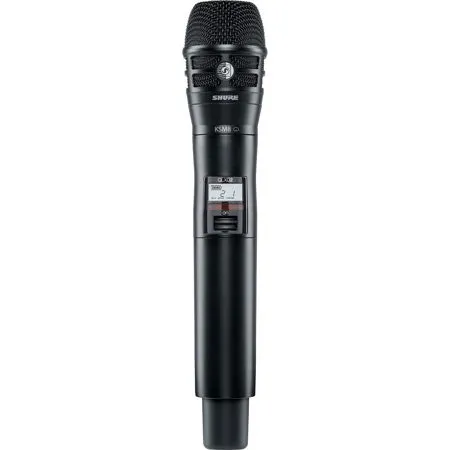

Shure QLXD2 Wireless Handheld Microphone Transmitter with KSM8 Capsule G50: 470-534MHz

SKU: SHQLX2K8BG50 MFR: QLXD2/K8B=-G50
Earn VIP Reward Points

Key Features

  • Experience superior sound with the Shure KSM8 capsule wireless microphone transmitter.
  • Enjoy reliable Shure wireless performance for clear audio in any professional setting.
  • Capture every nuance with the KSM8's dual-diaphragm, perfect for live vocals.
  • The QLXD2 handheld transmitter offers up to 9 hours of battery life with AA batteries.
  • Rugged aluminum build ensures durability, making this wireless mic ideal for touring.
  • Achieve exceptional clarity with low latency; this digital wireless system excels.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure QLXD2/KSM8 Specifications

General

General

Jump to...
  • Available Frequency

    G50: 470-534MHz
    H50: 534-598MHz
    J50A: 572-616MHz

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL (SM58), typical (1 kHz at 1% THD)

RF Output

Jump to...
  • Antenna Type

    Integrated Single Band Helical

  • Occupied Bandwidth

    < 200 kHz

  • Modulation Type

    Shure proprietary digital

  • Power

    1 mW or 10 mW

Battery

Jump to...
  • Battery

    Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime @ 10 mW

    Shure SB900A: Up to 10 hours
    Alkaline: Up to 9 hours

  • Battery Info

    Required, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Housing

    Machined Aluminum

  • Dimensions (L x Dia.)

    10.1 x 2" (256 x 51mm)

  • Weight

    Without Batteries: 12.2 oz (347g)

KSM8 Capsule

Jump to...
  • Housing

    Die-cast Aluminum with Paint or Brushed Nickel Finish

  • Cartridge Type

    Dual-Diaphragm Dynamic (moving coil)

  • Frequency Response

    40 to 16,000 Hz

  • Polar Pattern

    Cardioid

  • Output Impedance

    300 ohms

  • Sensitivity

    -51.5 dBV/Pa (2.66 mV) (at 1 kHz, open circuit voltage)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Connector

    Three-pin professional audio (XLR), male

  • Weight

    11.64 oz (330g)

  • UPC Code

    042406540445

About Shure QLXD2/KSM8

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

- KSM8 Cardioid Vocal Microphone -
With two ultra-thin diaphragms and groundbreaking reverse airflow technology, the KSM8 Dualdyne delivers unmatched control of proximity effect, presence peaks, and bleed and requires minimal EQ and processing.

Meticulously crafted for world-class vocal performances and presentations in elite venues, the KSM8 Dualdyne is the revolutionary dynamic microphone that only Shure could make.

Features
• Patented cartridge design features two ultra-thin diaphragms (one active and one passive) and a groundbreaking inverted airflow system
• Exceptional control of proximity effect greatly increases working distance without on-axis coloration
• Neutral mid- and high-frequency reproduction due to controlled proximity effect results in the most natural-sounding dynamic microphone available
• Neodymium magnet resides in a micro-injection mold of aerospace SoftMag material, maximizing the magnetic field for the highest output level
• Re-imagined Shure Pumping Pneumatic Shock Mount features tuned cavities, specific resistances, and precisely machined components fully integrated into the cartridge's acoustic properties, delivering exceptional rejection of handling noise without any loss of low-frequency response
• Patent-pending Diaphragm Stabilization System technology protects and stabilizes the active diaphragm from unwanted movement from plosives or impact
• Dent-resistant, hardened carbon-steel grille design lined with hydrophobic woven fabric provides exceptional water, plosive and wind protection

Shure QLXD2/KSM8 Features

  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsules
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range - no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure SB900B lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (330 ft.) line-of-sight operating range
  • Rugged metal construction
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior sound with the Shure KSM8 capsule wireless microphone transmitter.
  • Enjoy reliable Shure wireless performance for clear audio in any professional setting.
  • Capture every nuance with the KSM8's dual-diaphragm, perfect for live vocals.
  • The QLXD2 handheld transmitter offers up to 9 hours of battery life with AA batteries.
  • Rugged aluminum build ensures durability, making this wireless mic ideal for touring.
  • Achieve exceptional clarity with low latency; this digital wireless system excels.

What's in the box:

  • Shure QLXD2 Wireless Handheld Microphone Transmitter
  • KSM8 Capsule
  • Mic Clip
  • Battery Contact Cover
  • 2x AA Batteries
  • Zipper Bag
  • Shure 2 Year Limited Warranty
