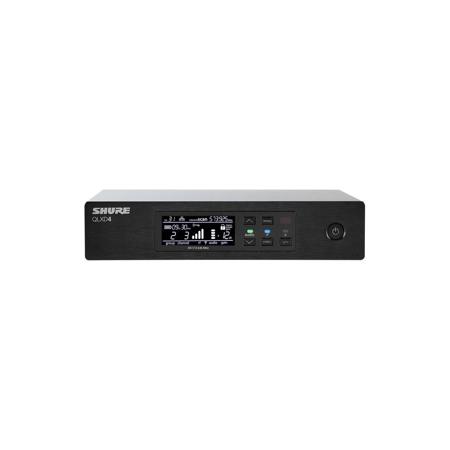

Shure QLXD4 Digital Wireless Receiver, X52: 902-928 MHz
See all Shure items

Shure QLXD4 Digital Wireless Receiver, X52: 902-928 MHz

SKU: SHQLXD4X52

This item is no longer available.

Recommended Alternatives

Shure AD4D: Picture 1 regular
Shure AD4D 2-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$4,676.00$3,741.00
Shure AD4Q-DC: Picture 1 regular
Shure AD4Q Quad-Channel Wireless Receiver with Redundant DC Power, A: 470-636MHz
$10,277.00$8,221.00
Shure AD4Q: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver without Accessories, A: 470 to 636MHz
$9,351.00$7,481.00
Shure AD4Q with Power: Picture 1 regular
Shure AD4Q 4-Ch. Digital Receiver with Power & RF Accessories, A: 470 to 636MHz
$9,841.00$7,873.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure QLXD4 Specifications

  • Frequency Band

    X52: 902-928 MHz

  • Housing

    Steel

  • RF Input

    Spurious Rejection: Greater than 80 dB, typical
    Connector Type: BNC
    Impedance: 50 ohms

  • Audio Output

    Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    Configuration: 1/4" (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -) Impedance 1/4" (6.35 mm), 100 ohms (50 ohms Unbalanced)
    XLR: 100 ohms
    Full Scale Output: 1/4" (6.35 mm), +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV Mic/Line Switch: 30 dB pad
    Phantom Power Protection: 1/4" (6.35 mm), Yes
    XLR: Yes

  • Networking

    Network Interface: Single Port Ethernet 10/100 Mbps
    Network Addressing Capability: DHCP or Manual IP address
    Maximum Ethernet Cable Length: 328' (100 m)

  • Power Requirement

    12 VDC at 0.4 A, supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.63 x 7.75 x 5.94" / 41.40 x 196.85 x 150.88mm

  • Weight

    1.71lbs / 0.78kg

  • UPC Code

    042406468664

About Shure QLXD4

Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

Shure QLXD4 Features

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • Automatic channel scan quickly finds the cleanest frequency
  • IR sync deploys selected frequency to transmitter
  • Ethernet networking provides streamlined setup across multiple receivers
  • Networked channel scan configures open frequencies for all connected receivers
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4" instrument output
  • Durable aluminum construction with brushed finish
  • Professional-grade rack hardware included
  • Compatible with Shure Wireless Workbench 6 control software
  • Remote monitoring and control from iOS devices via ShurePlus Channels app

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure QLXD4 Digital Wireless Receiver
  • PS23US Power Supply
  • 2x 1/2 Wave Antennas
  • 2x BNC Cables
  • 2x BNC Bulkhead Adapters
  • 5' Ethernet Cable
  • Rackmount Kit
  • Shure 2 Year Limited Warranty
