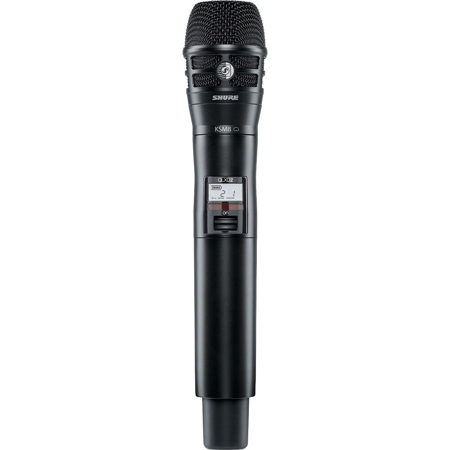

Shure QLXD2/K8B Handheld Wireless Mic Transmitter, V50: 174 to 216 MHz, Black
See all Shure items

Shure QLXD2/K8B Handheld Wireless Microphone Transmitter, V50: 174 to 216 MHz, Black

SKU: SHQXD2K8BV50

This item is no longer available.

Recommended Alternatives

Shure ADX2/K9B: Picture 1 regular
Shure ADX2 Handheld Transmitter with KSM9 Mic Capsule, G57: 470-616 MHz, Black
$2,781.00$2,503.00
Shure AD1-TA4: Picture 1 regular
Shure AD1 Wireless Bodypack Transmitter with TA4 Connector, G57: 470 to 616MHz
$978.00$880.00
Shure AD1-3-Pin LEMO: Picture 1 regular
Shure AD1 Bodypack Transmitter with 3-Pin LEMO Connector, G57: 470 to 616MHz
$1,059.00$953.00
Shure : Picture 1 regular
Shure AD2/N8 Digital Wireless Handheld Tx with N8 Mic Capsule, G57: 470-616MHz
$1,354.00$1,219.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure QLXD2 Specifications

  • Works with

    QLX-D Digital Wireless Systems.

  • RF Carrier Frequency Range

    V50: 174.120 to 215.820 MHz

  • Working Range

    328' (99.98m)

  • RF

    Tuning Step Size: 25 kHz, varies by region

  • Image Rejection

    Better than 70 dB, typical

  • RF Sensitivity

    -97 dBm at 10-5 BER

  • Latency

    Less than 2.9 ms

  • Frequency Response

    20 Hz to 20 kHz

  • Audio Dynamic Range

    System Gain at +10: Better than 120 dB, A-weighted, typical

  • Total Harmonic Distortion (THD)

    -12 dBFS input, System Gain at +10: Less than 0.1%

  • Polarity

    System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output

  • Operating Temperature Range

    0 to 122 deg. F (-18 to 50 deg. C)
    Note: Battery characteristics may limit this range

  • Storage Temperature Range

    -20 to 165 deg. F (-29 to 74 deg. C)
    Note: Battery characteristics may limit this range

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB900 rechargeable Li-ion or AA batteries 1.5 V

  • Battery Runtime

    At 10 mW
    Shure SB900: up to 10 hours
    Alkaline: up to 9 hours

  • Audio Input

    Configuration: unbalanced
    Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type

  • Maximum Input Level

    1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type

  • Capsule

    KSM8 Dualdyne cartridge

  • RF Output

    Antenna Type: Integrated single band helical
    Occupied Bandwidth: Less than 200 kHz
    Modulation Type: Shure proprietary digital
    Power: 1 mW or 10 mW (varies by region)

  • Housing

    Machined aluminum

  • Dimensions (LxDia.)

    10.1 x 1.5" (25.65 x 3.81cm)

  • Weight

    12.2 oz (345.86g) (without batteries)

About Shure QLXD2

With an interchangeable KSM8 microphone cartridge, the QLXD2/K8B Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. The QLXD2/K8B Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.

Shure QLXD2 Features

  • 24-Bit digital audio quality
  • Incredibly efficient RF spectrum usage
  • Quick syncing with a wireless receiver over IR at the push of a button
  • Clear, uninterrupted signal over the entire operating range
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range: no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • Rugged metal construction
  • Frequency and power lockout

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure QLXD2/KSM8 Handheld Wireless Transmitter
  • 2x AA Batteries
  • Battery Contact Cover
  • Microphone Clip
  • Shure 1 Year Limited Warranty
