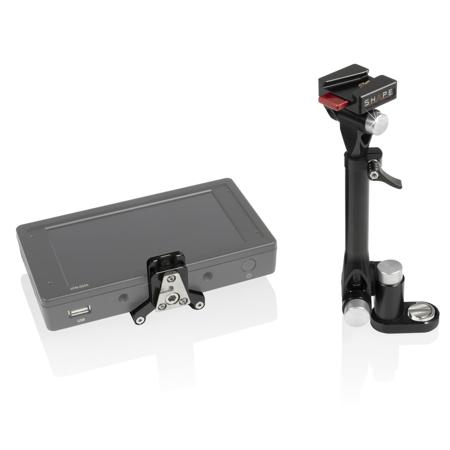

Shape Telescopic Push-Button Magic Arm with Mini Quick Release

Are you in search of a reliable solution to hold and manipulate your on-board monitor and other accessories Look no further than the Telescopic Push-Button Magic Arm with Mini Quick Release. This Canadian-made, CNC machined aluminum device is lightweight, weighing in at just 0.24 kg (0.53 lbs), and is designed to securely attach to your camera.

The bottom section of the magic arm is equipped with two stoppers and an ARRI compatible locking attachment mechanism. It also includes two interchangeable anti-rotating pins and one 3/8-16 D-ring screw (DRS38) to ensure a firm and secure connection to your camera.

The top section of the magic arm features a V-mount Mini Quick Release Lock Station, designed to mount our Mini Delta Monitor Plate (MILTA). The red quick release button is conveniently located and designed to prevent accidental release of your monitor or accessory.

The Mini Delta Monitor Plate (MILTA) is engineered with a Mini Delta Plate and a sliding bracket with two anti-rotating support pins to securely hold your monitor. The Mini Delta Plate (28mm x 24mm) can be installed in either direction on the bracket, allowing you to position the anti-rotating support pins at the front or back of the monitor. The two anti-rotating support pins, with a height of 11mm and diameter of 8mm, are designed to keep your monitor firmly in place.

The patented Push-Button Technology allows for precise and fast adjustments of the magic arm, enabling vertical and horizontal positioning adjustments of the monitor from the top or the bottom of the magic arm. The redesigned Push-Button is machined in a single block to ensure maximum efficiency of the mechanism, featuring two 19mm Push-Buttons at the bottom section of the arm and one 15mm Mini Push-Button at the top section for added flexibility.

The telescopic arm with a ratchet knob system allows for 360 degrees rotation and 66mm (2.6") extension. It's designed to be not too long to maximize strength, but just enough to allow comfortable manipulation of your monitor. The arm's minimum length configuration is 6.5" - 10.7", and with the telescopic extension, it can reach a maximum length configuration of 9.1" - 13.3".

In summary, the Telescopic Push-Button Magic Arm with Mini Quick Release is a robust, versatile, and user-friendly solution for all your monitor and accessory mounting needs.
