Shure SLXD124/85 Specifications

System: RF

System: RF

Jump to...
  • RF Carrier Frequency Range

    514-558MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THDA (weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Postiive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Propietary Digital

  • Power

    1 mW/10 mW

SLXD1: General

Jump to...
  • Housing

    PC/ABS

  • Battery Type

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD2 Handheld Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

SLXD2 Handheld Transmitter: RF Output

Jump to...
  • Maximum Input Level

    8.2dBV (2.57 Vrms, 7.27 Vpp)

  • Frequency Range

    514 to 558MHz (H55 Band)

  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Propietary Digital

SLXD2 Handheld Transmitter: General

Jump to...
  • Power

    1 mW/10 mW

  • Housing

    Aluminum

  • Battery Type

    Rechargeable Li-Ion or 1.5V AA batteries

  • Dimensions (Dia. x L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.2 oz (147g)

SLXD4: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35 mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

SLXD4: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    1.8 lbs (816g) without antennas

WL185 Microphone

Jump to...
  • Transducer

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 17000 Hz

  • Dynamic Range (Typical)

    102.5 dB

  • Sensitivity (1 Pa = 94 dB SPL)

    -45.5 dBV/Pa

  • Signal-to-Noise Ratio

    Output Noise: 28.0 dB SPL

  • Maximum Input Sound Level

    130.5 dB SPL

  • Power Requirements

    Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter.Output Impedance

  • Output Connectors

    TA4-Female

  • Pad

    No

  • Low Frequency Roll-Off

    No

  • Cable Length

    4' (1.2m)

  • UPC Code

    042406562799

About Shure SLXD124/85

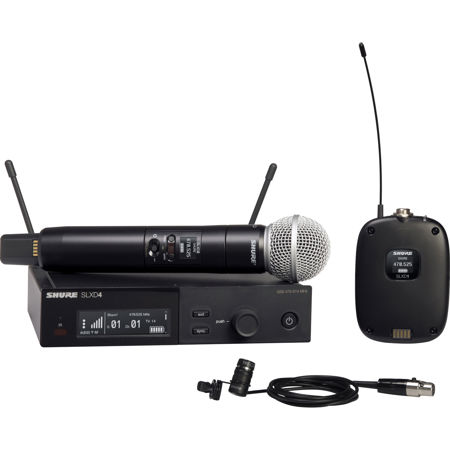

It's time to elevate your audio performance with the SLXD124/85 Single-Channel Digital Wireless Combo System. This system, featuring an SM58 Microphone Capsule and WL185 Lavalier Microphone, operates within the H55: 514-558MHz frequency range, ensuring a clear, interference-free connection.

The SLX-D Digital Wireless Systems are designed to enhance your performance, whether you're presenting, educating, praising, or entertaining. With this system, you can build a robust wireless installation that meets your ongoing demands, from day-long conferences to nighttime performances.

Experience the crystal-clear digital audio quality that SLX-D provides, boasting an impressive >120 dB dynamic range. As a product from the leader in digital wireless technology, this system ensures stable signals and high efficiency for a rock-solid, reliable performance.

The SLXD1 Digital Wireless Bodypack Transmitter, a key component of this system, delivers transparent, 24-bit digital audio and rock-solid RF performance. It features an extended 20 Hz to 20 kHz frequency range (microphone dependent), 120 dB dynamic range, and digital predictive switching diversity. With 44 MHz tuning bandwidth and 32 available channels per frequency band, this transmitter offers easy pairing with receivers over scan and IR sync.

The SLXD4 Digital Wireless Receiver, another crucial part of this system, mirrors the transmitter's features, providing transparent 24-bit digital audio, an extended 20 Hz to 20 kHz frequency range, and 120 dB dynamic range. It also boasts digital predictive switching diversity, 44 MHz tuning bandwidth, and 32 available channels per frequency band.

Both the transmitter and receiver are built to last, with the transmitter featuring ergonomic, durable plastic construction and the receiver boasting rugged metal construction.

Whether you're hosting an event, delivering a presentation, leading a worship service, or performing at a club, the SLXD124/85 Single-Channel Digital Wireless Combo System is designed to keep the show going. With up to 8 hours of use from either 2 AA batteries or optional Shure SB903 rechargeable batteries, you can rely on this system for all-day conferences and nighttime performances.

Choose the SLXD124/85 Single-Channel Digital Wireless Combo System for a reliable, high-quality audio solution that meets a wide range of applications.

Shure SLXD124/85 Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Product Documents

User Manual

Key Features

  • Operates within the H55: 514-558MHz frequency range for clear, interference-free connection
  • Provides crystal-clear digital audio quality with >120 dB dynamic range for optimal sound clarity

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD2 Handheld Transmitter with SM58 Microphone Capsule
  • SLXD4 Digital Wireless Receiver
  • WL185 Lavalier Microphone
  • 2x AA Batteries
  • Clothing Clip
  • Windscreen
  • Shure 2 Year Limited Warranty
