What applications is the SLXD124/85 Single-Channel Digital Wireless Combo System suitable for?

The SLXD124/85 Single-Channel Digital Wireless Combo System is suitable for a variety of applications, including live performances, recording studios, and broadcasting. It's also ideal for use in educational settings and houses of worship.

What is the frequency range of the SLXD124/85 Single-Channel Digital Wireless Combo System?

The SLXD124/85 Single-Channel Digital Wireless Combo System operates on a wide frequency range of 558-602MHz and 614-616MHz. This wide range allows it to operate optimally in different countries and regions.

What components are included in the SLXD124/85 Single-Channel Digital Wireless Combo System?

The SLXD124/85 Single-Channel Digital Wireless Combo System includes an SM58 Microphone Capsule, a WL185 Lavalier Microphone, a SLXD1 Digital Wireless Bodypack Transmitter, and a SLXD4 Digital Wireless Receiver.

What is the battery life of the SLXD124/85 Single-Channel Digital Wireless Combo System?

The SLXD124/85 Single-Channel Digital Wireless Combo System offers up to 8 hours of use from either 2 AA batteries or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

What type of audio quality does the SLXD124/85 Single-Channel Digital Wireless Combo System provide?

The SLXD124/85 Single-Channel Digital Wireless Combo System delivers crystal-clear digital audio quality with an impressive >120 dB dynamic range, ensuring superior sound transmission and reception.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD124/85 Specifications

System: RF

System: RF

Jump to...
  • RF Carrier Frequency Range

    558-602MHz and614-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THDA (weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Postiive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Propietary Digital

  • Power

    1 mW/10 mW

SLXD1: General

Jump to...
  • Housing

    PC/ABS

  • Battery Type

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD2 Handheld Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

SLXD2 Handheld Transmitter: RF Output

Jump to...
  • Maximum Input Level

    8.2dBV (2.57 Vrms, 7.27 Vpp)

  • Frequency Range

    514 to 558MHz (H55 Band)

  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Propietary Digital

SLXD2 Handheld Transmitter: General

Jump to...
  • Power

    1 mW/10 mW

  • Housing

    Aluminum

  • Battery Type

    Rechargeable Li-Ion or 1.5V AA batteries

  • Dimensions (Dia. x L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.2 oz (147g)

SLXD4: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35 mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

SLXD4: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    1.8 lbs (816g) without antennas

WL185 Microphone

Jump to...
  • Transducer

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 17000 Hz

  • Dynamic Range (Typical)

    102.5 dB

  • Sensitivity (1 Pa = 94 dB SPL)

    -45.5 dBV/Pa

  • Signal-to-Noise Ratio

    Output Noise: 28.0 dB SPL

  • Maximum Input Sound Level

    130.5 dB SPL

  • Power Requirements

    Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter.Output Impedance

  • Output Connectors

    TA4-Female

  • Pad

    No

  • Low Frequency Roll-Off

    No

  • Cable Length

    4' (1.2m)

  • UPC Code

    042406562782

About Shure SLXD124/85

For professionals seeking a reliable, high-quality audio solution, the SLXD124/85 Single-Channel Digital Wireless Combo System with SM58 Microphone Capsule and WL185 Lavalier Microphone is an exceptional choice. This advanced system, designed by the reputable brand Shure, is the epitome of professional audio equipment, offering unparalleled performance for a variety of applications, from live performances and recording studios to broadcasting.

This innovative system operates on a wide frequency range of 558-602MHz and 614-616MHz, ensuring optimal performance across different regions. Its versatility is further enhanced by the option of a rack-mount or table-top receiver, making it adaptable to different set-ups.

The SLXD124/85 Digital Wireless System ensures your performance is never compromised. Whether you're presenting, educating, or entertaining, this system provides a solid foundation for your wireless installation needs. It delivers crystal-clear digital audio quality with an impressive >120 dB dynamic range, ensuring your audience receives every word with absolute clarity.

The SLXD1 Digital Wireless Bodypack Transmitter, a part of this combo system, offers transparent 24-bit digital audio and an extended 20Hz to 20kHz frequency range. With a dynamic range of 120 dB and digital predictive switching diversity, it guarantees rock-solid RF performance.

The SLXD4 Digital Wireless Receiver, another integral part of this system, mirrors the transmitter's features, providing transparent 24-bit digital audio and an extended 20Hz to 20kHz frequency range. It also offers easy pairing of transmitters and receivers over scan and IR sync, ensuring a seamless audio experience.

This durable system is designed for all-day use, perfect for conferences and nighttime performances. It offers up to 8 hours of use from either 2 AA batteries or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

In summary, the SLXD124/85 Single-Channel Digital Wireless Combo System with SM58 Microphone Capsule and WL185 Lavalier Microphone is a professional, high-quality, and versatile audio solution, designed to meet the demands of any performance or presentation scenario.

Shure SLXD124/85 Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Product Documents

User Manual

Key Features

  • Wide frequency range of 558-602MHz and 614-616MHz for optimal performance across different regions
  • Versatile rack-mount or table-top receiver options for adaptable set-ups
  • Durable construction designed for all-day use, ideal for conferences and nighttime performances

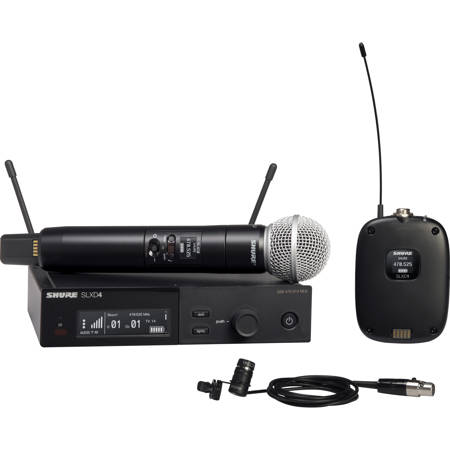

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD2 Handheld Transmitter with SM58 Microphone Capsule
  • SLXD4 Digital Wireless Receiver
  • WL185 Lavalier Microphone
  • 2x AA Batteries
  • Clothing Clip
  • Windscreen
  • Shure 2 Year Limited Warranty
