Shure SLXD14/153T 1-Channel Digital Wireless System w/MX153T Headworn Microphone G58: 470-514MHz

SKU: SHS14153TG58 MFR: SLXD14/153T-G58
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range of 328ft, ideal for dynamic performances.
  • The included MX153T earset microphone delivers exceptional sound quality in a discreet, comfortable design.
  • Benefit from easy setup and operation, making this digital wireless system great for any skill level.
  • Ensure long-lasting performance with up to 8 hours of battery life using the Shure SLXD14/153T system.
  • Confidently present with a secure digital signal, minimizing dropouts for uninterrupted audio clarity.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14/153T Specifications

System: RF

System: RF

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THD (A-weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1 Transmitter: Audio Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Connector

    4-Pin male mini connector (TA4M)

SLXD1 Transmitter: Rf Output

Jump to...
  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: General

Jump to...
  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD4 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4 Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4 Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4 Receiver: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

MX153 Microphone

Jump to...
  • Color

    Tan

  • Transducer Type

    Electret condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20 to 20,000 Hz

  • Sensitivity

    -41 dBV/Pa (9 mV) (open circuit voltage, @ 1 kHz, typical)

  • Maximum SPL (1 kHz at 1% THD)

    2500 Ohm load: 107 dB SPL
    1000 Ohm load: 107 dB SPL

  • Signal-To-Noise Ratio

    60 dB

  • Dynamic Range @ 1 kHz

    2500 Ohm load: 73 dB
    1000 Ohm load: 73 dB

  • Self-Noiser

    34 dB (equivalent SPL, A-weighted, typical)

  • Operating Temperature Ranger

    0 Degree F to 135 Degree F (-18 Degree C to 57 Degree C)

  • Polarity

    Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1

  • Power Requirements

    +1-5 V DC (500 microA max.)

  • Weight

    0.69 oz (19.76g)

  • UPC Code

    042406562645

About Shure SLXD14/153T

- SLX-D Digital Wireless Systems -
Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs


- SLXD1 Digital Wireless Bodypack Transmitter -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Operating range of 100 m (300 ft.)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
• Ergonomic and durable plastic construction


- SLXD4 Single-Channel Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Rugged metal construction


- MX153T Earset Headworn Microphone -
Earset headworn omnidirectional microphone delivers exceptional speech clarity and enhanced plosive protection with no proximity effect. It features CommShield technology to stop RF interference, 3 color options, 3 windscreens and a protective pouch.

The Shure Microflex MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A / V conferencing, and live sound reinforcement.

Features
• Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
• Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
• Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
• CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
• Kevlar reinforced soft flex cable
• Includes protective storage pouch, 3 windscreens, and collar clip

Shure SLXD14/153T Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range of 328ft, ideal for dynamic performances.
  • The included MX153T earset microphone delivers exceptional sound quality in a discreet, comfortable design.
  • Benefit from easy setup and operation, making this digital wireless system great for any skill level.
  • Ensure long-lasting performance with up to 8 hours of battery life using the Shure SLXD14/153T system.
  • Confidently present with a secure digital signal, minimizing dropouts for uninterrupted audio clarity.

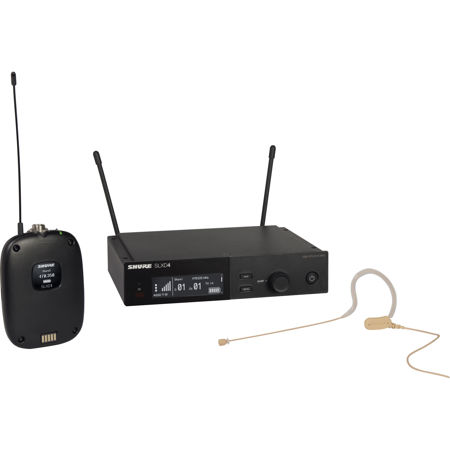

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD4 Digital Wireless Receiver
  • MX153 Earset Headworn Microphone (Tan)
  • 2x AA Batteries
  • 3x Windscreens
  • Collar Clip
  • Storage Pouch
  • Shure 2 Year Limited Warranty
