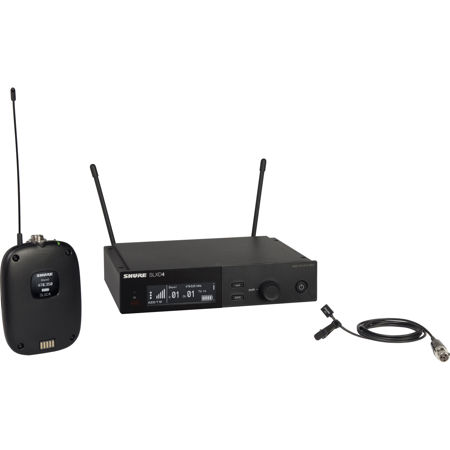

Shure SLXD14/93 Single-Channel Digital Wireless System with WL93 Lavalier Mic H55: 514-558MHz

SKU: SHS1493H55 MFR: SLXD14/93-H55
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Achieve professional sound quality with a wide 20 Hz-20 kHz frequency response for clear voice capture.
  • Enjoy freedom of movement with a reliable 328' (100m) working range for dynamic stage performances.
  • The SLXD14/93 system's digital wireless ensures secure connectivity, free from interference and dropouts.
  • Benefit from the WL93 lavalier microphone's discreet design, ideal for on-camera interviews and broadcasts.
  • Get up to 8 hours of continuous use with AA batteries, ensuring your wireless microphone is ready when you are.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14/93 Specifications

System: RF

System: RF

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THD (A-weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1 Transmitter: Audio Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Connector

    4-Pin male mini connector (TA4M)

SLXD1 Transmitter: Rf Output

Jump to...
  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: General

Jump to...
  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD4 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4 Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4 Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4 Receiver: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

WL93 Lavalier Microphone

Jump to...
  • Type

    Condenser (electret bias)

  • Frequency Response

    50 to 20,000 Hz

  • Polar Pattern

    Omnidirectional , uniform with frequency

  • Output Impedance

    3000 Ohm

  • Sensitivity

    Open circuit voltage: -38 dBV/Pa(13 mV)

  • Clipping Level at 1 kHz

    0.25 V at 120 dB

  • Maximum SPL

    120 dB

  • Dynamic Range (Maximum SPL, A-weighted)

    102 dB

  • Self Noise

    18 dB typical , A-Weighted

  • Signal-to-Noise Ratio

    76 dB at 94 dB SPL (IEC 651)

  • Polarity

    Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)

  • Power Requirements

    2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4);Current Drain 40 microA typical

  • Environmental Conditions

    Operating Temperature: 0 to 135 Degree F (-18 to 57 Degree C)
    Storage Temperature: -20 to 165 Degree F (-29 to 74 Degree C)

  • Cable

    Black, 4.17' (1.27m), attached , two-conductor , shielded , terminated by miniature

  • Connector Type

    TA4F, for Use with the Shure Wireless Transmitters

  • Housing

    Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille

  • Weight

    Microphone: 0.57 oz (16g)

  • UPC Code

    042406562560

About Shure SLXD14/93

- SLX-D Digital Wireless Systems -
Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs


- SLXD1 Digital Wireless Bodypack Transmitter -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Operating range of 100 m (300 ft.)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
• Ergonomic and durable plastic construction


- SLXD4 Single-Channel Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Rugged metal construction


- WL93 Lavalier Microphone -
Omnidirectional miniature lavalier microphone provides full, clear sound in speech applications, like broadcast presenting and speeches. Features smooth frequency response, controlled low-frequency roll off, and versatile mounting accessories.

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable.

All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.

All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

Features
• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency rolloff reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern

Shure SLXD14/93 Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless lavalier microphone system, perfect for presentations.
  • Achieve professional sound quality with a wide 20 Hz-20 kHz frequency response for clear voice capture.
  • Enjoy freedom of movement with a reliable 328' (100m) working range for dynamic stage performances.
  • The SLXD14/93 system's digital wireless ensures secure connectivity, free from interference and dropouts.
  • Benefit from the WL93 lavalier microphone's discreet design, ideal for on-camera interviews and broadcasts.
  • Get up to 8 hours of continuous use with AA batteries, ensuring your wireless microphone is ready when you are.

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD4 Digital Wireless Receiver
  • WL93 Lavalier Microphone
  • 2x AA Batteries
  • Mounting Block with Attached Tie Bar
  • Sew-On Mounting Bracket
  • Zippered Pouch
  • Black Acoustic Windscreen
  • Shure 2 Year Limited Warranty
