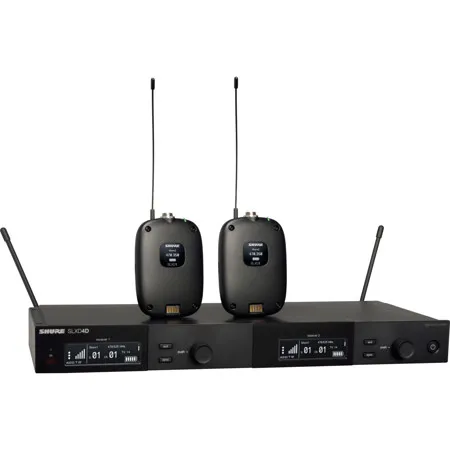

Shure SLXD14D 2-Ch Digital Wireless Instrument System with 2x WA305 Cable H55: 514-558MHz

SKU: SHS14DH55 MFR: SLXD14D-H55
Earn VIP Reward Points

Key Features

  • Experience freedom with this Shure wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio with a wide 20 Hz-20 kHz frequency response, capturing every nuance of your instrument.
  • The SLXD14D dual-channel receiver offers reliable digital wireless, minimizing dropouts during critical moments.
  • Achieve a robust 328' wireless range, giving you the liberty to move around stage without signal loss.
  • Includes premium WA305 instrument cables for a secure, noise-free connection to your guitar or bass.
  • Get up to 8 hours of continuous use with AA batteries, ensuring your wireless microphone lasts through gigs.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14D Specifications

System: RF

System: RF

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THD (A-weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1 Transmitter: Audio Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Connector

    4-Pin male mini connector (TA4M)

SLXD1 Transmitter: Rf Output

Jump to...
  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: General

Jump to...
  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD4D Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4D Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4D Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4D Receiver: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

WA305 Premium Instrument Cable

Jump to...
  • Cable

    1/4" Locking Instrument Cable

  • Compatibility

    Shure GLX-D Digital, ULX-D and QLX-D Digital Wireless Systems

  • UPC Code

    042406637756

About Shure SLXD14D

- SLX-D Digital Wireless Systems -

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs


- SLXD1 Digital Wireless Bodypack Transmitter -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Operating range of 100 m (300 ft.)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
• Ergonomic and durable plastic construction


- SLXD4D Dual-Channel Digital Wireless Receiver -
The SLXD4D Dual Receiver is the convenient, streamlining choice for confident speech presentation and vocal performance from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design in a convenient dual, full-rack configuration, the SLXD4D saves space and accessories for any size of multi-system configuration A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Rugged metal construction


- WA305 Premium Instrument Cable with Locking TA4F Connector -
Premium materials, including Neutrik straight 1/4" (6.3 mm) and locking REAN TA4F connectors, provide durability and lower cable handling noise and sets the WA305 apart for electric instruments, especially electric guitar and bass. The straight cable is ideal for Strat-type guitars with recessed jacks.

The threaded collar on the WA305 is compatible for use with the following bodypacks: GLXD1, GLXD1+, QLXD1, ULXD1-TQG, AD1-TQG, ADX1-TQG, SLXD1

Features
• 3.0' (0.9m) rubber-coated instrument cable reduces handling noise and provides road-worthy durability
• Premium straight 1/4" (6.3 mm) gold-plated Neutrik connector offer unmatched fidelity and corrosion-free performance
• Threaded-collar locking REAN TA4F connector securely connects your bodypack for uninterrupted signal

Shure SLXD14D Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience freedom with this Shure wireless instrument microphone system, perfect for dynamic stage performances.
  • Enjoy crystal-clear audio with a wide 20 Hz-20 kHz frequency response, capturing every nuance of your instrument.
  • The SLXD14D dual-channel receiver offers reliable digital wireless, minimizing dropouts during critical moments.
  • Achieve a robust 328' wireless range, giving you the liberty to move around stage without signal loss.
  • Includes premium WA305 instrument cables for a secure, noise-free connection to your guitar or bass.
  • Get up to 8 hours of continuous use with AA batteries, ensuring your wireless microphone lasts through gigs.

What's in the box:

  • 2x SLXD1 Bodypack Transmitter
  • SLXD4D Receiver
  • 2x WA305 Instrument Cable
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
