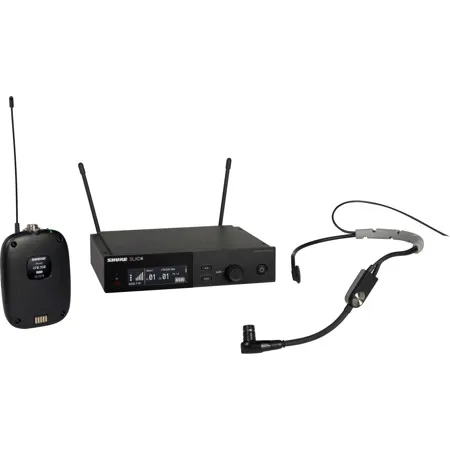

Shure SLXD14/SM35 Single-Channel Digital Wireless System with SM35 Headworn Mic G58: 470-514MHz

SKU: SHS14SM35G58 MFR: SLXD14/SM35-G58
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presenters.
  • Enjoy freedom of movement with a reliable wireless range up to 328 feet for dynamic performances.
  • The SM35 headset microphone delivers exceptional sound quality with a comfortable, secure fit.
  • Achieve professional sound with a wide 20 Hz - 20 kHz frequency response for clear vocals.
  • Benefit from easy setup and operation, making this digital wireless system ideal for any venue.
  • Rely on Shure's durability; this wireless microphone system is built to last through countless events.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14/SM35 Specifications

System: RF

System: RF

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THD (A-weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD1 Transmitter: Audio Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Connector

    4-Pin male mini connector (TA4M)

SLXD1 Transmitter: Rf Output

Jump to...
  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: General

Jump to...
  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD4 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4 Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4 Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4 Receiver: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

SM35 Headworn Microphone

Jump to...
  • Type

    Electret Condenser

  • Frequency Response

    40 Hz to 20,000 Hz

  • Polar Pattern

    Unidirectional (Cardioid)

  • Output Impedance @ 1 kHz

    2400 Ohm

  • Audio Output Level

    -59.0 dBV/Pa

  • Signal-To-Noise Ratio @ 1 kHz

    55 dB

  • Maximum SPL 1000 Ohm load, @ 1% THD

    153.0 dB

  • Dynamic Range @ 1 kHz, 1000 Ohm load

    114.0 dB

  • Equivalent Output Noise

    39 dB Typical, A-Weighted

  • Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • Cable

    45" (1.1m)

  • Connector

    TA4F

  • Weight

    2.53 oz (72g)

  • UPC Code

    042406562485

About Shure SLXD14/SM35

- SLX-D Digital Wireless Systems -

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs


- SLXD1 Digital Wireless Bodypack Transmitter -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Operating range of 100 m (300 ft.)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
• Ergonomic and durable plastic construction


- SLXD4 Single-Channel Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Rugged metal construction


- SM35 Headset Microphone -
The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations, or arena tours.

Feature
• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design allows for optimized placement that further improves source isolation
• Lightweight and low-profile form enables comfortable, long-wearing use
• TA4F (TQG) connector is compatible with any Shure wireless bodypack
• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
• Tailored frequency response refined for clear, crisp vocal reproduction
• Included in BLX and GLX-D wireless systems, renowned for their ease of use and reliable performance
• Legendary Shure precision engineering for durability and performance

Shure SLXD14/SM35 Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presenters.
  • Enjoy freedom of movement with a reliable wireless range up to 328 feet for dynamic performances.
  • The SM35 headset microphone delivers exceptional sound quality with a comfortable, secure fit.
  • Achieve professional sound with a wide 20 Hz - 20 kHz frequency response for clear vocals.
  • Benefit from easy setup and operation, making this digital wireless system ideal for any venue.
  • Rely on Shure's durability; this wireless microphone system is built to last through countless events.

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD4 Digital Wireless Receiver
  • SM35 Headworn Microphone
  • 2x AA Batteries
  • Windscreens
  • Microphone Clip
  • Preamp
  • Shure 2 Year Limited Warranty
