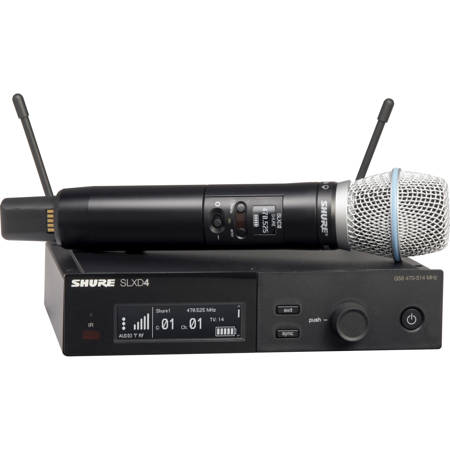

Shure SLXD24/B87A 1-Channel Digital Wireless Vocal System w/Beta 87A Mic Capsule G58: 470-514MHz

SKU: SHS24B87AG58 MFR: SLXD24/B87A-G58
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for vocals.
  • Enjoy freedom of movement with a reliable wireless range for dynamic stage performances.
  • The Beta 87A capsule delivers exceptional sound quality, capturing every nuance of your voice.
  • Achieve professional-grade sound for live events, presentations, and studio recordings.
  • Benefit from the handheld microphone's durable design, built to withstand rigorous use.
  • Simple setup and intuitive operation make this wireless system ideal for all skill levels.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Slavik K : By recommendation of professional singer

Reviews about this item

Review Summary

Shure SLXD24/B87A Specifications

System: RF

System: RF

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB (typical)

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    3.2 ms

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    120 dB @1% THD (A-weighted, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD4 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4 Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4 Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4 Receiver: General

Jump to...
  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

SLXD2 Handheld Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2dBV (2.57 Vrms, 7.27 Vpp)

SLXD2 Handheld Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2 Handheld Transmitter: General

Jump to...
  • Housing

    Aluminum

  • Battery

    Rechargeable Li-Ion or 1.5V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (Dia. x L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.2 oz (147g)

Beta 87A Microphone Capsule

Jump to...
  • Cartridge Type

    Electret Condenser

  • Frequency Response

    50 to 20,000 Hz

  • Connector

    Three-pin professional audio (XLR), male

  • Polar Pattern

    Supercardioid

  • Output Impedance

    150 ohms

  • Sensitivity

    -52.5 dBV/Pa (2 mV) 1 Pascal=94 dB SPL (at 1kHz, open circuit voltage)

  • Maximum SPL

    140.5 dB (1 kHz at 1% THD, 1k ohms load)

  • Signal-to-Noise Ratio

    70.5 dB (referenced at 94 dB SPL at 1 kHz)
    S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

  • Dynamic Range (at 1 kHz, 1 k ohms load)

    117 dB

  • Clipping Level

    -6 dBV (0.5 V) (1 kHz at 0.25% THD, 1k ohms load)

  • Self Noise

    23.5 dB typical (typical, equivalent SPL, A-weighted)

  • Power Requirements

    11 to 52 Vdc phantom (1.2 mA)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Weight

    7.3 oz (207g)

  • UPC Code

    042406558853

About Shure SLXD24/B87A

- SLX-D Digital Wireless Systems -

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs


- SLXD2/B87A Handheld Digital Wireless Transmitter with BETA 87A Microphone Capsule -
The SLXD2/B87A, featuring the Beta87A interchangeable microphone capsule is the choice for confident speech presentation and vocal performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

BETA 87A Vocal Microphone
Add some studio-grade clarity to the live mix. Designed to capture brighter vocals with sparkling accuracy, the BETA 87A brings more crisp to the concert. And the increased presence will have everyone singing your praises.

The Shure BETA87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the Beta 87A combines superb performance with the ruggedness needed for touring and field production.

The Beta 87A features a controlled low-frequency roll-off that compensates for proximity effect and prevents the "boomy" sound often associated with close pick-up. The characteristic Shure presence rise brightens the upper midrange. The tight supercardioid pattern, with null points at approximately 125 degrees, provides maximum isolation from other vocalists or instruments while offering minimal off-axis coloration. The Beta 87A operates on phantom power.

How It Works
One of the world's best-selling, single-element, condenser mic, the BETA 87A puts singers on a pedestal. Tailored frequency response concentrates on the upper midrange to raise vocal presence in the mix. So voices cut through clearly and resonate deeply with your audience.

Why It's Better

Set your singing apart
The supercardioid pattern provides maximum isolation of your voice, giving you the chance to shine.

Never overpowered
Get right up on the mic without overwhelming the sound. Electronically controlled low-end roll-off keeps your bass from blasting over the mix.

Resists rattle
The advanced cartridge shock-mount system lets you handle the mic a little harder while absorbing any mechanical noise.

Features
• Smooth frequency response with gradual presence rise
• Highly consistent supercardioid polar pattern provides superior gain-before-feedback
• Electronic low-frequency roll-off compensates for proximity effect
• Wide dynamic range (117 dB) and low distortion characteristics
• Very low susceptibility to RFI and electromagnetic hum
• Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise
• Built-in pop filter reduces undesirable wind and breath sounds
• Legendary Shure quality and reliability


- SLXD4 Single-Channel Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Rugged metal construction

Shure SLXD24/B87A Features

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for vocals.
  • Enjoy freedom of movement with a reliable wireless range for dynamic stage performances.
  • The Beta 87A capsule delivers exceptional sound quality, capturing every nuance of your voice.
  • Achieve professional-grade sound for live events, presentations, and studio recordings.
  • Benefit from the handheld microphone's durable design, built to withstand rigorous use.
  • Simple setup and intuitive operation make this wireless system ideal for all skill levels.

What's in the box:

  • SLXD2 Digital Wireless Handheld Transmitter with Beta 87A Microphone Capsule
  • SLXD4 Digital Wireless Receiver
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
