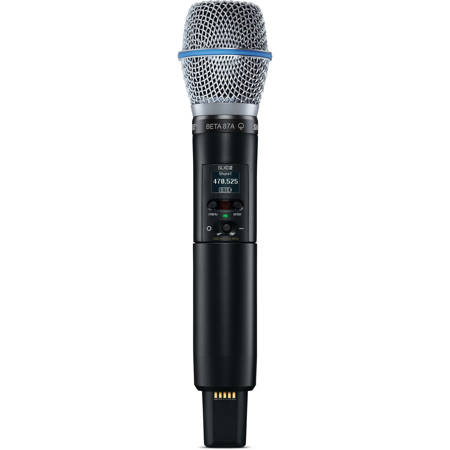

Shure SLXD2/B87A Handheld Digital Wireless Transmitter with Beta 87A Mic Capsule H55: 514-558MHz

SKU: SHS2B87AH55 MFR: SLXD2/B87A=-H55
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Shure wireless handheld transmitter, perfect for vocal performances.
  • The Beta 87A microphone capsule delivers a supercardioid pattern, minimizing background noise for clear sound.
  • Enjoy reliable Shure digital wireless connectivity for seamless performance on stage or in presentations.
  • This wireless microphone system operates in the 470-514MHz range, ensuring a stable, interference-free signal.
  • Get up to 8 hours of continuous use with the included AA batteries, so you can perform without interruption.
  • The rugged aluminum housing ensures durability, making this wireless transmitter ideal for rigorous touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD2/B87A Specifications

SLXD2 Handheld Transmitter: Audio Input

SLXD2 Handheld Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2dBV (2.57 Vrms, 7.27 Vpp)

SLXD2 Handheld Transmitter: RF Output

Jump to...
  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2 Handheld Transmitter: General

Jump to...
  • Housing

    Aluminum

  • Battery

    Rechargeable Li-Ion or 1.5V AA batteries

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (Dia. x L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.2 oz (147g)

Beta 87A Microphone Capsule

Jump to...
  • Cartridge Type

    Electret Condenser

  • Frequency Response

    50 to 20,000 Hz

  • Connector

    Three-pin professional audio (XLR), male

  • Polar Pattern

    Supercardioid

  • Output Impedance

    150 ohms

  • Sensitivity

    -52.5 dBV/Pa (2 mV) 1 Pascal=94 dB SPL (at 1kHz, open circuit voltage)

  • Maximum SPL

    140.5 dB (1 kHz at 1% THD, 1k ohms load)

  • Signal-to-Noise Ratio

    70.5 dB (referenced at 94 dB SPL at 1 kHz)
    S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

  • Dynamic Range (at 1 kHz, 1 k ohms load)

    117 dB

  • Clipping Level

    -6 dBV (0.5 V) (1 kHz at 0.25% THD, 1k ohms load)

  • Self Noise

    23.5 dB typical (typical, equivalent SPL, A-weighted)

  • Power Requirements

    11 to 52 Vdc phantom (1.2 mA)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Weight

    7.3 oz (207g)

  • UPC Code

    042406559737

About Shure SLXD2/B87A

The SLXD2/B87A, featuring the Beta87A interchangeable microphone capsule is the choice for confident speech presentation and vocal performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.


- BETA 87A Vocal Microphone -
Add some studio-grade clarity to the live mix. Designed to capture brighter vocals with sparkling accuracy, the BETA 87A brings more crisp to the concert. And the increased presence will have everyone singing your praises.

The Shure BETA87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the Beta 87A combines superb performance with the ruggedness needed for touring and field production.

The Beta 87A features a controlled low-frequency roll-off that compensates for proximity effect and prevents the "boomy" sound often associated with close pick-up. The characteristic Shure presence rise brightens the upper midrange. The tight supercardioid pattern, with null points at approximately 125 degrees, provides maximum isolation from other vocalists or instruments while offering minimal off-axis coloration. The Beta 87A operates on phantom power.

How It Works
One of the world's best-selling, single-element, condenser mic, the BETA 87A puts singers on a pedestal. Tailored frequency response concentrates on the upper midrange to raise vocal presence in the mix. So voices cut through clearly and resonate deeply with your audience.

Why It's Better

Set your singing apart
The supercardioid pattern provides maximum isolation of your voice, giving you the chance to shine.

Never overpowered
Get right up on the mic without overwhelming the sound. Electronically controlled low-end roll-off keeps your bass from blasting over the mix.

Resists rattle
The advanced cartridge shock-mount system lets you handle the mic a little harder while absorbing any mechanical noise.

Features
• Smooth frequency response with gradual presence rise
• Highly consistent supercardioid polar pattern provides superior gain-before-feedback
• Electronic low-frequency roll-off compensates for proximity effect
• Wide dynamic range (117 dB) and low distortion characteristics
• Very low susceptibility to RFI and electromagnetic hum
• Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise
• Built-in pop filter reduces undesirable wind and breath sounds
• Legendary Shure quality and reliability

Shure SLXD2/B87A Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • Operating range of 100 m (300 ft.)
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
  • Rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with the Shure wireless handheld transmitter, perfect for vocal performances.
  • The Beta 87A microphone capsule delivers a supercardioid pattern, minimizing background noise for clear sound.
  • Enjoy reliable Shure digital wireless connectivity for seamless performance on stage or in presentations.
  • This wireless microphone system operates in the 470-514MHz range, ensuring a stable, interference-free signal.
  • Get up to 8 hours of continuous use with the included AA batteries, so you can perform without interruption.
  • The rugged aluminum housing ensures durability, making this wireless transmitter ideal for rigorous touring.

What's in the box:

  • Shure SLXD2 Handheld Digital Wireless Transmitter
  • Beta 87A Microphone Capsule
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
