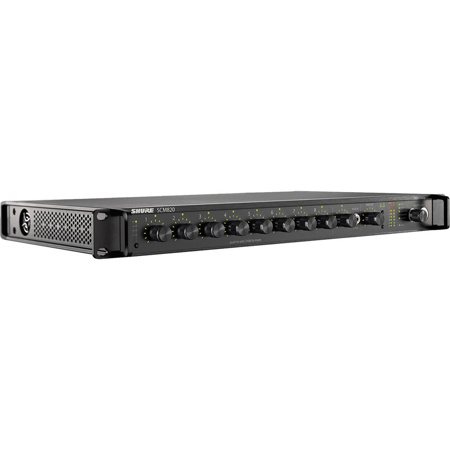

Shure SCM820 8-Channel Digital IntelliMix Automatic Mixer
See all Shure items

Shure SCM820 8-Channel Digital IntelliMix Automatic Mixer

SKU: SHSCM820
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-07-02T08:34:10

Rated 5 out of 5

Shure

Shipped fast and undamaged

RUDOLPH W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure SCM820 Specifications

  • Analog Performance: CH I/P Monitoring

    Configuration: Active Balanced
    Impedance: 5 kOhms
    Clipping Level: Line (-0): +20dBV, Mic (+26): -6dBV, Mic (+46): -26dBV

  • Analog Performance: Phantom Power

    48 VDC, selectable per channel, 14 mA maximum

  • Analog Performance: AUX Input

    Configuration: Stereo, Unbalanced
    Impedance: 10 kOhms
    Clipping Level: +10 dBV

  • Analog Performance: O/P Connectors

    Mix Output
    Configuration: Active Balanced
    Impedance: 350 ohm
    Clipping Level: Line (+/-0): +20dBV, Aux (-20): 0dBV, Mic (-46): -26dBV (Analog)

  • Analog Performance: Output

    Direct
    Configuration: Impedance Balanced
    Impedance: 150ohm
    Max Output Level: +20dBV

  • Analog Performance: Headphone Output

    1/4" (6.35 mm) TRS, 100 mW, 350 Ohms, dual mono (will drive stereo phones)

  • Analog Performance: Connector

    Block

  • Signal Processing: Converter

    24-bit, 48 kHz, 113 dB dynamic range typical

  • Signal Processing: Internal Processing

    32-bit

  • Signal Processing: Latency

    Analog to Analog
    Single Device: 0.51 ms
    In a Link Group: 0.76 + 4TN

  • Signal Processing: Processing

    Channel Input: Gain Adjustment Range: -110 to +18dB
    Low Cut: Corner: 25Hz to 320Hz, Slope: 12dB/octave
    High Shelf: Corner: 5kHz, Slope: 12dB/octave, Gain: -18 to +18dB
    Mix Output: Gain Adjustment Range: -110 to +18dB
    Low Shelf: Corner: 25Hz to 20kHz, Slope: 12dB/octave, Gain: -18 to +18dB
    High Shelf: Corner: 25Hz to 20kHz, Slope: 12dB/octave, Gain: -18 to +18dB
    6-Band PEQ: 25Hz to 20kHz, +/-18 dB, Bandwidth: 1/70 to 4 octaves

  • Signal Processing: Ratio

    Limiter: 10:1

  • Signal Processing: Threshold

    -50 to -2 dBFS

  • Signal Processing: Attack

    0.1ms

  • Signal Processing: Decay

    100ms

  • Networking: Interface

    Single Port, 10/100 Mbps Ethernet

  • Networking: Cable Requirements

    Cat 5e or higher, shielded, 328' (100 m) maximum

  • Networking: Addressing Capability

    DHCP, link-local, static

  • Dynamic Range

    Analog to Analog: 110 dB (20 Hz to 20 kHz, A-weighed, typical)

  • Output Noise

    Output Pad
    Line (+0): -90dBV
    Aux (-20): -110dBV
    Mic (-46): -135dBV
    at 20Hz to 20kHz, A-Weighted, one channel open

  • Equivalent Input Noise

    Input Gain Setting
    Line (+0): -93dBV
    Mic (+26): -118dBV
    Mic (+46): -130dBV
    at 20Hz to 20kHz, A-Weighted, input terminated with 150 Ohms, digital gain at +18dB

  • THD + N

    < 0.05 %
    1 kHz, +4 dBu out, mix output (Master) at +0 dB

  • Common Mode Rejection Ratio

    > 70 dB
    150 Ohms balanced source, at 1 kHz

  • Polarity

    Non-inverting, any input to any output

  • Housing

    Steel; Extruded aluminum

  • Power Requirements

    100 to 240 VAC, 50 to 60 Hz, 1 A

  • Operating Temperature Range

    0 to 145deg.F (-18 to +63deg.C)

  • Storage Temperature Range

    -20 to +165deg.F (-29 to +74deg.C)

  • Dimensions (H x W x D)

    1.7 x 19.0 x 11.4" (43.18 x 482.6 x 289.56mm)

  • Weight

    12.0 lbs (5.44 kg)

About Shure SCM820

Shure SCM820 Features

  • IntelliMix technology: Delivers seamless automatic mixing and reduced background noise through dynamic channel gating and attenuation
  • IntelliMix technology: NAT (Noise Adaptive Threshold) continuously adjusts the activation threshold for opening a channel
  • IntelliMix technology: Number of Open Microphones Attenuation (NOMA) determines the amount of gain attenuation for a mix output when the number of active microphones changes
  • IntelliMix technology: Last Mic Lock-On (LMLO) keeps the most recently activated microphone open until another microphone is activated
  • IntelliMix technology: MaxBus ensures that only one channel is opened per sound source, reducing comb filtering for clear and intelligible speech
  • IntelliMix technology: IntelliMix Modes offer five different mixer mode presets of reliable automixing styles (Classic, Smooth, Extreme, Custom, or Manual) to quickly tailor the mix for a particular application
  • Enhanced I/O Support: DB25 or logic-enabled block connector models available, each with 8 inputs
  • Enhanced I/O Support: Per-channel direct outputs allow the SCM820 to be used as an insert processor
  • Enhanced I/O Support: Mix A and B outputs with selectable mic or line level connect to a sound reinforcement system, mixing console, or recording device
  • Enhanced I/O Support: Dual mixer operation enables routing of independent automixes to the mix A and B outputs, allowing two entirely different mixes to result from the same set of inputs
  • Enhanced I/O Support: Aux inputs on both the front and back panel easily connect to media players
  • Enhanced I/O Support: 1/4" (6.35 mm) stereo headphone output for channel solo and mix monitoring
  • Comprehensive Control: Channel control knobs allow quick adjustment of gain, limiter and EQ settings and solo/mute functions on input channels
  • Comprehensive Control: Output mix controls and meters enable front-panel master gain and limiter control as well as signal monitoring
  • Comprehensive Control: LED meter rings display input audio or IntelliMix gain levels for each channel
  • Comprehensive Control: Browser-based control software delivers comprehensive software control, monitoring, routing and configuration of all signals and settings and adds a parametric 8-band EQ
  • Advanced Networking: Standard Ethernet or Dante digital networked audio configurations available
  • Advanced Networking: Dante-equipped models enable multi-channel audio networking over Ethernet
  • Advanced Networking: Dante upgrade card available for standard Ethernet models
  • Advanced Networking: Dante virtual soundcard license included to connect a computer to a Dante network for recording, playback and internet calling between Dante-equipped devices
  • Advanced Networking: Link Dante-equipped SCM820 mixers to form large automixes of up to 12 units (96 channels of audio)
  • Advanced Networking: Control system compatible (AMX, Crestron)
  • Digital Feedback Reduction: Two channels of patented Shure DFR (Digital Feedback Reduction)
  • Digital Feedback Reduction: Assignable to input channels and mix outputs
  • Digital Feedback Reduction: Automatic feedback detection and filter deployment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • IntelliMix technology
  • Enhanced I/O Support
  • Comprehensive Control
  • Advanced Networking
  • Digital Feedback Reduction

What's in the box:

  • Shure SCM820 8-Channel Digital IntelliMix Automatic Mixer
  • Hardware Kit
  • Ethernet Cable
  • Power Cable
  • USB Flash Drive
  • User Guide
  • Shure 2 Year Limited Warranty
