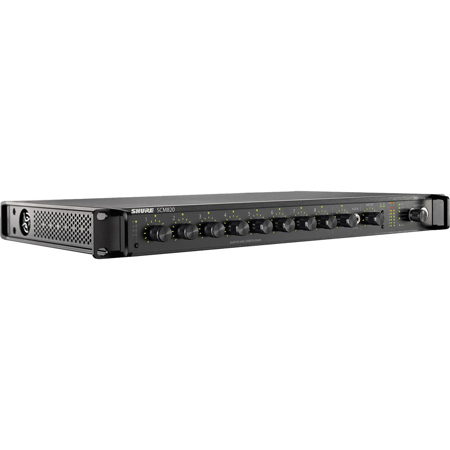

Shure SCM820-DAN Digital IntelliMix Automatic Mixer
See all Shure items

Shure SCM820-DAN Digital IntelliMix Automatic Mixer

SKU: SHSCM820DN
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-07-02T08:34:10

Rated 5 out of 5

Shure

Shipped fast and undamaged

RUDOLPH W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure SCM820 Specifications

  • Dynamic Range

    Analog-to-Analog: 110dB
    Analog-to-Dante, Dante-to-Analog: 113dB (20Hz to 20kHz, A-weighed, typical)

  • Output Noise (mix / direct output)

    Output Pad
    Line (+0): -90dBV
    Aux (-20): -110dBV
    Mic (-46): -135dBV (2 Hz to 20 kHz, A-Weighted, one channel open)

  • Equivalent Input Noise

    Input Gain Setting
    Line (+0): -93dBV
    Mic (+26): -118dBV
    Mic (+46): -130dBV (20Hz to 20kHz, A-Weighted, input terminated with 150O, digital gain at +18 dB)

  • THD+N

    <0.05% (1kHz, +4dBu out, mix output (MASTER) at +0dB)

  • Common Mode Rejection Ratio

    >70dB (150Ohms balanced source, at 1kHz)

  • Polarity

    Non-inverting, any input to any output

  • Housing

    Steel
    Extruded aluminum

  • Power Requirements

    100 to 240 V AC, 50-60Hz, 1A

  • Channel Input

    Configuration: Active Balanced
    Impedance: 5kOhms
    Clipping Level: Line (-0): +20dBV; Mic (+26): -6dBV; Mic (+46): -26dBV

  • Phantom Power

    48 V DC, selectable per channel, 14 mA max
    Mic level settings only. Phantom power automatically switched off in LINE position

  • Aux Input

    Configuration: Stereo, Unbalanced
    Impedance: 10 kOhms
    Clipping Level: +10dBV

  • Mix Output

    Configuration: Active Balanced
    Impedance: 350Ohms
    Clipping Level: Line (½0): +20dBV; Aux (-20): 0dBV; Mic (-46): -26dBV

  • Direct Output

    Configuration: Impedance Balanced
    Impedance: 150Ohms
    Max Output Level: +20dBV

  • Headphone Output

    6.35 mm (1/4") TRS, 100mW, 350Ohms, dual mono (will drive stereo phones)

  • AD/DA Converter

    24-bit, 48 kHz, 113 dB dynamic range typical

  • Internal Processing

    32-bit

  • Latency

    Analog to Analog
    Single Device: 0.51 ms, In a Link Group 0.76 + 4TN
    Analog to Dante
    Single Device: 0.29 ms, In a Link Group 0.54 + 4TN
    Dante to Analog
    Single Device: 0.28 + TN, In a Link Group 0.53 + 5TN
    Dante to Dante
    Single Device: 0.06 + TN, In a Link Group 0.31 + 5TN (From channel input to mix output, Estimated Nominal, ½0.1 ms)

  • Channel Input Processing

    Gain Adjustment Range: -110 to +18 dB
    Low Cut: Corner: 25 Hz to 320 Hz, Slope: 12dB/octave
    High Shelf: Corner: 5 kHz, Slope: 12 dB/octave, Gain: -18 to +18dB

  • Mix Output Processing

    Gain Adjustment Range: -110 to +18 dB
    Low Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: -18 to +18 dB
    High Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: -18 to +18 dB
    6-Band PEQ: 25 Hz to 20 kHz, ½18 dB, Bandwidth: 1/70 to 4 octaves Limiter: Ratio: 10:1
    Threshold: -50 to -2 dBFS Attack: 0.1 ms Decay: 100 ms

  • Network Interface

    Dual Port, Gigabit Ethernet, Dante digital audio

  • Cable Requirements

    Cat 5e or higher, shielded, 100m maximum

  • Network Addressing Capability

    DHCP, link-local, static

  • Operating Temperature Range

    0 to 145 deg. F / -18 to 63 deg. C

  • Storage Temperature Range

    -20 to 165 deg. F / -29 to 74 deg. C

  • Dimensions (H x W x D)

    1.7 x 19.0 x 11.4" / 43.18 x 482.60 x 289.56mm

  • Weight

    12.0lbs / 5.44kg

About Shure SCM820

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • IntelliMix technology
  • Enhanced I/O Support
  • Comprehensive Control
  • Advanced Networking
  • Digital Feedback Reduction

What's in the box:

  • Shure SCM820 8-CH Digital IntelliMix Automatic Mixer
  • Hardware Kit
  • Ethernet Cable
  • Power Cable
  • USB Flash Drive
  • User Guide
  • Shure 2 Year Limited Warranty
